Home >> Lexus >> 2006 >> ES 330 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Remote Control Mirror without Driving Position Memory >> Notes

Remote Control Mirror without Driving Position Memory: Notes

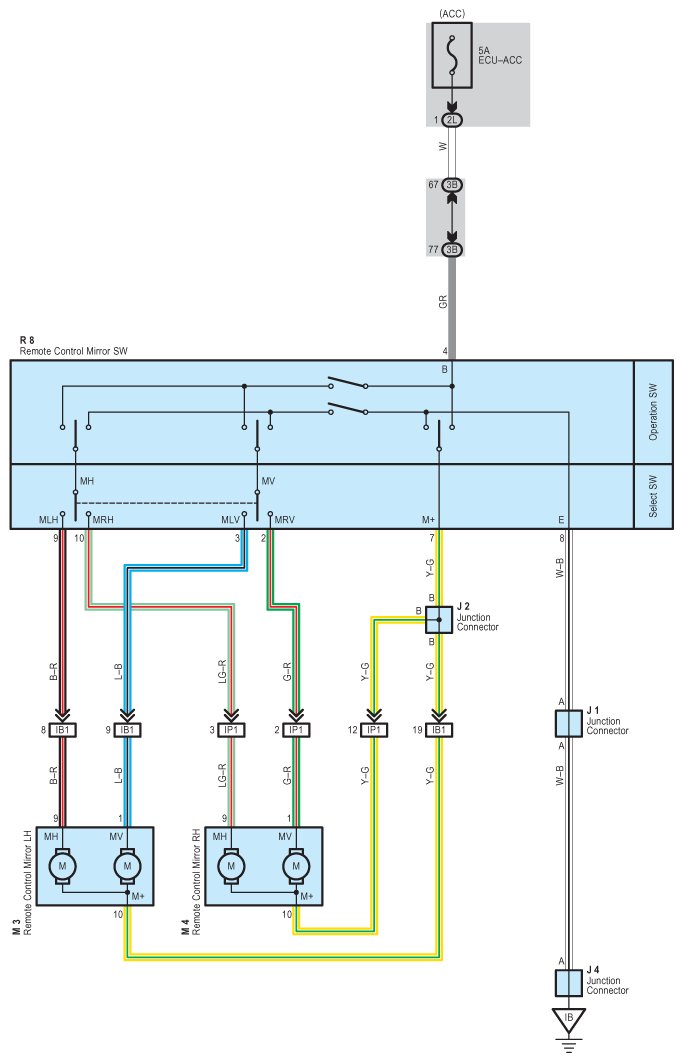

Fig 1: Remote Control Mirror Without Driving Position Memory - Wiring Diagram

G08930087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
