Knock Sensor, Intake Manifold (3MZ-FE): Components

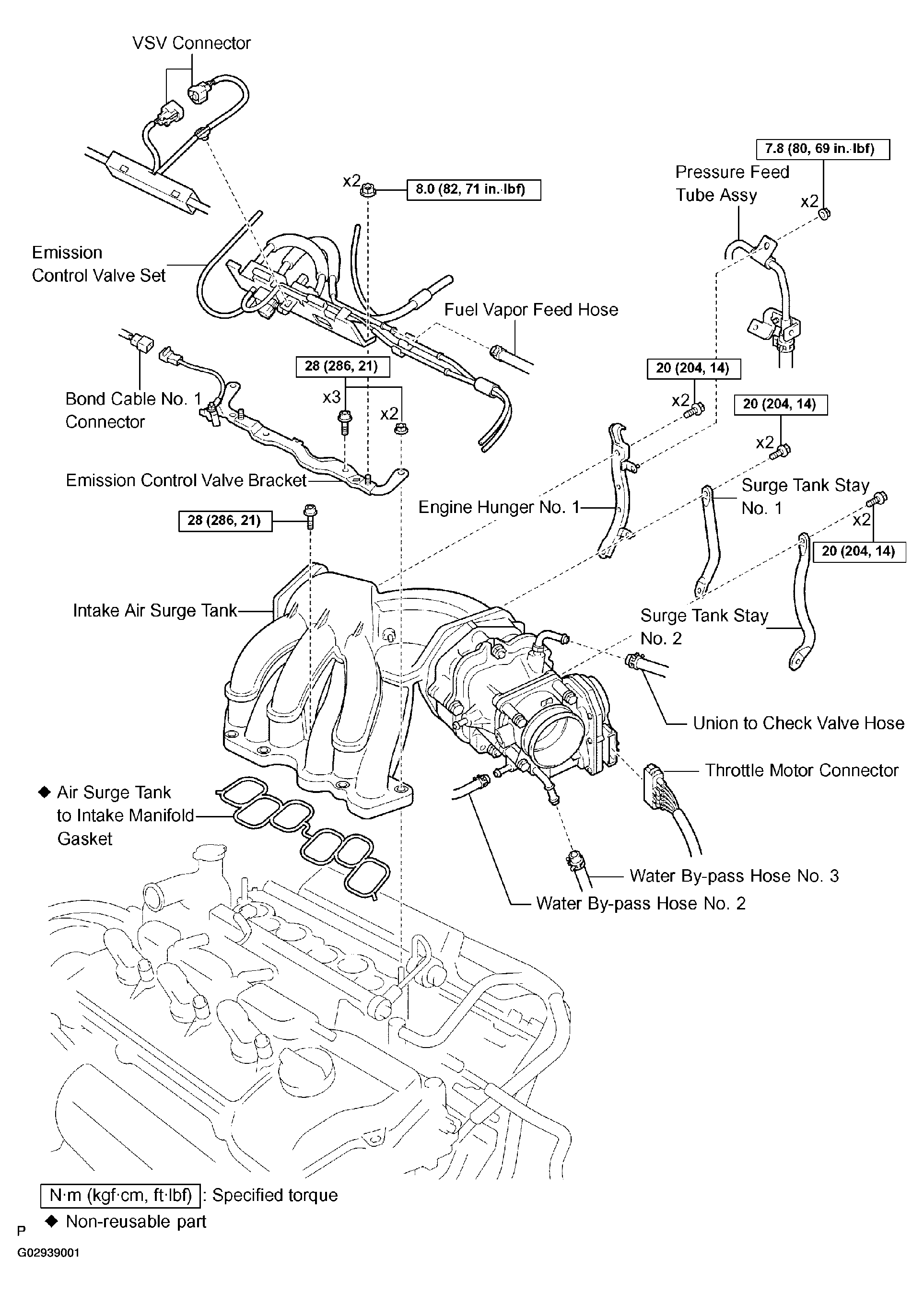

Fig 1: Identifying Partial Knock Sensor Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

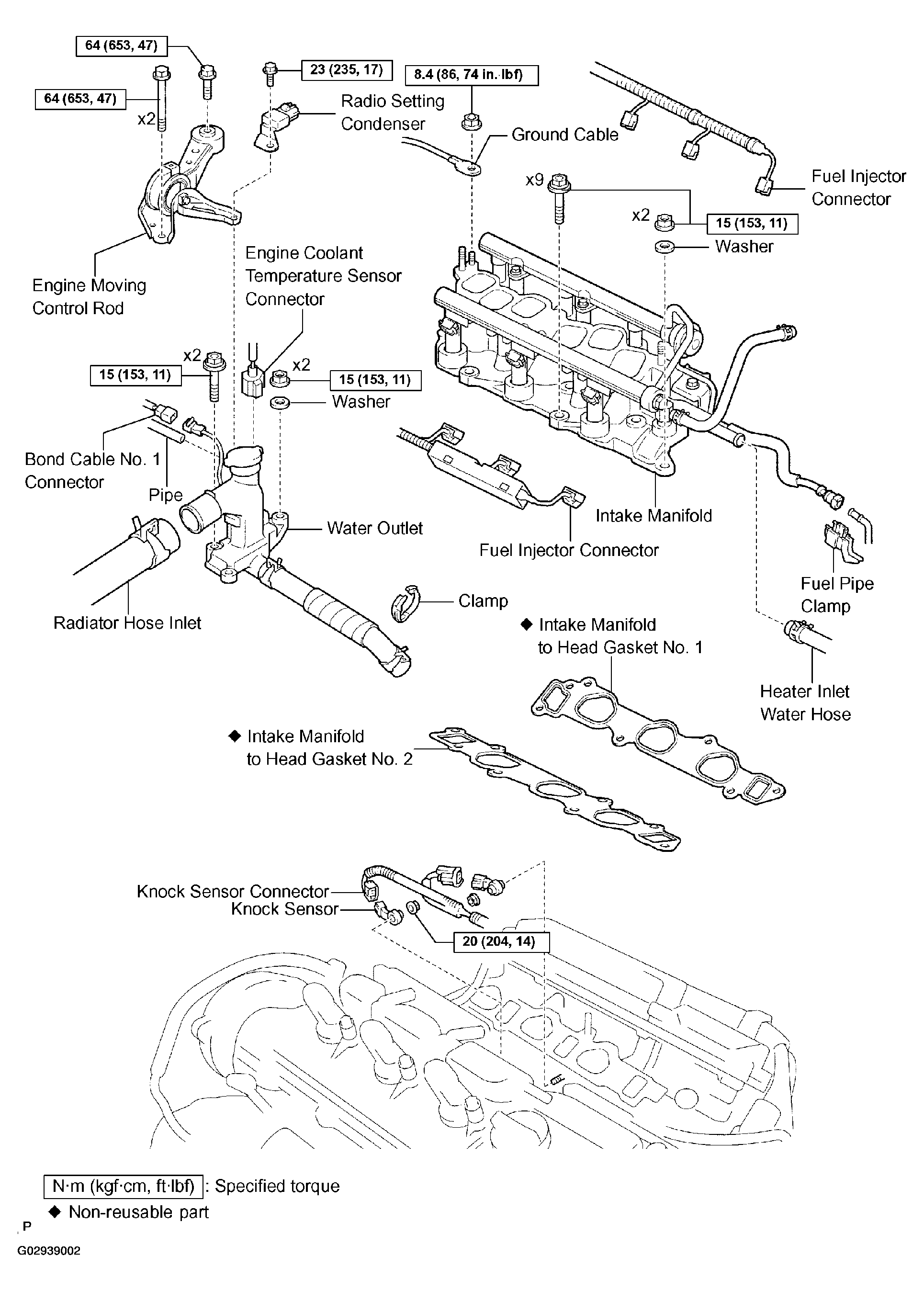

Fig 2: Identifying Partial Knock Sensor Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Partial Knock Sensor Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
