Power Window Control System
>>
Parts Location
Parts Location

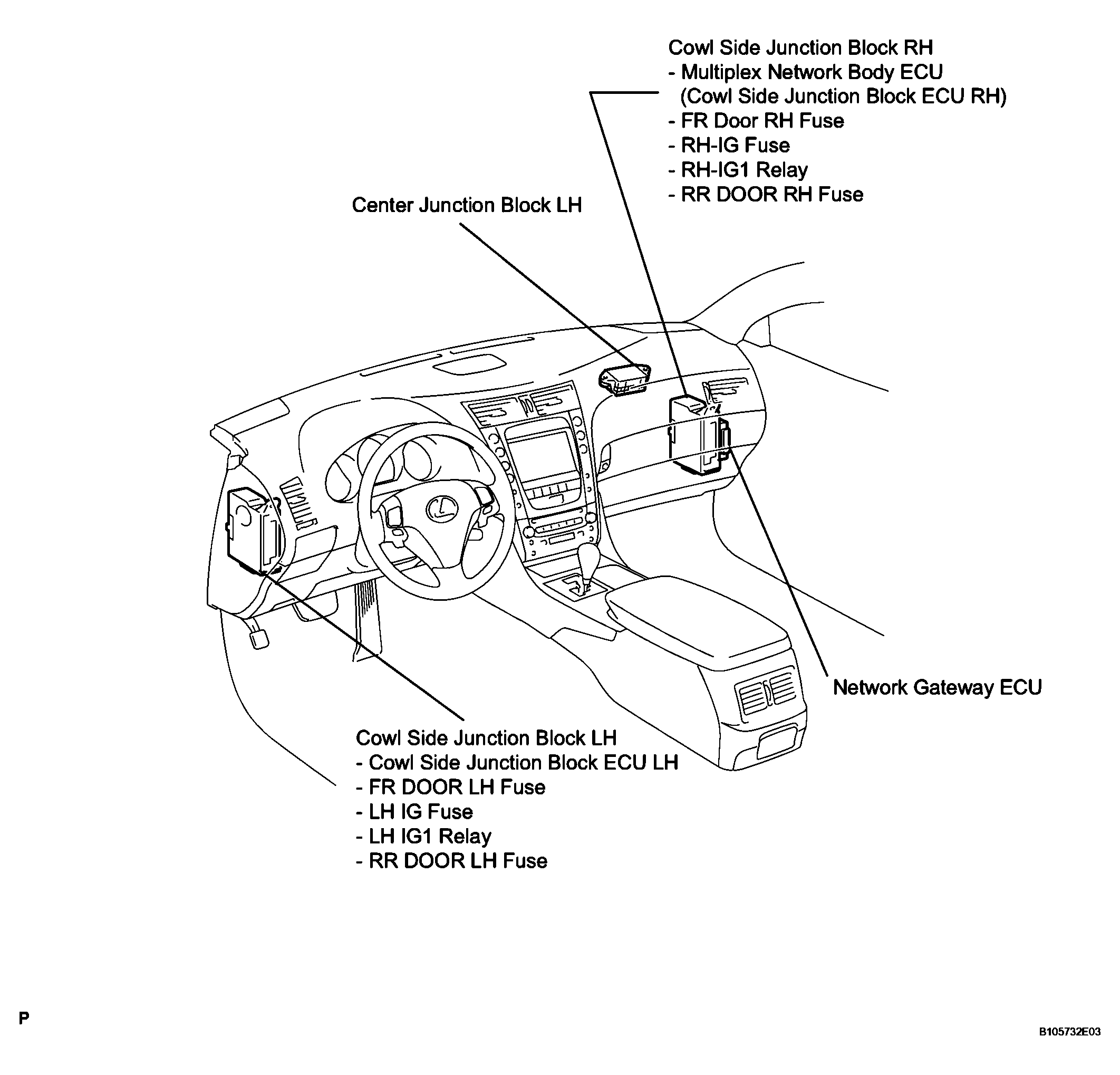

Fig 1: Locating Power Window Control System Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

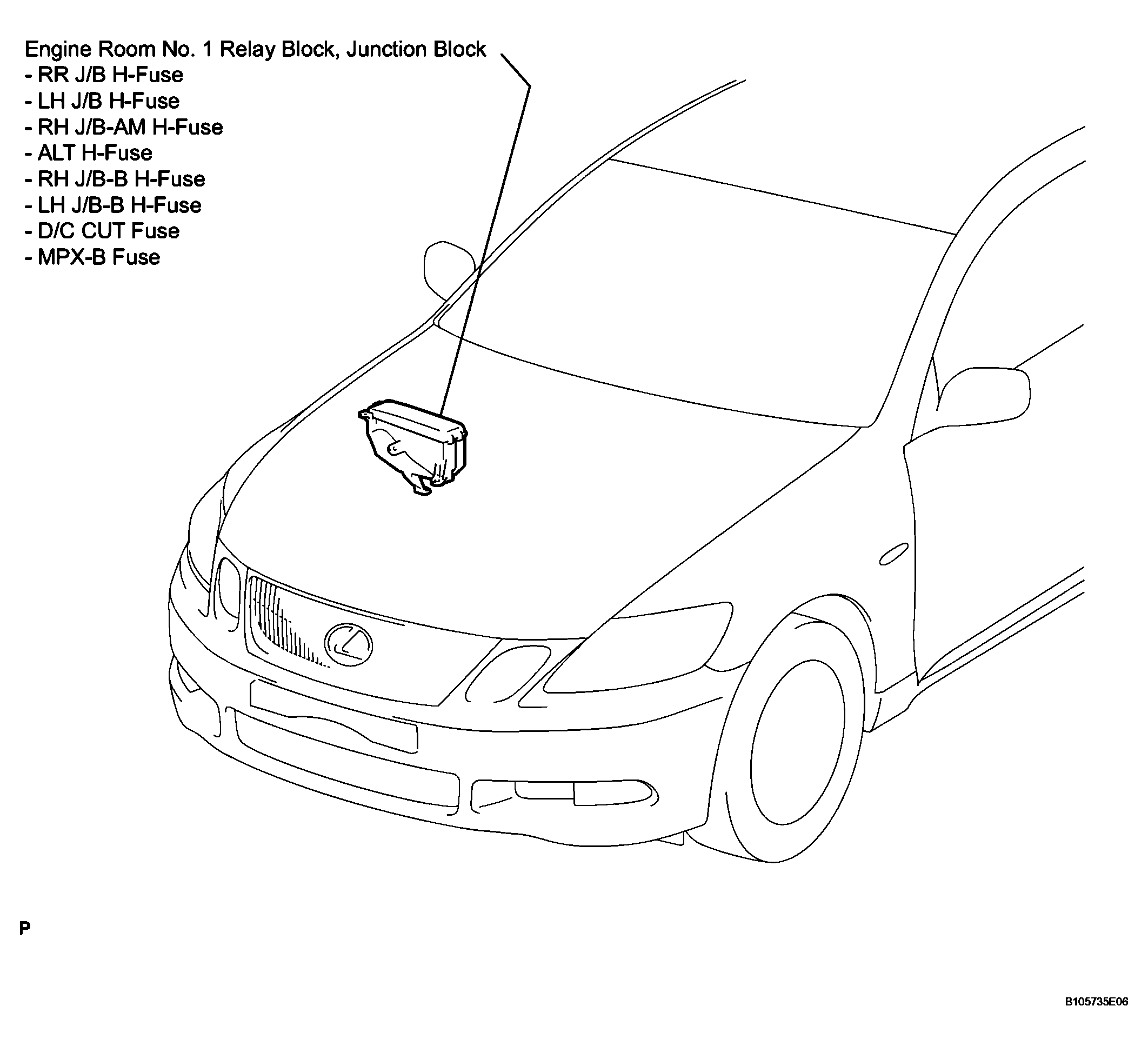

Fig 2: Locating Power Window Control System Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

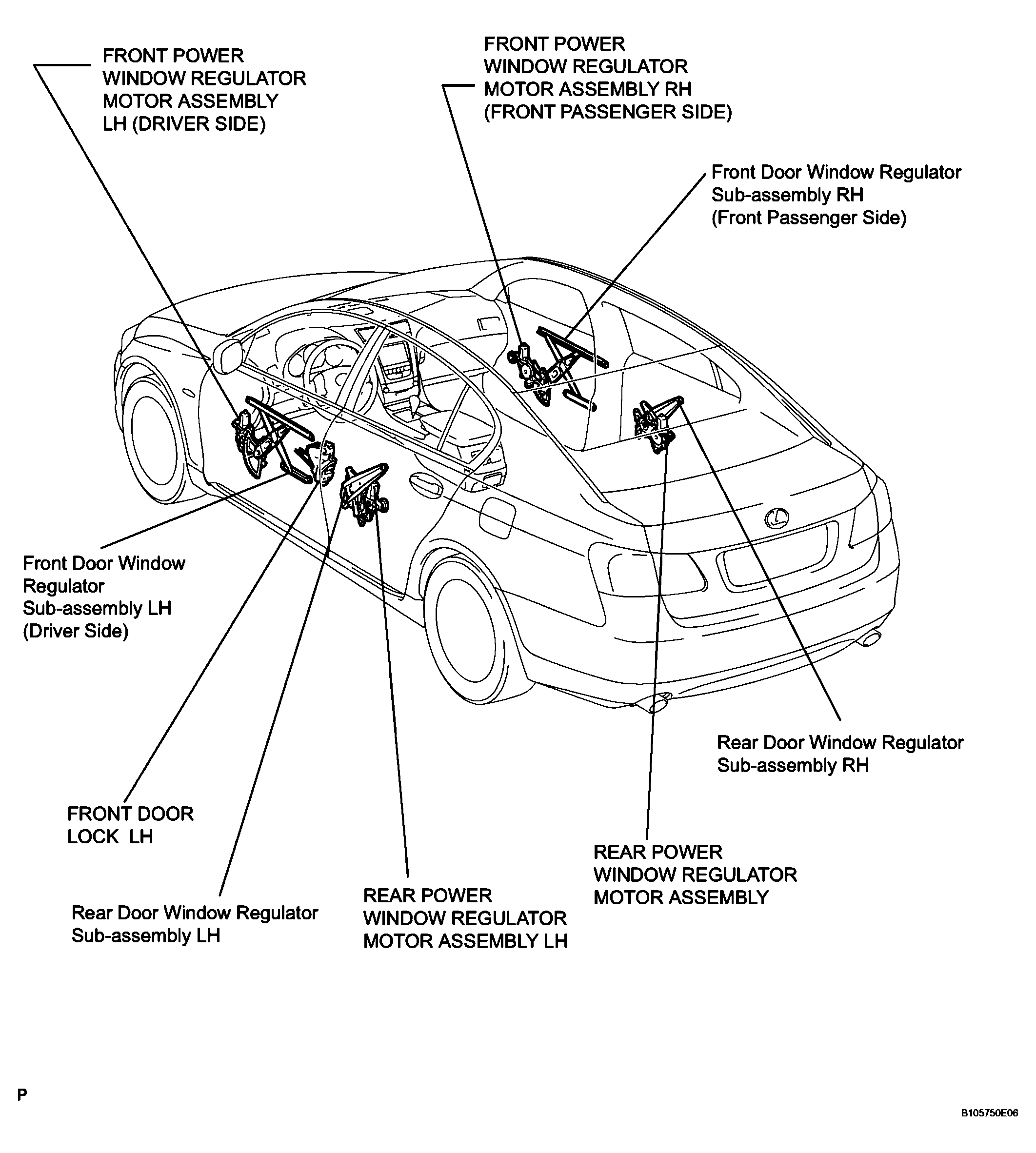

Fig 3: Locating Power Window Control System Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

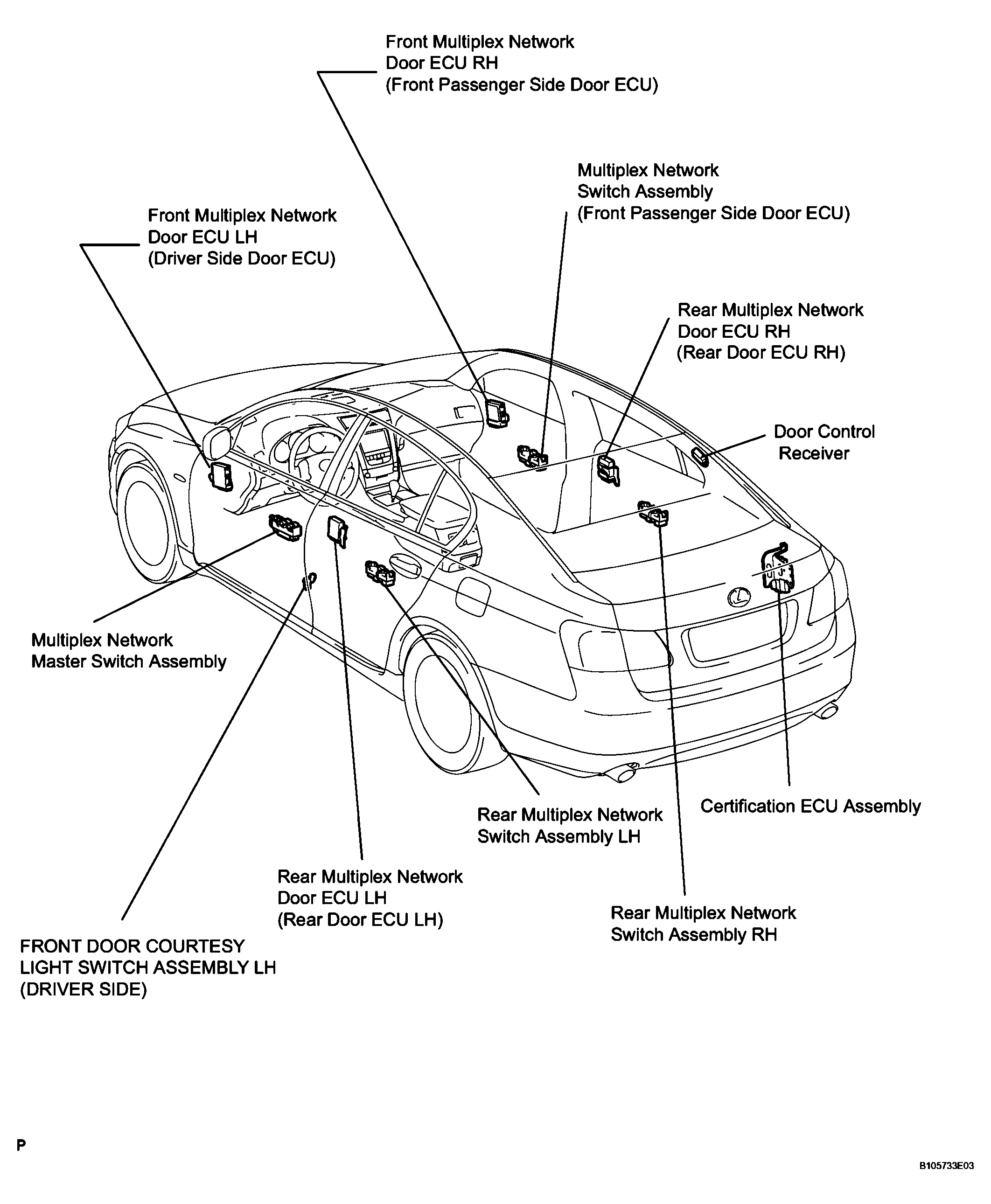

Fig 4: Locating Power Window Control System Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
