Brake Pedal Stroke Sensor: Components

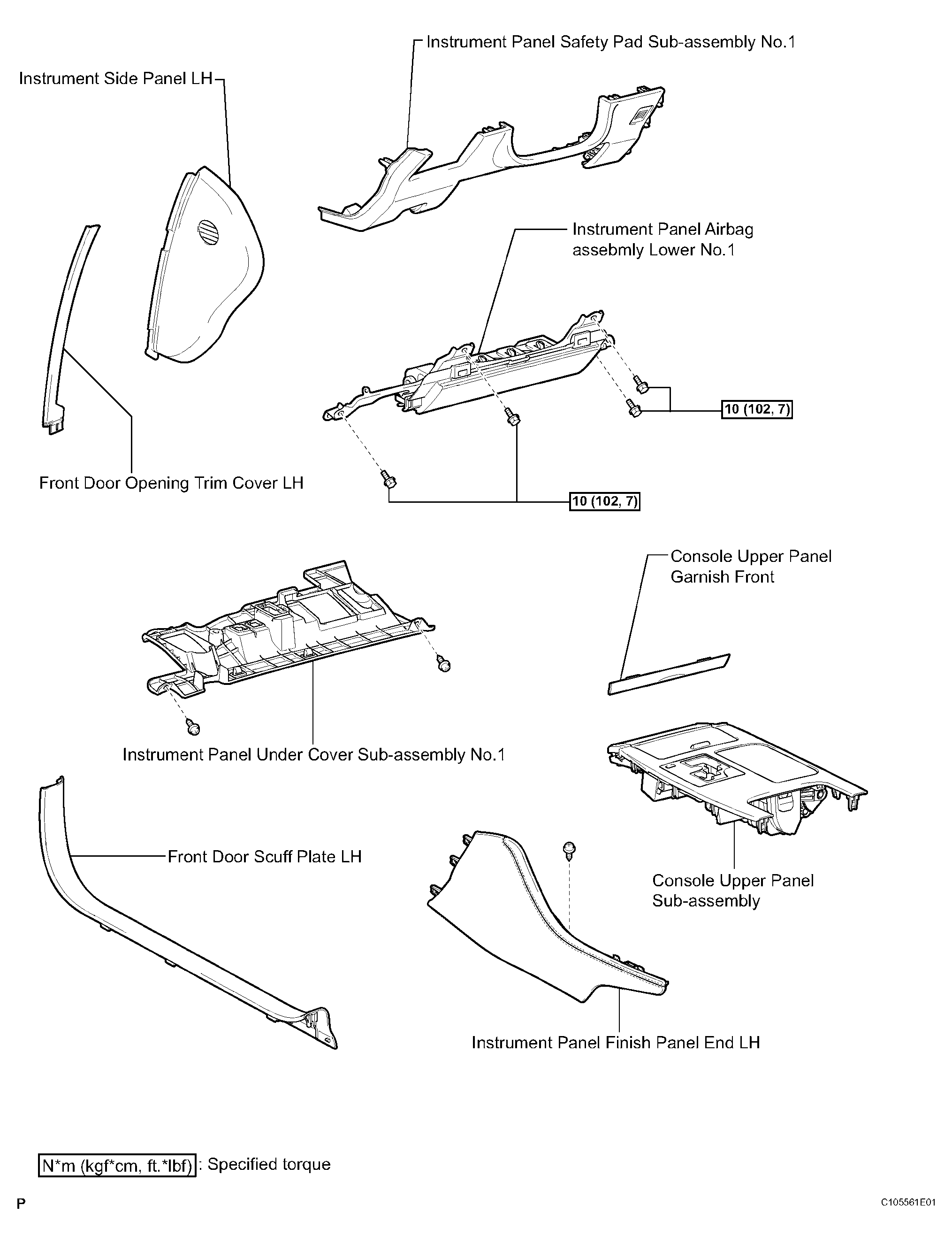

Fig 1: Brake Control Brake Pedal Stroke Sensor Replacement Components With Torque Specifications (1 Of 2)
G04025263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

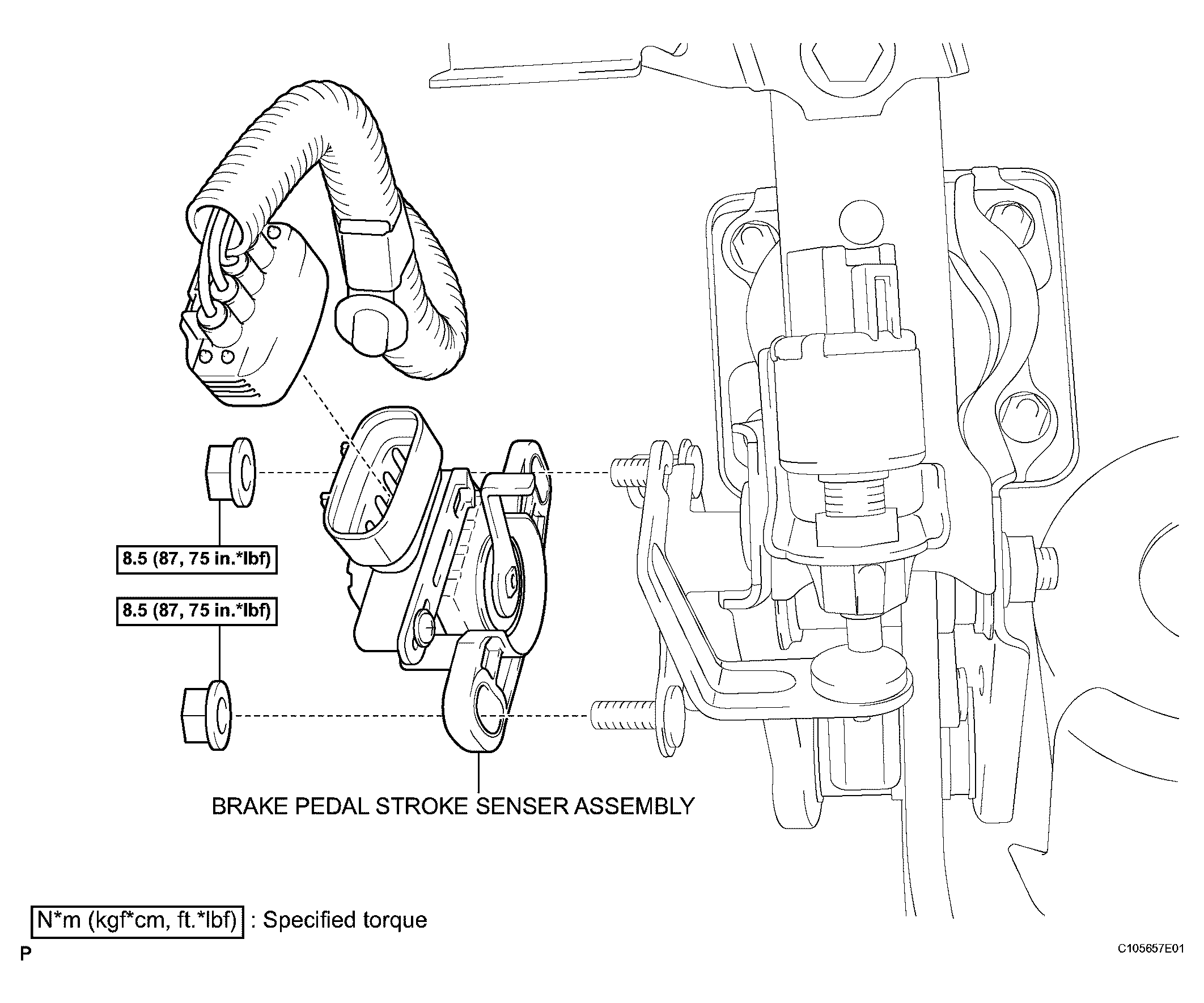

Fig 2: Brake Control Brake Pedal Stroke Sensor Replacement Components With Torque Specifications (2 Of 2)
G04025264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
