Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Brakes >> Brakes Control Systems >> Brake Control >> Yaw Rate Sensor >> Components

Yaw Rate Sensor: Components

Fig 1: Yaw Rate Sensor Replacement Components With Torque Specifications (1 Of 2)
G04025244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

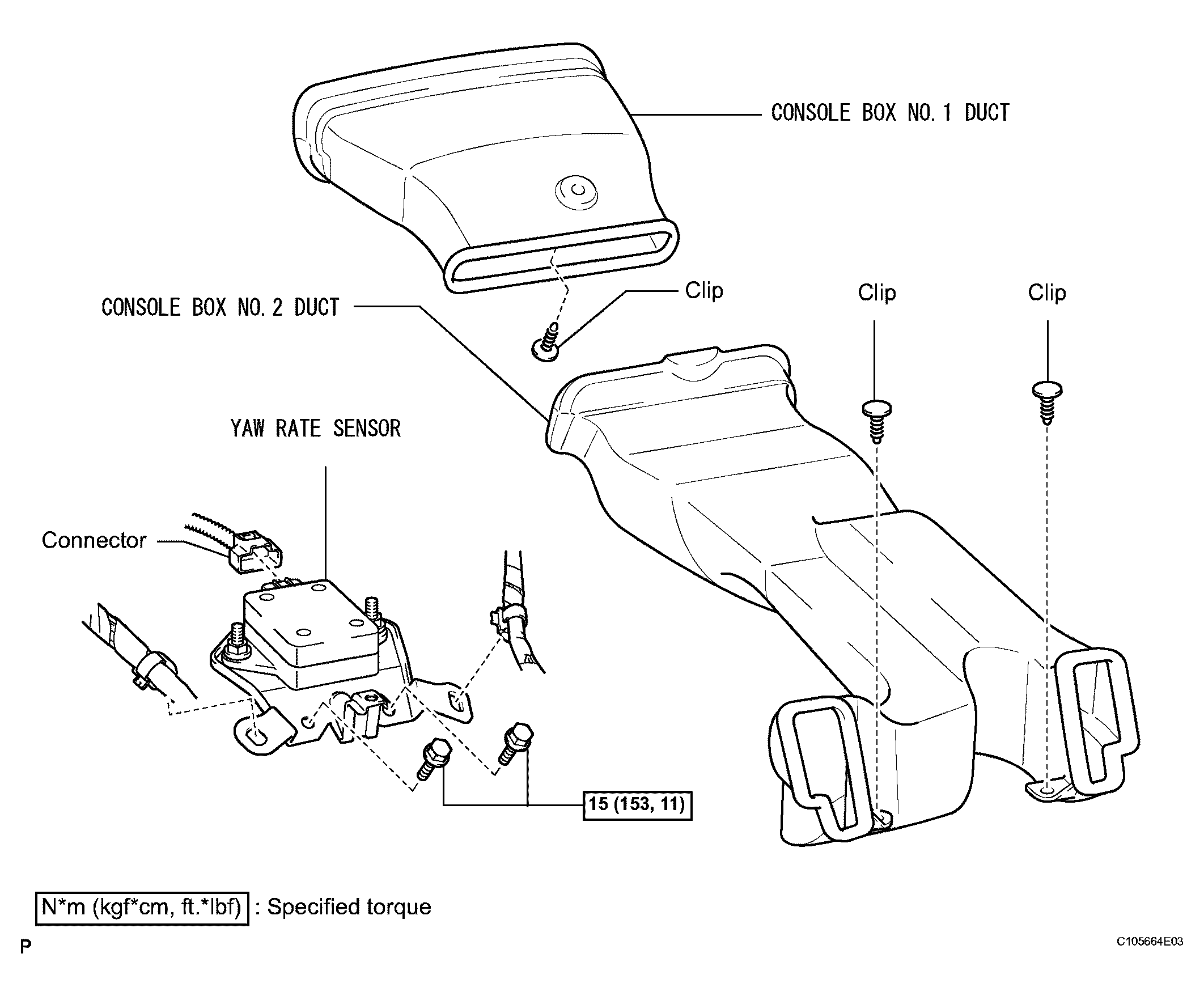

Fig 2: Yaw Rate Sensor Replacement Components With Torque Specifications (2 Of 2)
G04025245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
