Data Link Connector 3: Notes

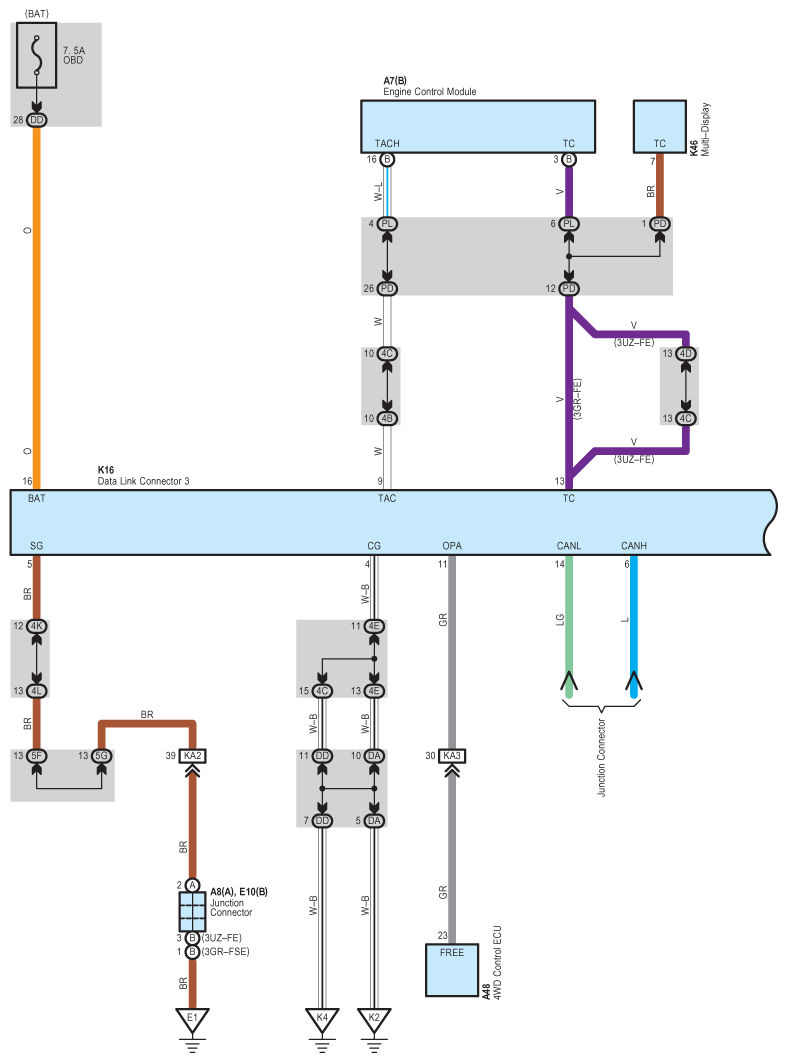

Fig 1: Data Link Connector 3 System Wiring Diagram (1 Of 2)
G08910278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

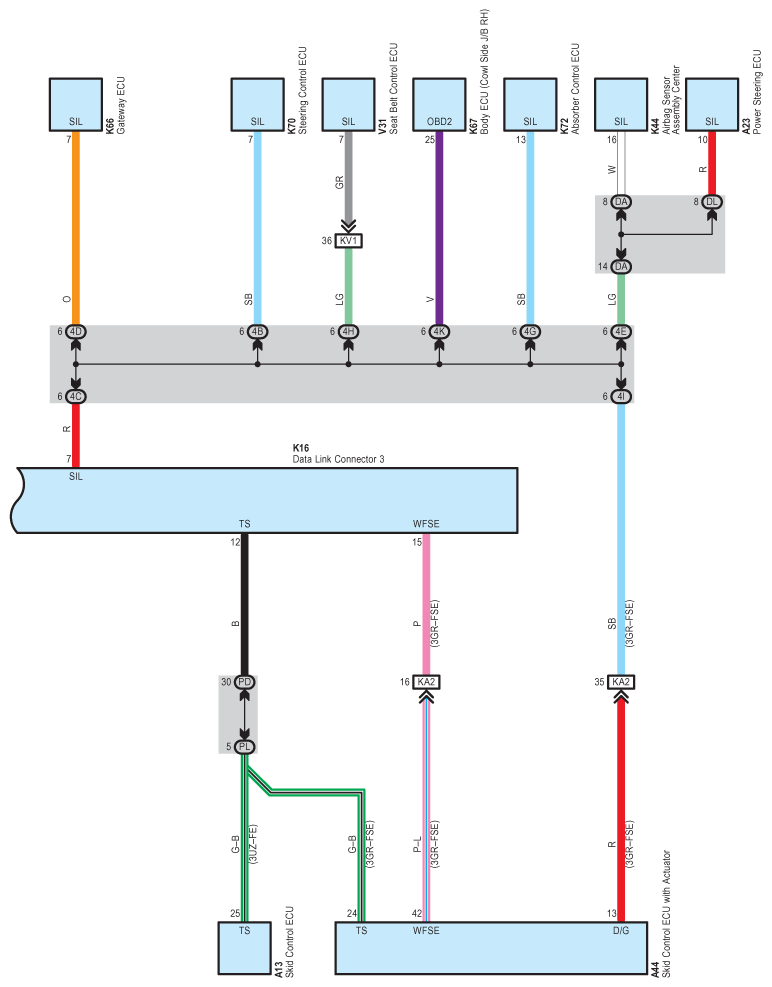

Fig 2: Data Link Connector 3 System Wiring Diagram (2 Of 2)
G08910279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
