Fuel Lid Opener: Notes

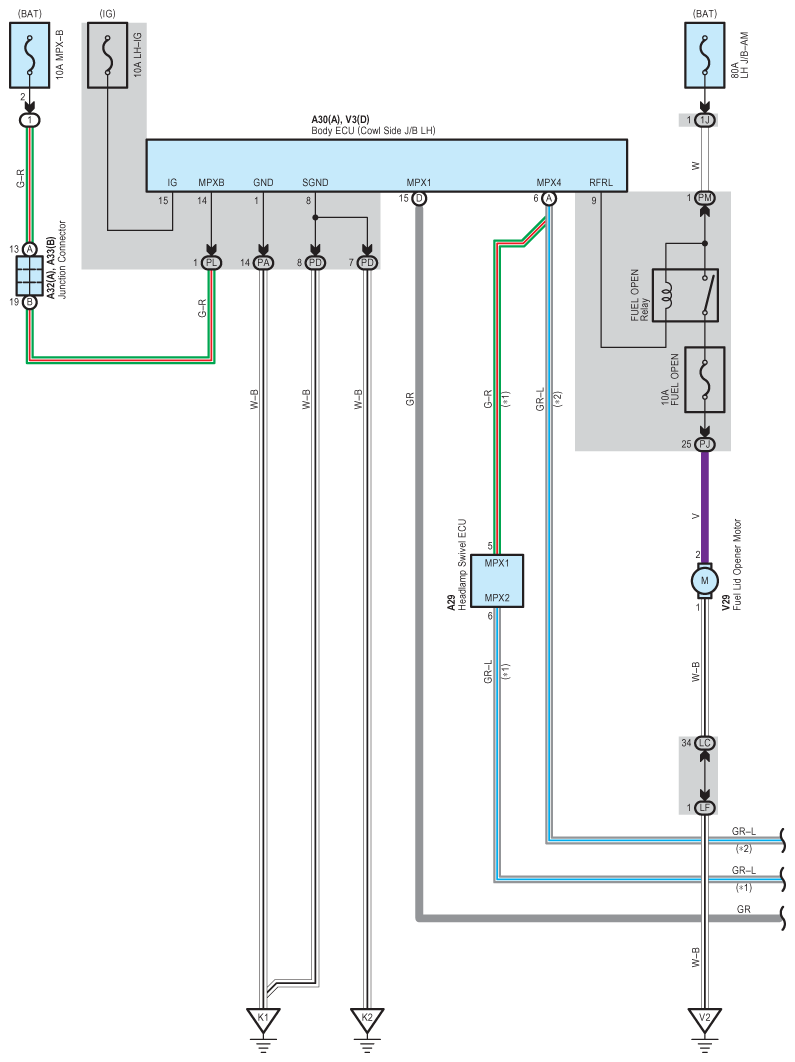

Fig 1: Fuel Lid Opener System Wiring Diagram (1 Of 2)
G08910550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

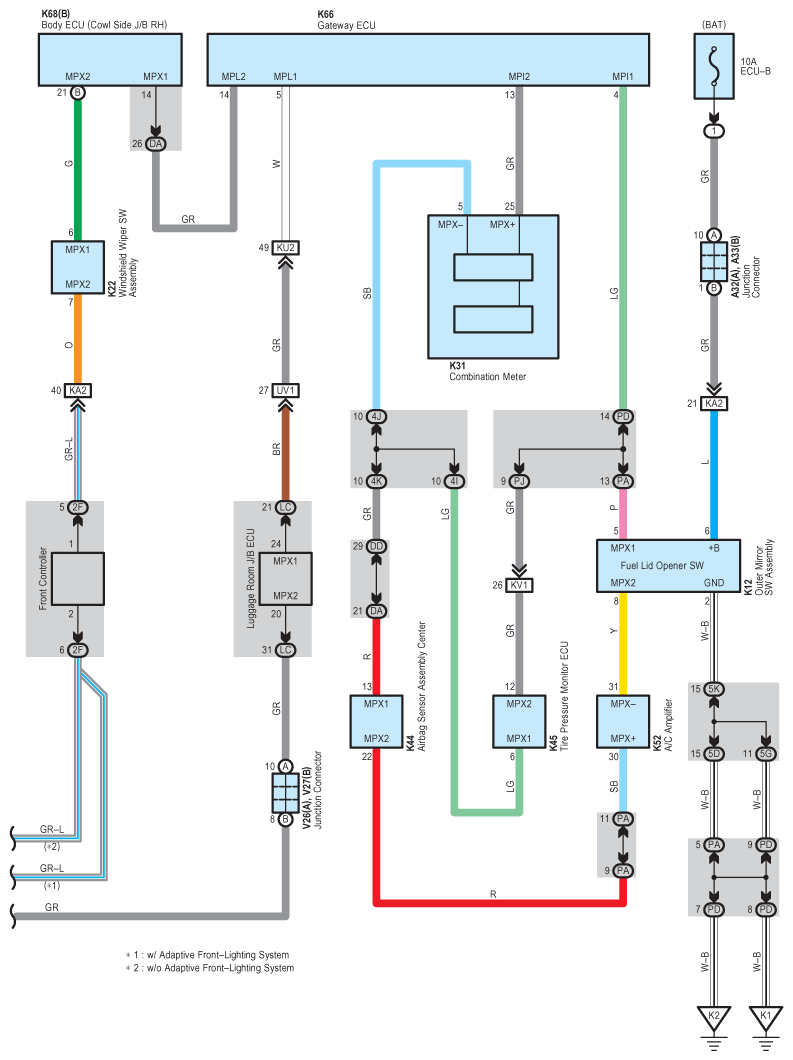

Fig 2: Fuel Lid Opener System Wiring Diagram (2 Of 2)
G08910551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
