Ignition for 3UZ-FE: Notes

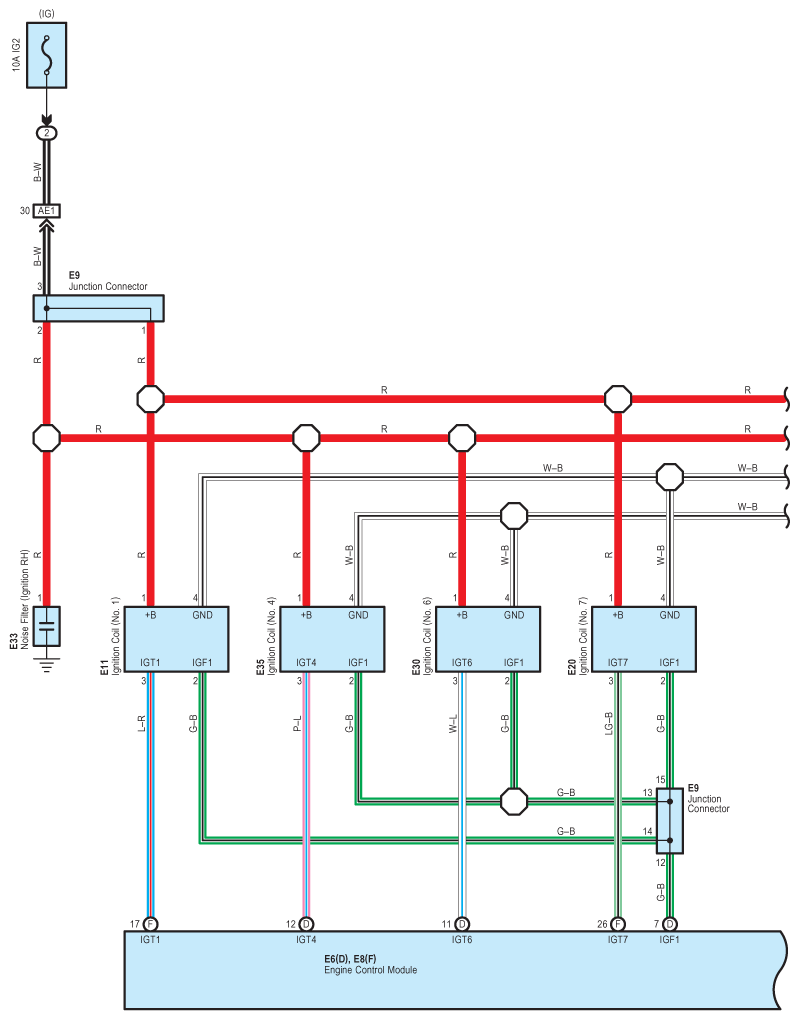

Fig 1: Ignition System Wiring Diagram - 3UZ-FE (1 Of 2)
G08910244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

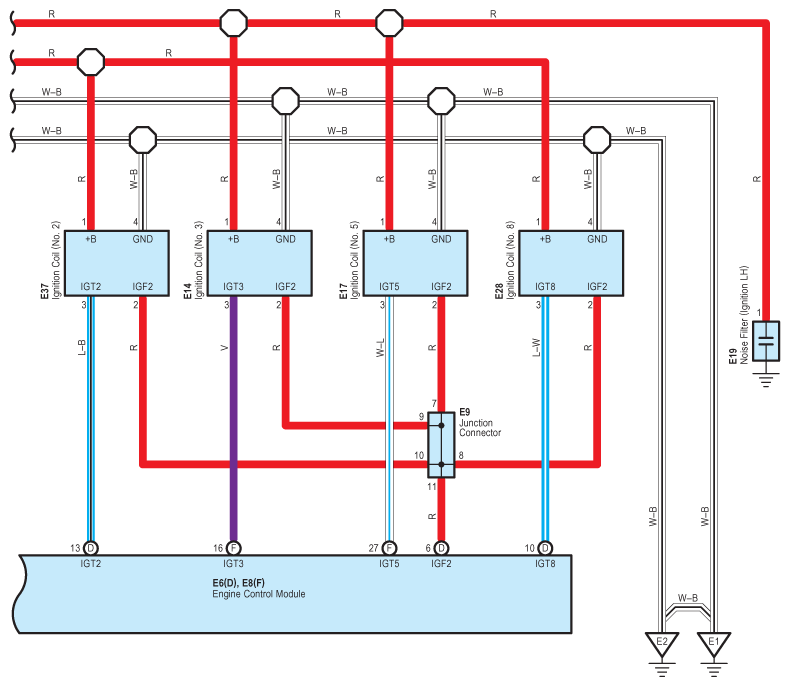

Fig 2: Ignition System Wiring Diagram - 3UZ-FE (2 Of 2)
G08910245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
