Multiplex Communication System - CAN: Notes

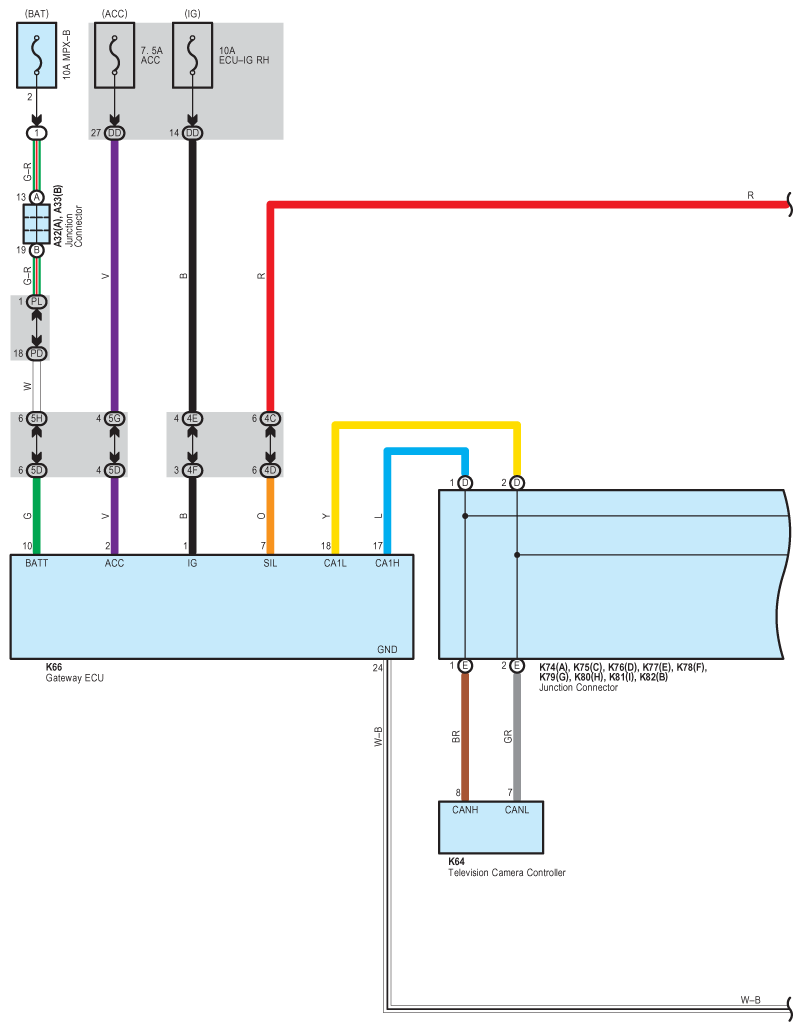

Fig 1: Multiplex Communication System - CAN System Wiring Diagram (1 Of 4)
G08910285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

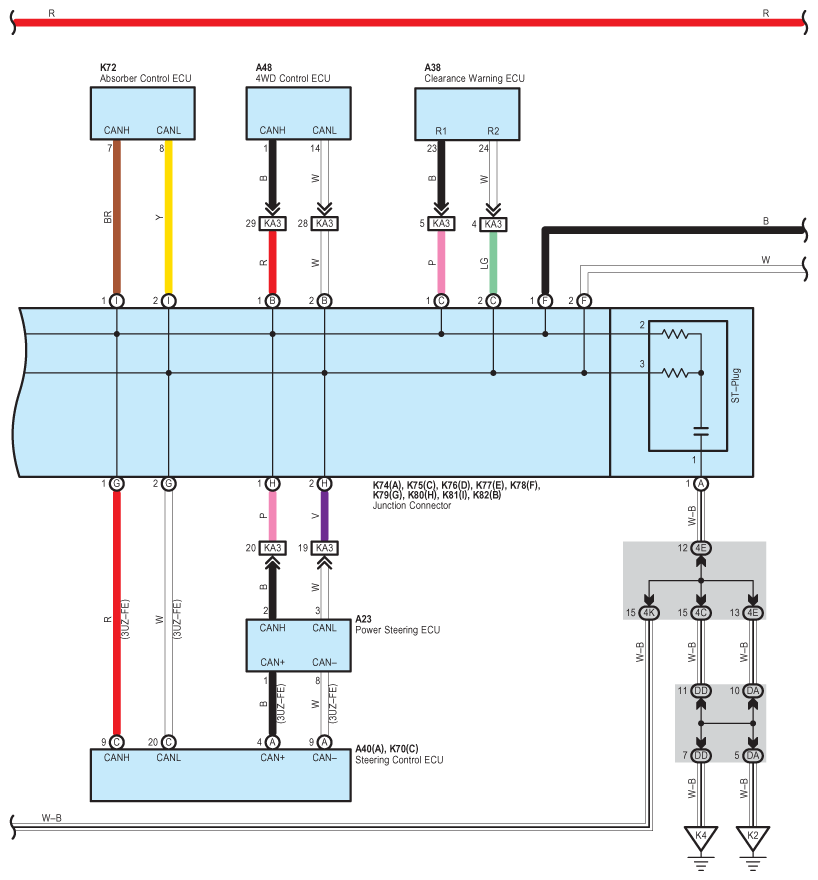

Fig 2: Multiplex Communication System - CAN System Wiring Diagram (2 Of 4)
G08910286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

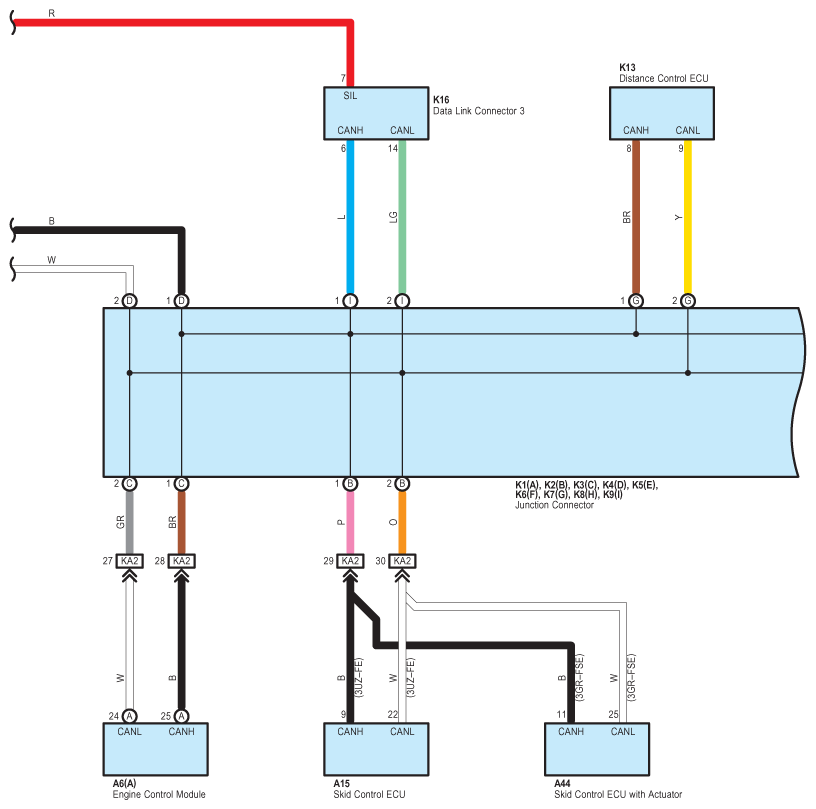

Fig 3: Multiplex Communication System - CAN System Wiring Diagram (3 Of 4)
G08910287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

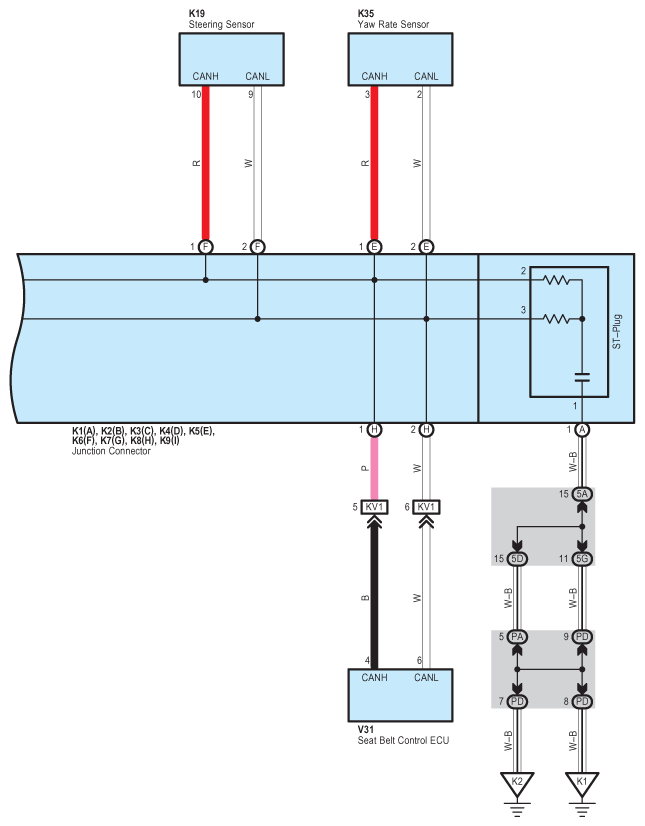

Fig 4: Multiplex Communication System - CAN System Wiring Diagram (4 Of 4)
G08910288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
