Pre-Collision Safety System: Notes

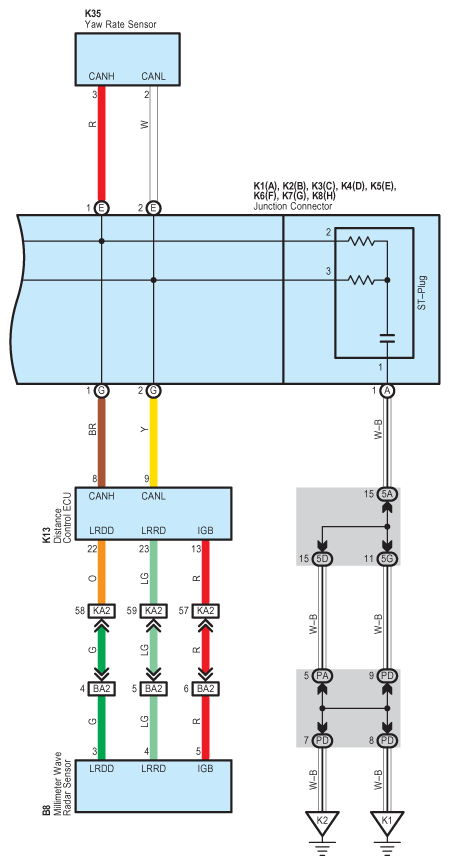

Fig 1: Pre-Collision Safety System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

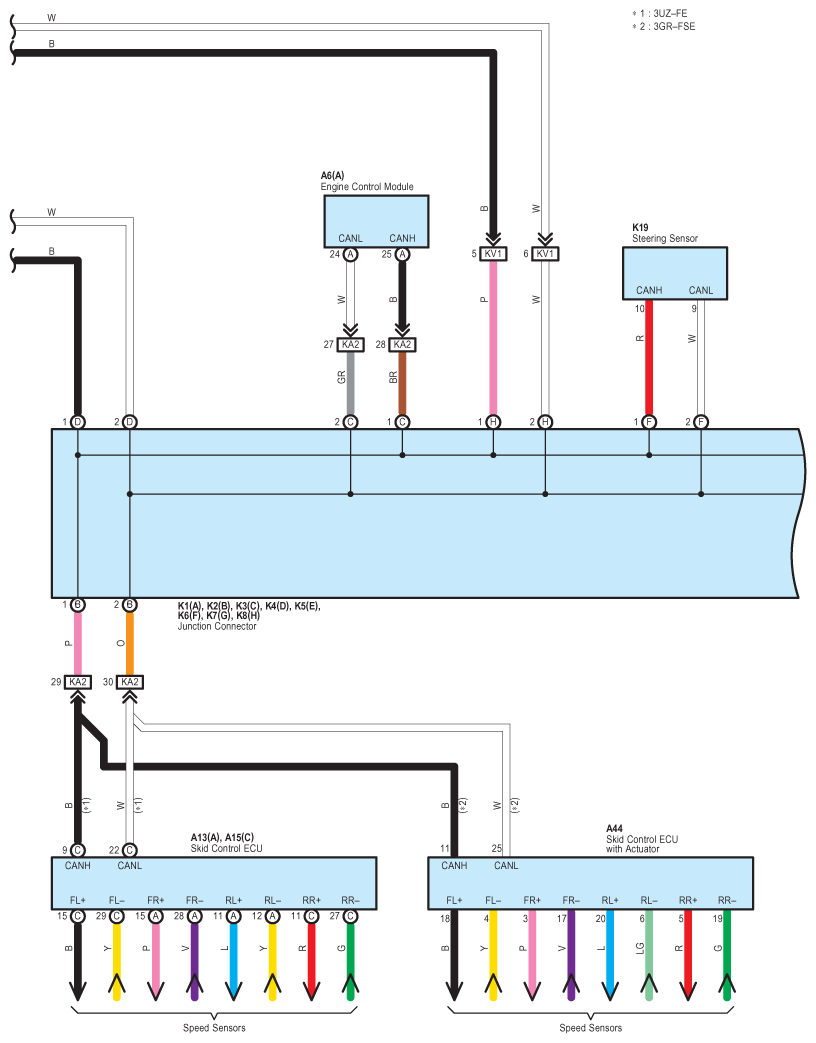

Fig 2: Pre-Collision Safety System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

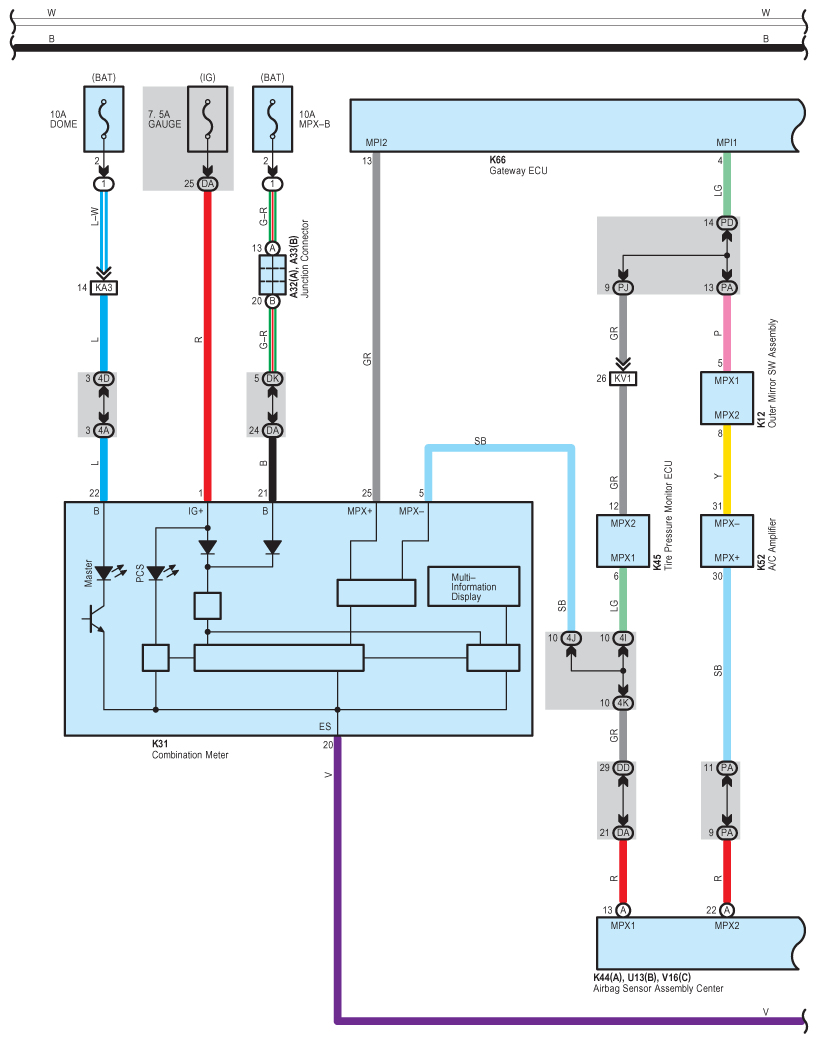

Fig 3: Pre-Collision Safety System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

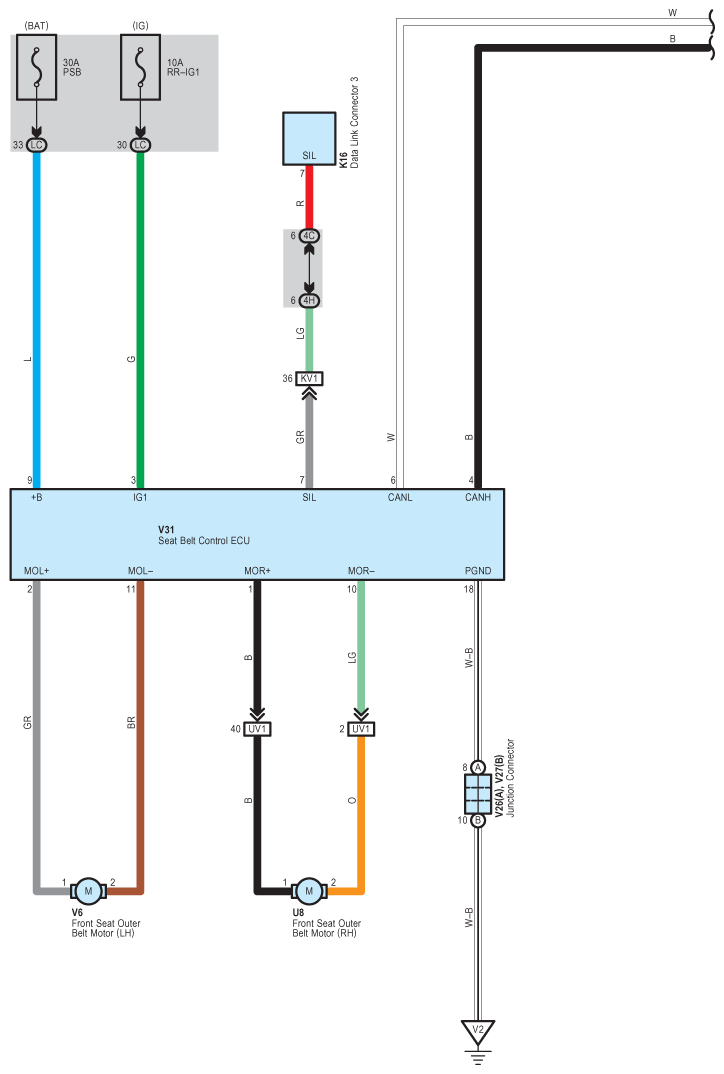

Fig 4: Pre-Collision Safety System Wiring Diagram (4 Of 5)

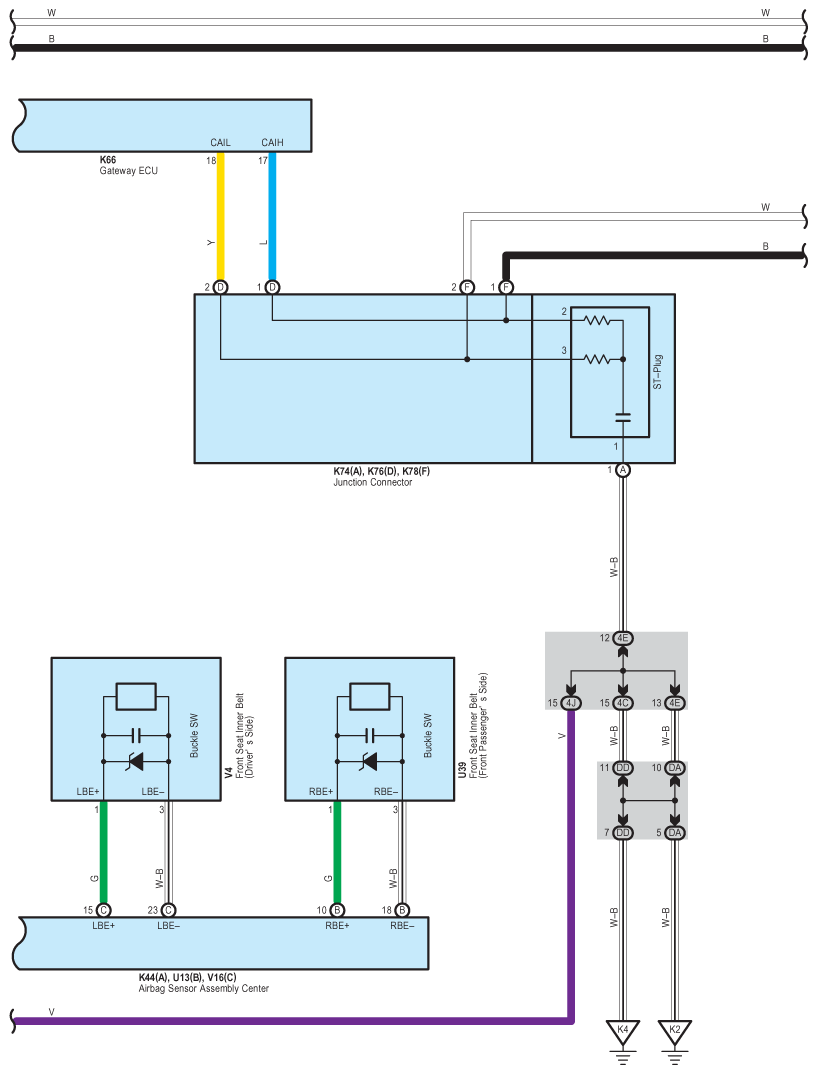

Fig 5: Pre-Collision Safety System Wiring Diagram (5 Of 5)
