Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition (3UZ-FE) >> Ignition Coil >> Components

Ignition Coil: Components

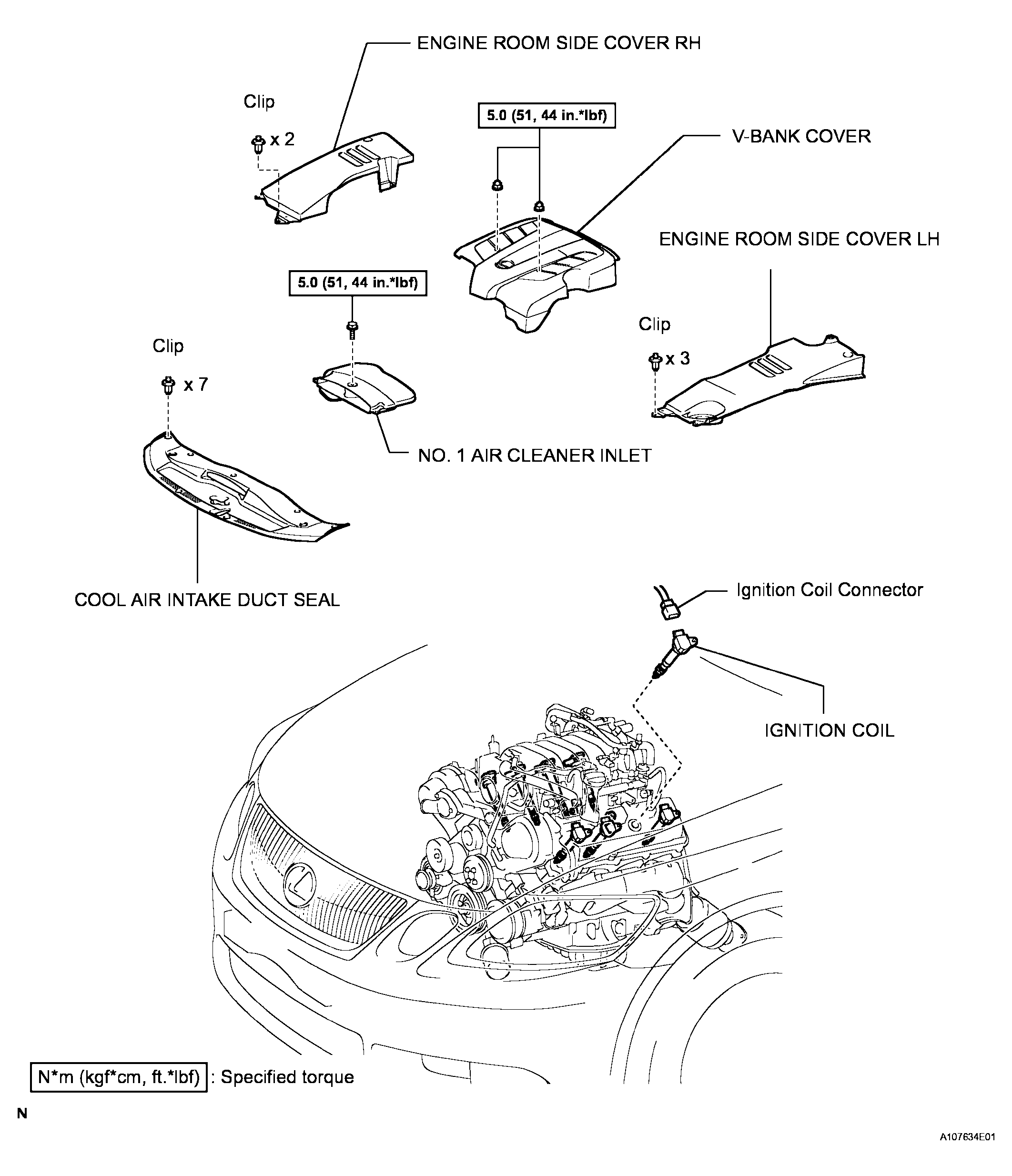

Fig 1: Ignition Coil Replacement Components With Torque Specifications

G04028110

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
