Front Axle Hub: Components

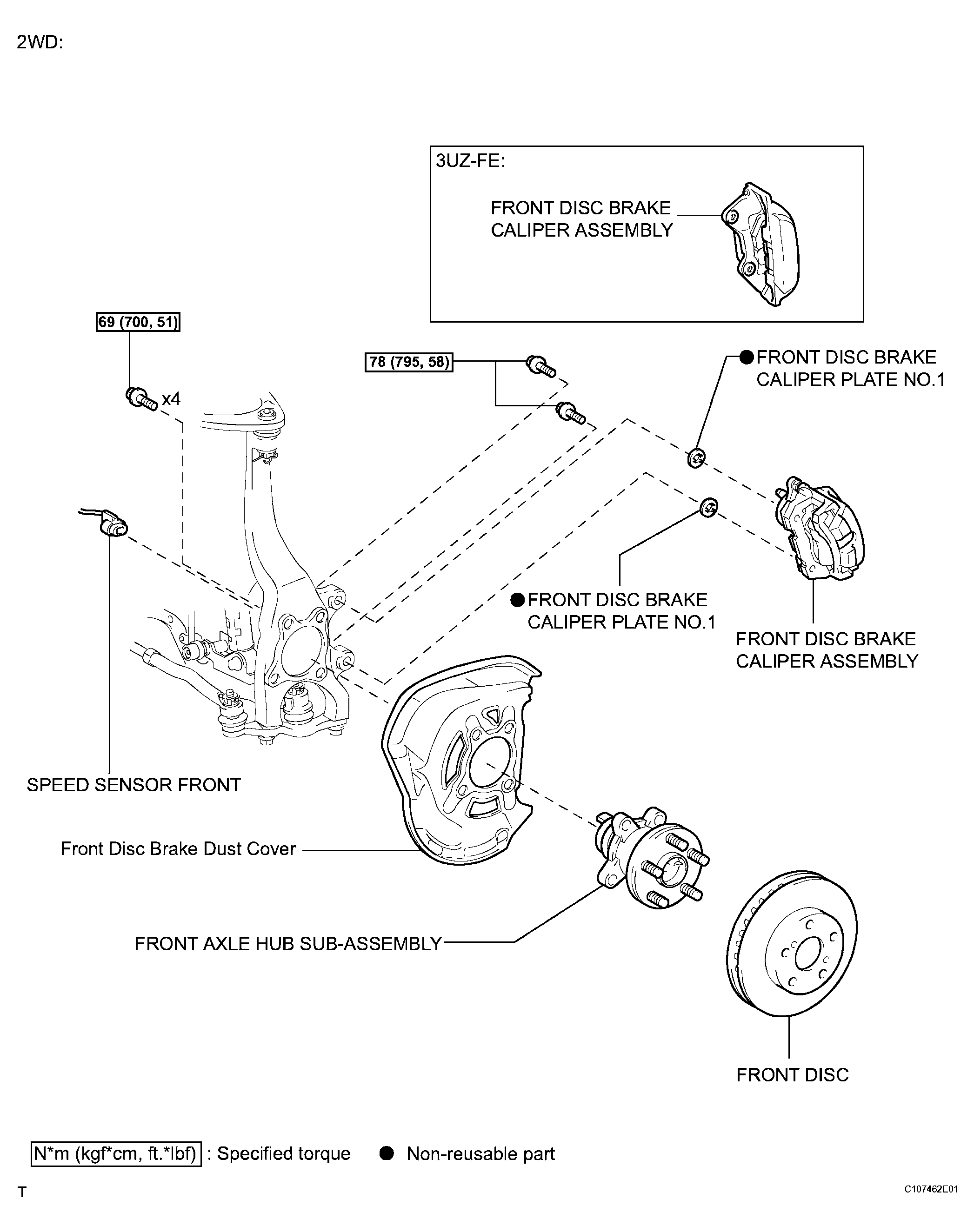

Fig 1: Exploded View Of Front Axle Hub Components With Torque Specifications (1 Of 2)
G04024495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

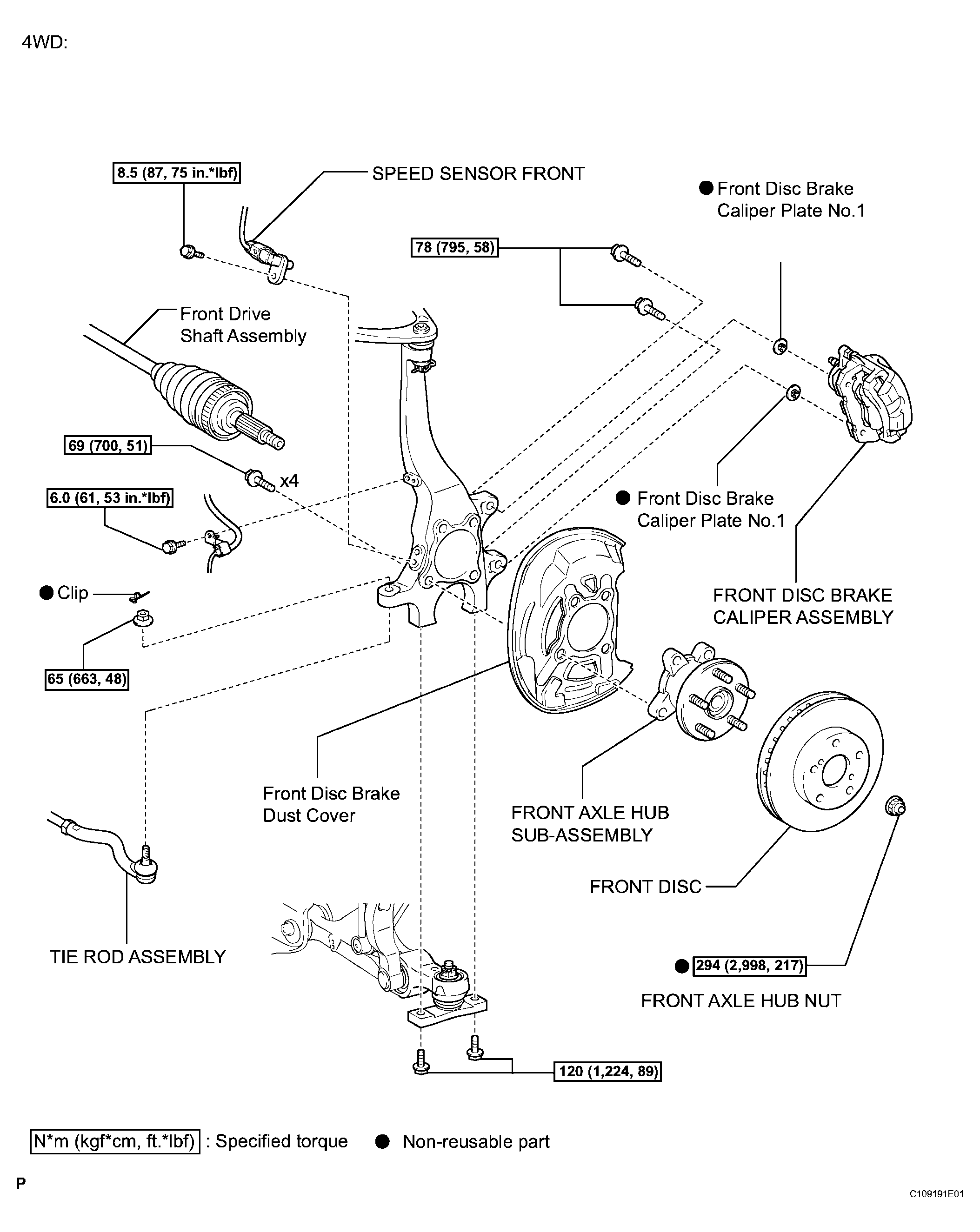

Fig 2: Exploded View Of Front Axle Hub Components With Torque Specifications (2 Of 2)
G04024496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
