Automatic Transmission Assembly: Components

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)
G04028475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

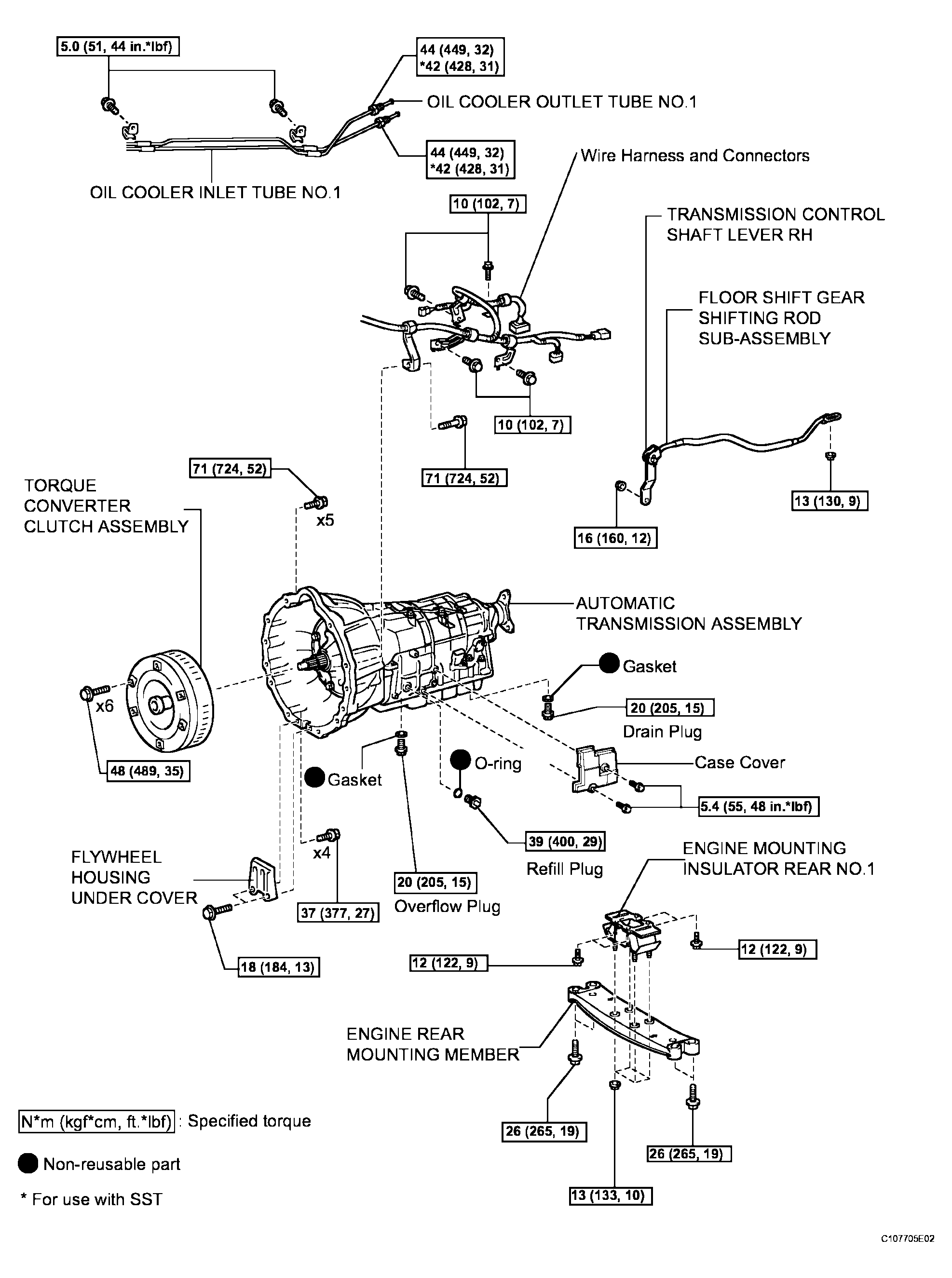

Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
G04028476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
