Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Park / Neutral Position Switch >> Components

Park / Neutral Position Switch: Components

Fig 1: Park/Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)
G04028396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

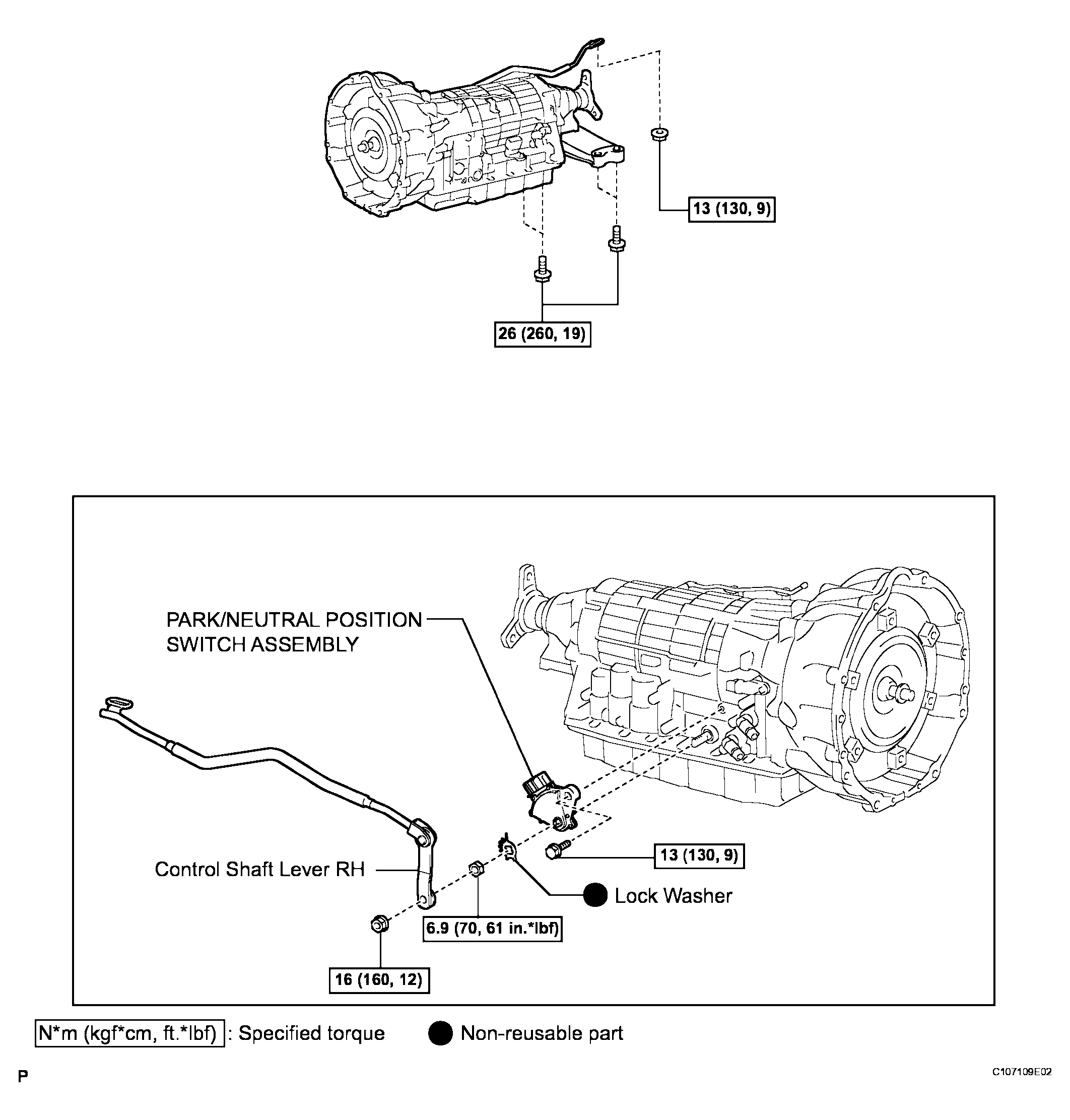

Fig 2: Park/Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)
G04028397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
