Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Speed Sensor >> Components

Speed Sensor: Components

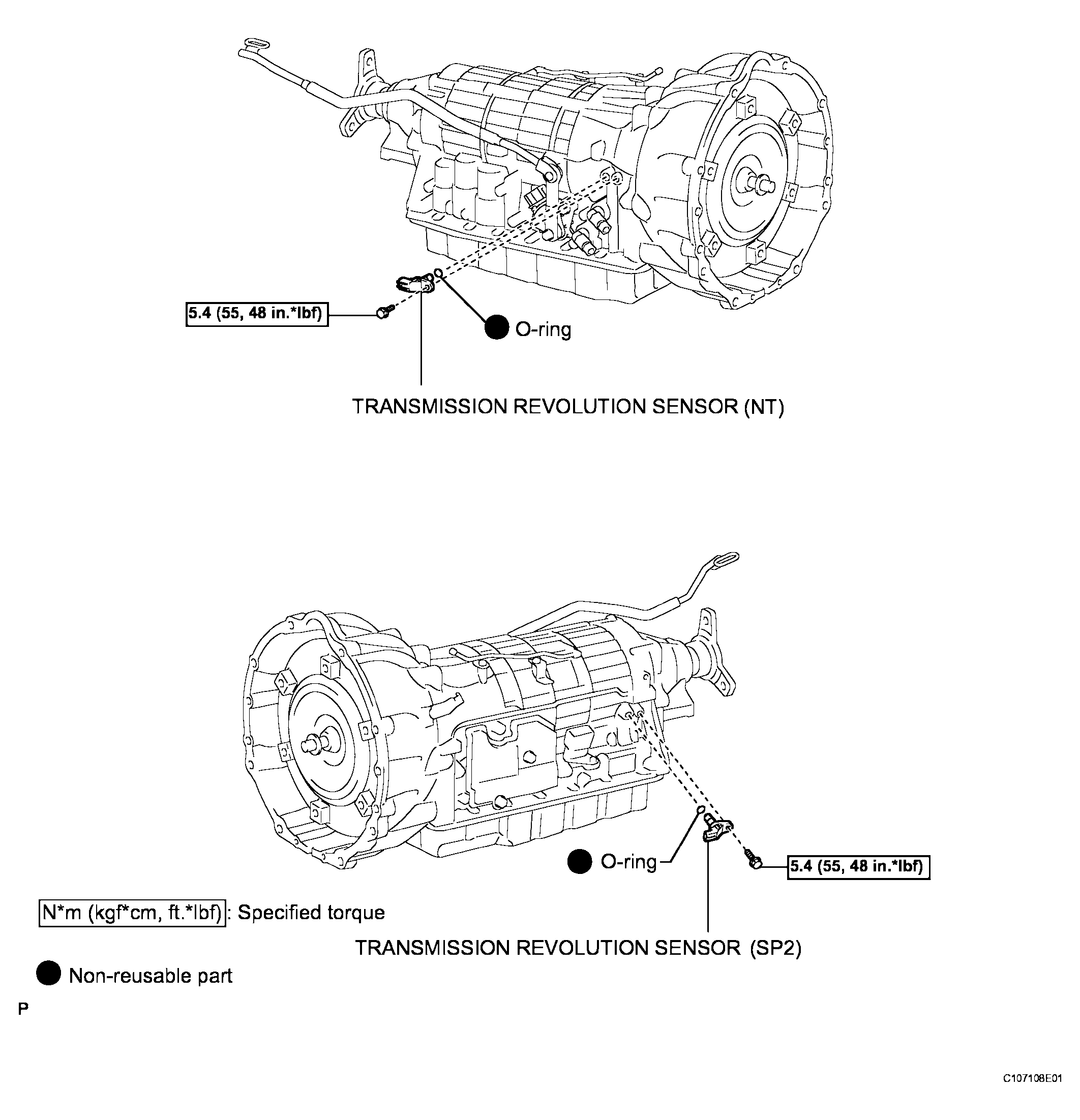

Fig 1: Speed Sensor With Torque Specifications

G04028369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
