Speed Sensor: Removal

  1. REMOVE TRANSMISSION REVOLUTION SENSOR
    1. Remove the transmission revolution sensor (NT sensor).
      1. Disconnect the transmission revolution sensor connector.
      2. Remove the bolt and transmission revolution sensor.
      3. Remove the O-ring from the transmission revolution sensor.

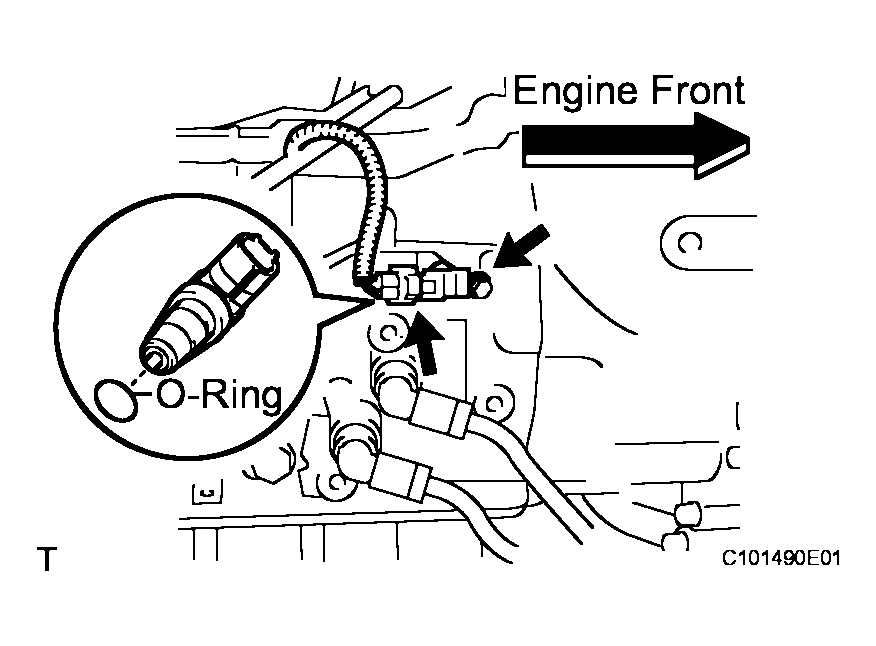

        Fig 1: Identifying O-Ring From Transmission Revolution Sensor (NT Sensor)
        G04028370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the transmission revolution sensor (SP2 sensor).
      1. Disconnect the transmission revolution sensor connector.
      2. Remove the bolt and transmission revolution sensor.
      3. Remove the O-ring from the transmission revolution sensor.

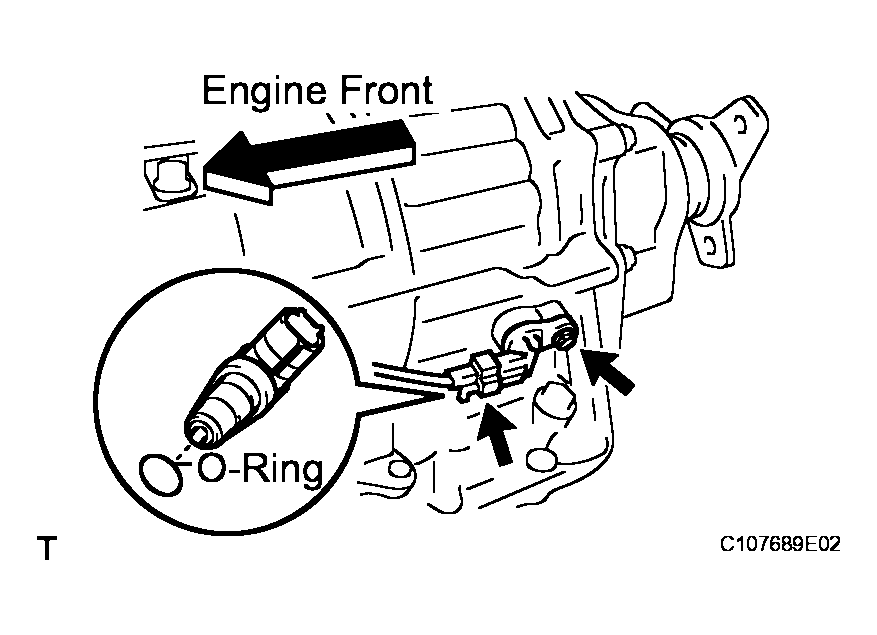

        Fig 2: Identifying O-Ring From Transmission Revolution Sensor (SP2 Sensor)
        G04028371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
