Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Valve Body Assembly >> Components

Valve Body Assembly: Components

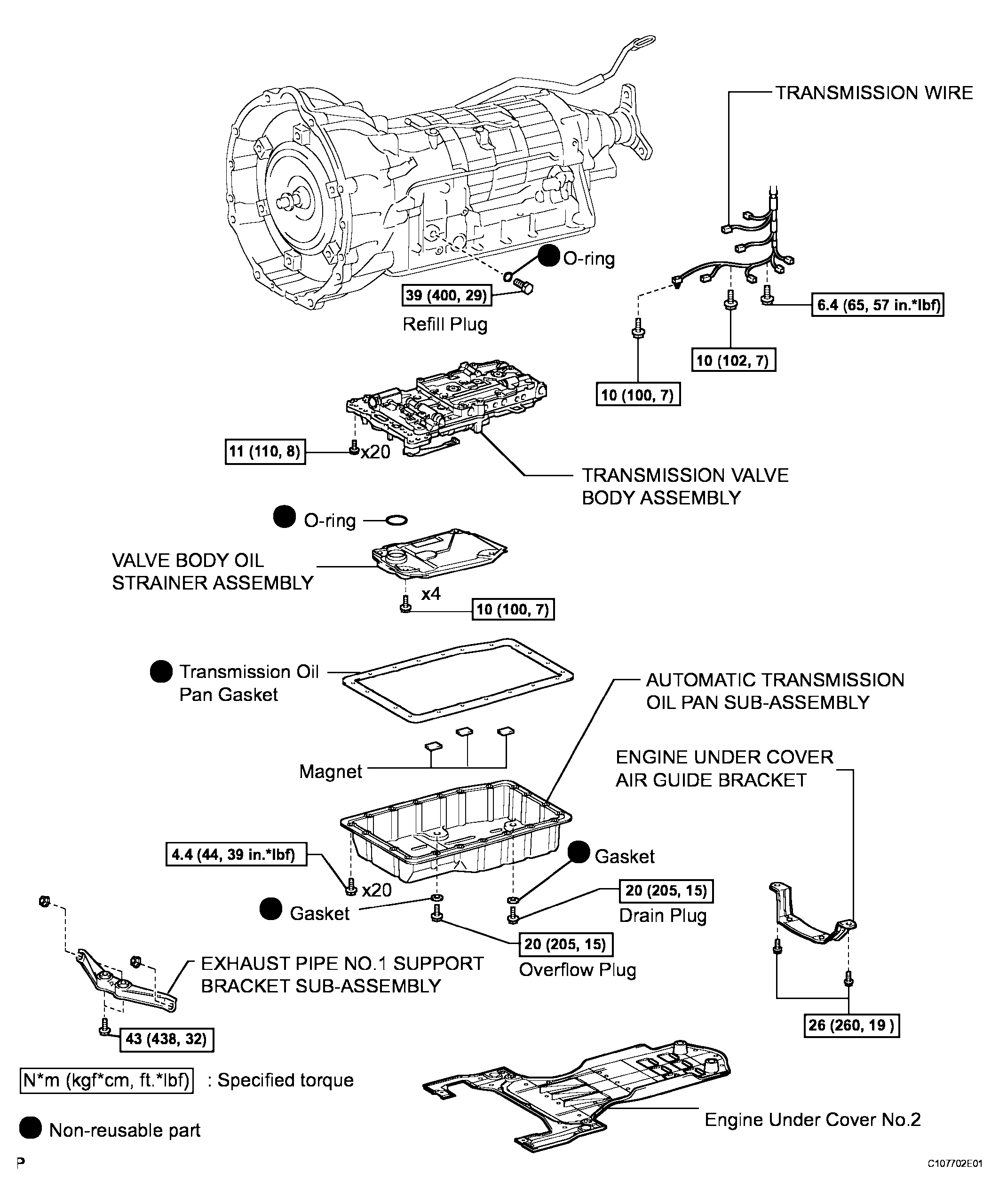

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)
G04028413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

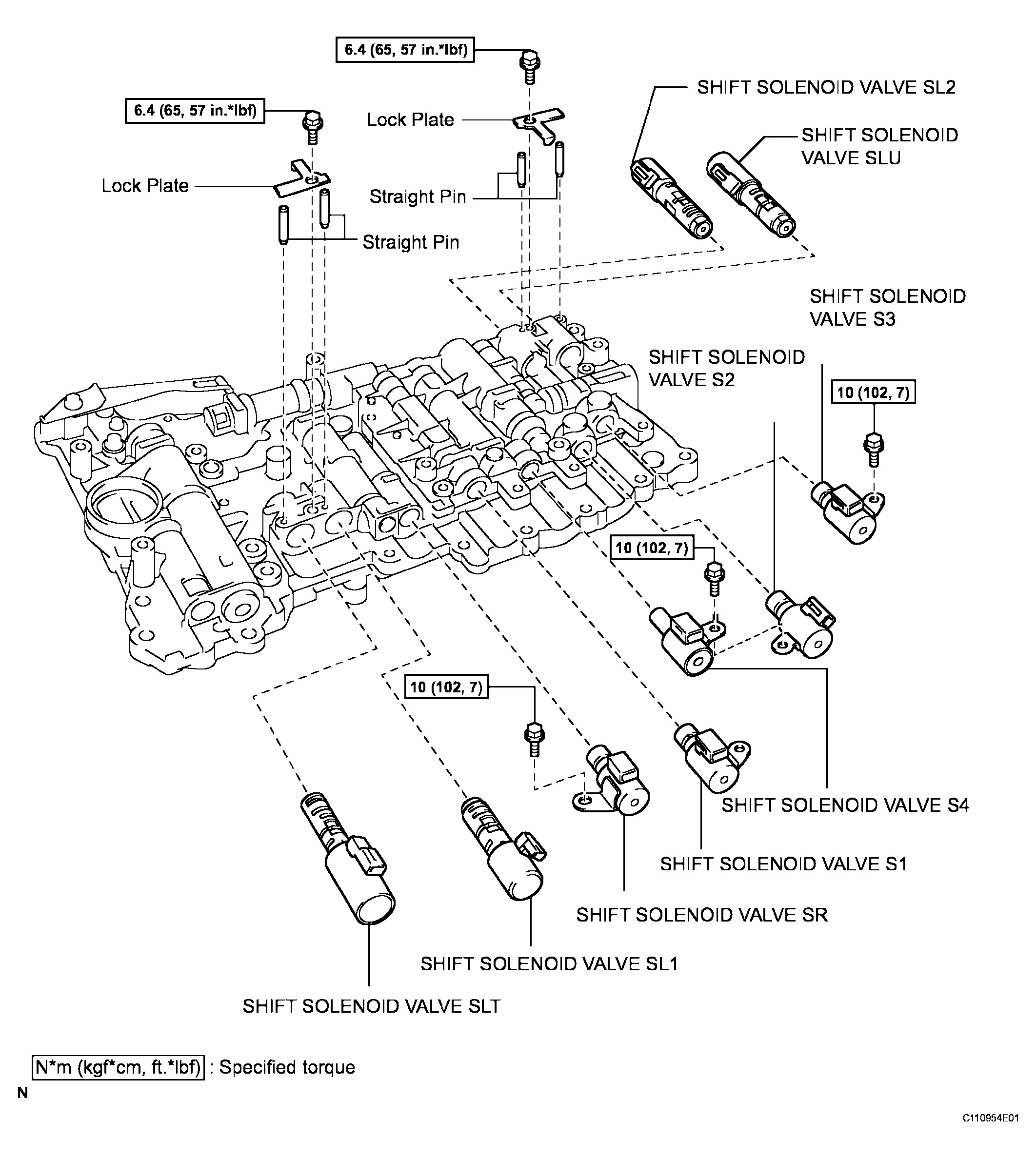

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
G04028414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
