Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Valve Body >> Components

Valve Body: Components

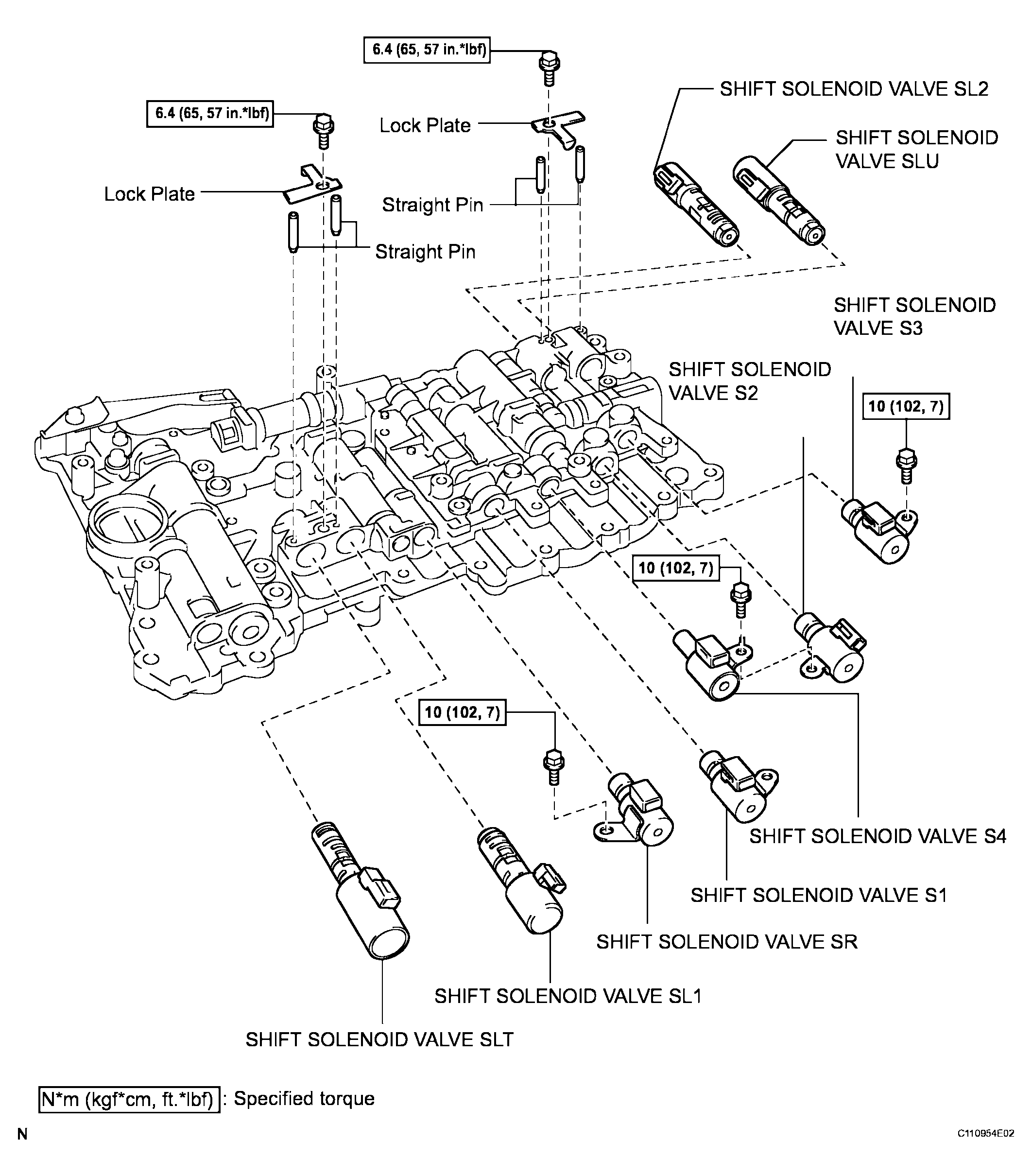

Fig 1: Valve Body Replacement Components With Torque Specifications
G04028814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
