Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> Transfer Case Front Oil Seal >> Components

Transfer Case Front Oil Seal: Components

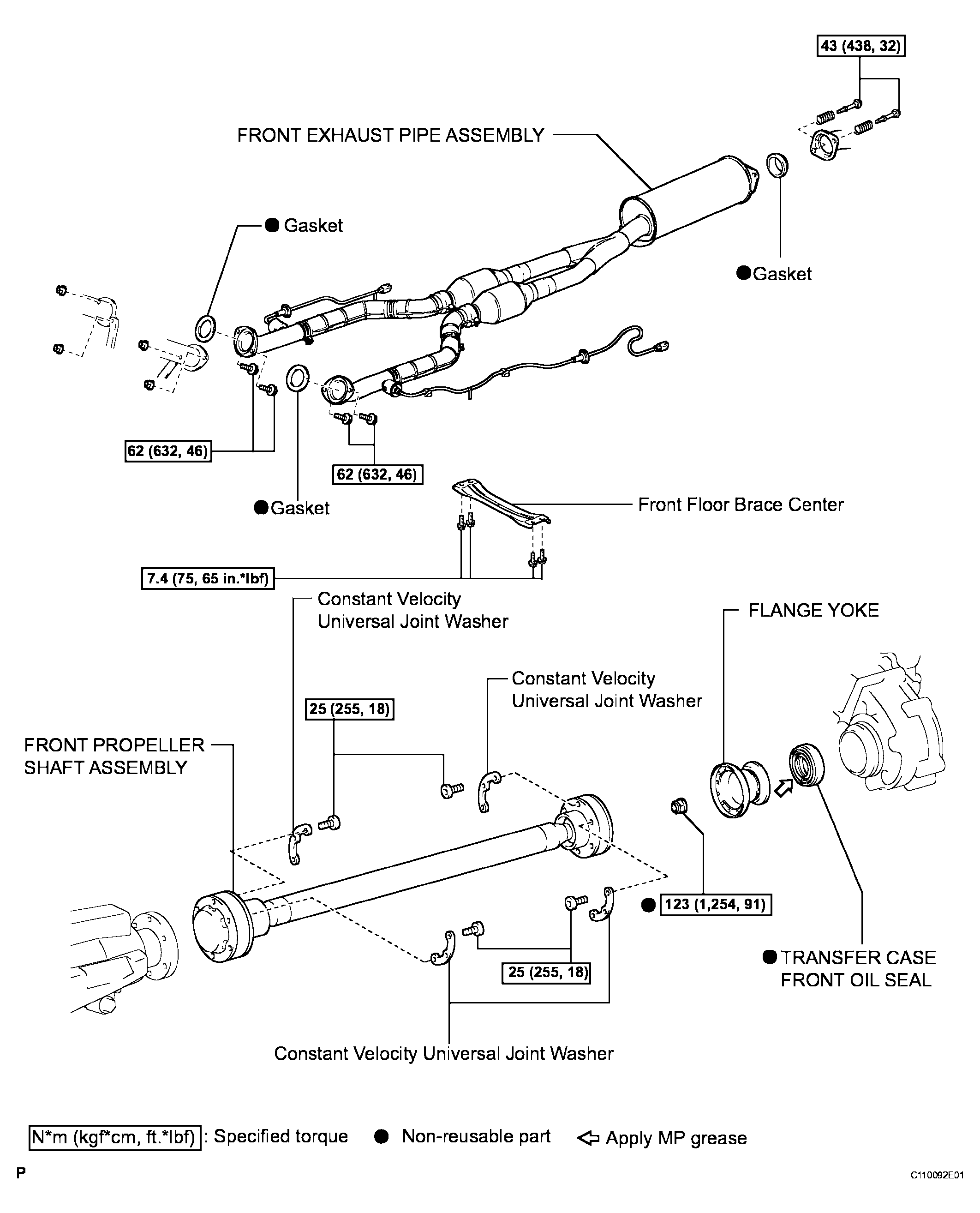

Fig 1: Transfer Case Front Oil Seal Components With Torque Specifications

G04028842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
