Accessory Meter: Notes

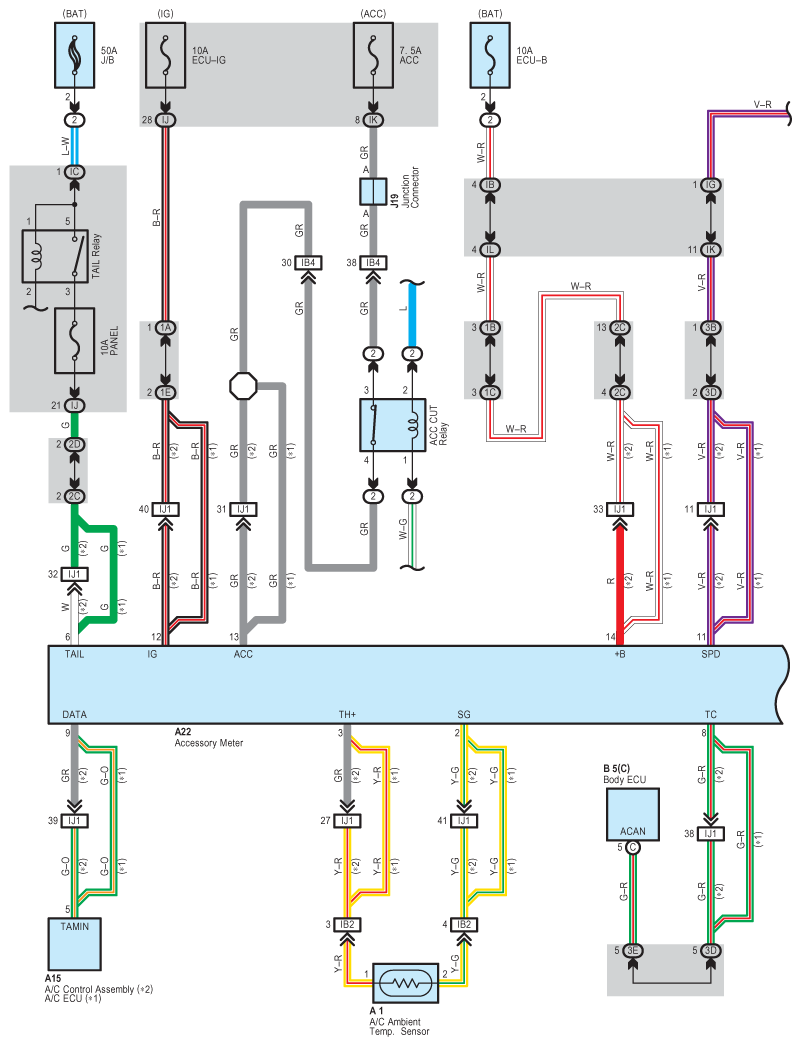

Fig 1: Accessory Meter Wiring Diagram (1 Of 2)
G08910163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

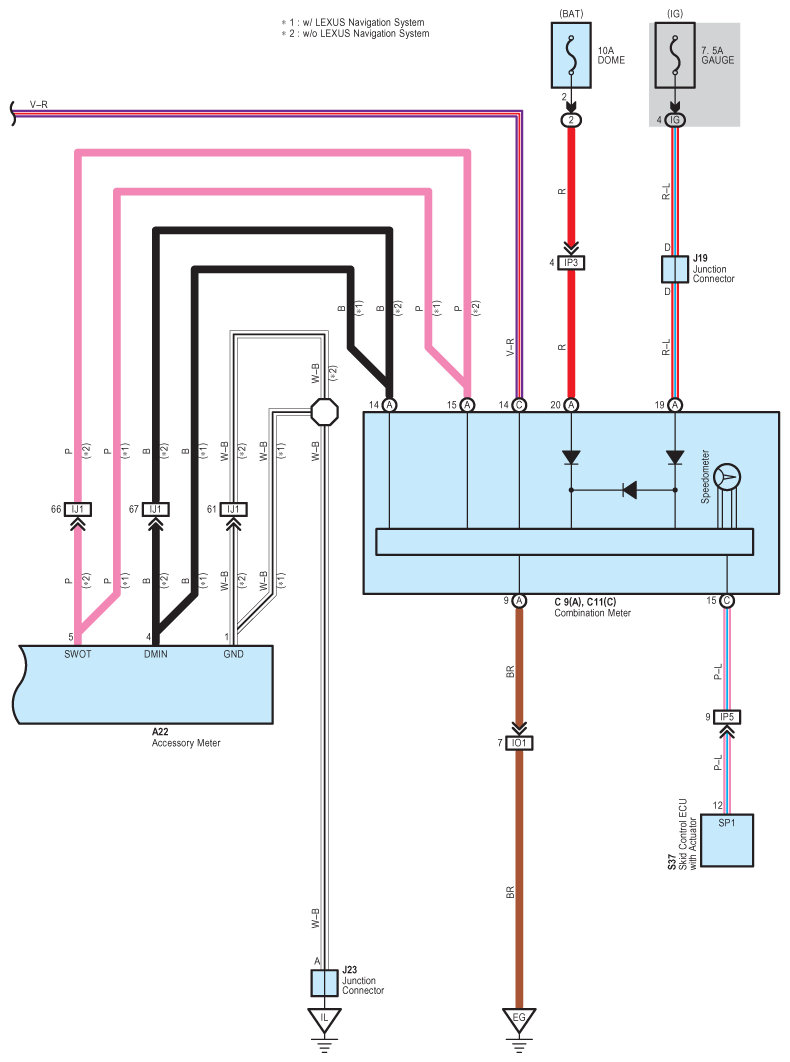

Fig 2: Accessory Meter Wiring Diagram (2 Of 2)
G08910164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
