Home >> Lexus >> 2006 >> GX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Charging >> Notes

OEM System Circuits: Charging: Notes

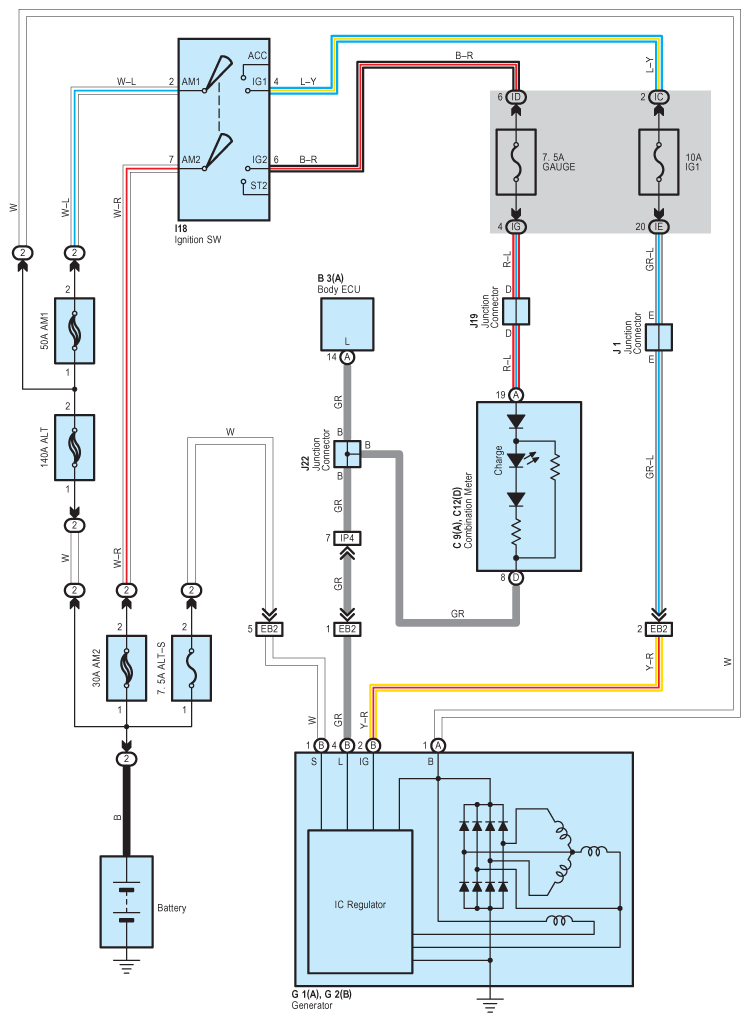

Fig 1: Charging Wiring Diagram
G08910012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
