OEM System Circuits: Ignition: Notes

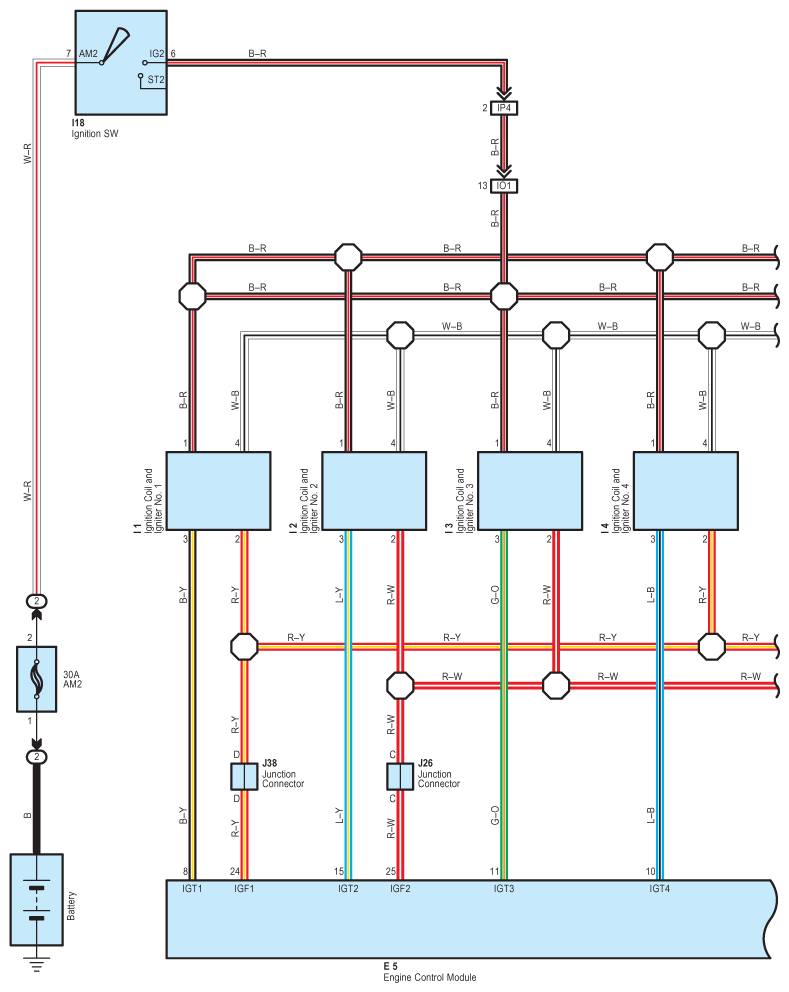

Fig 1: Ignition Wiring Diagram (1 Of 2)
G08910010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

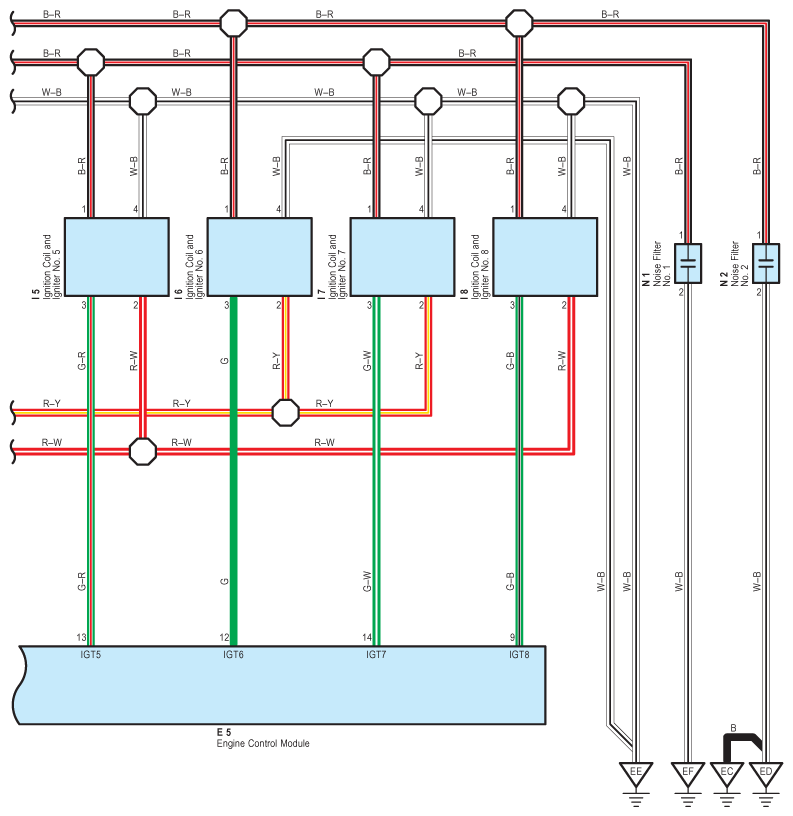

Fig 2: Ignition Wiring Diagram (2 Of 2)
G08910011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
