Multiplex Communication System - CAN: Notes

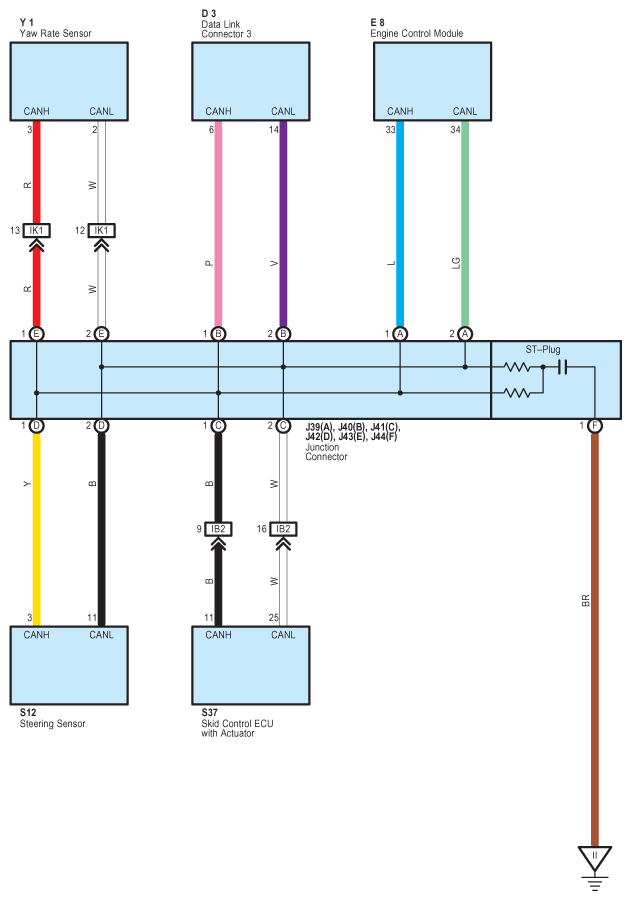

Fig 1: Multiplex Communication System - CAN Wiring Diagram

G08910048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
