Home >> Lexus >> 2006 >> GX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Shift Lock >> Notes

Shift Lock: Notes

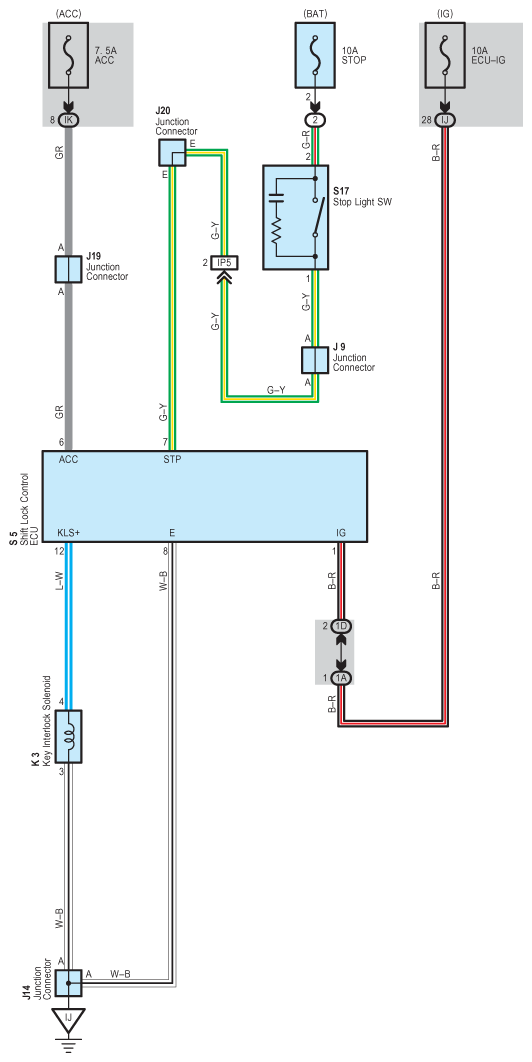

Fig 1: Shift Lock Wiring Diagram
G08910147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
