Home >> Lexus >> 2006 >> GX 470 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Automatic Transmission ASSY >> Components

Automatic Transmission ASSY: Components

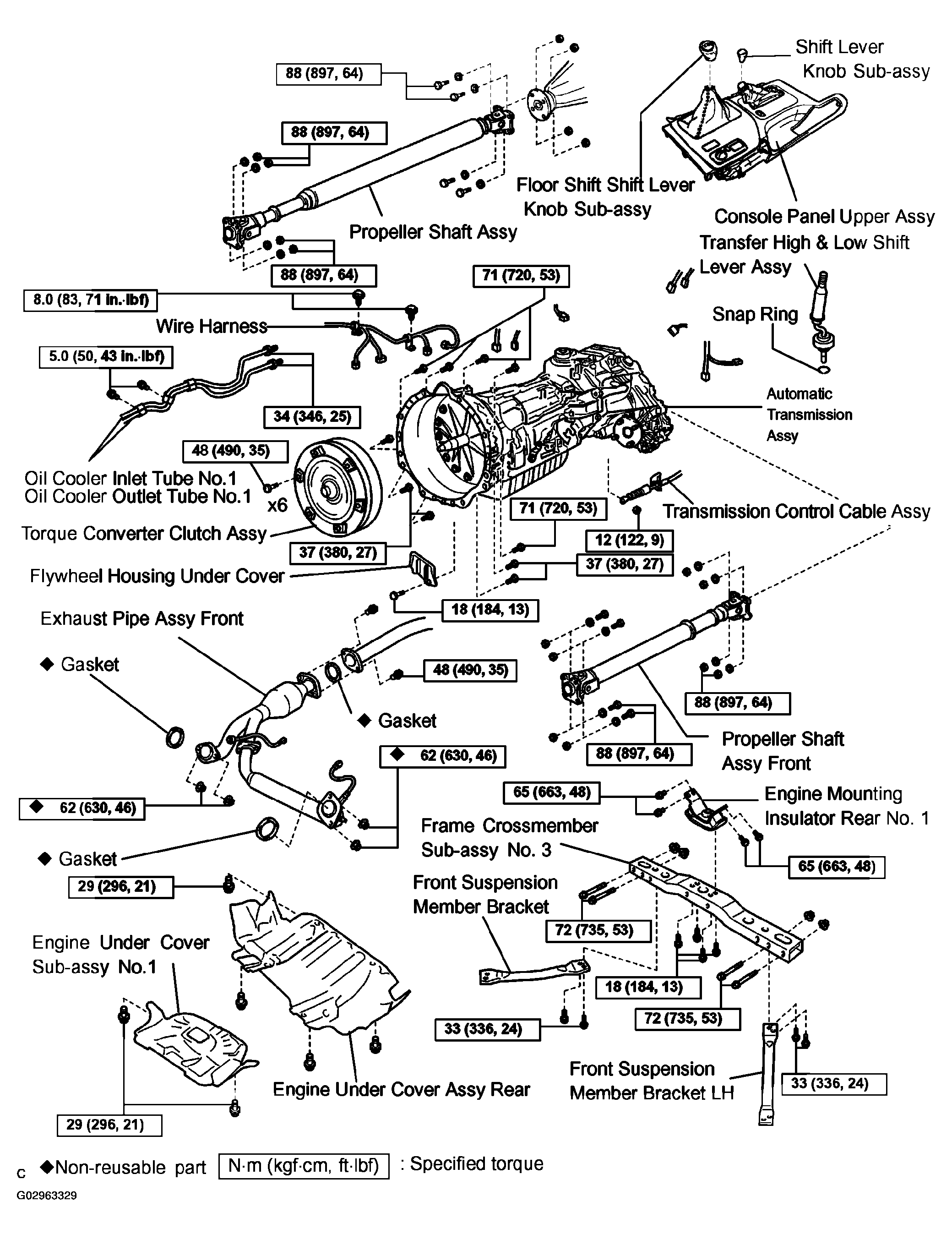

Fig 1: Identifying Automatic Transmission Assy Components & Replacements
G02963329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
