Floor Shift ASSY: Components

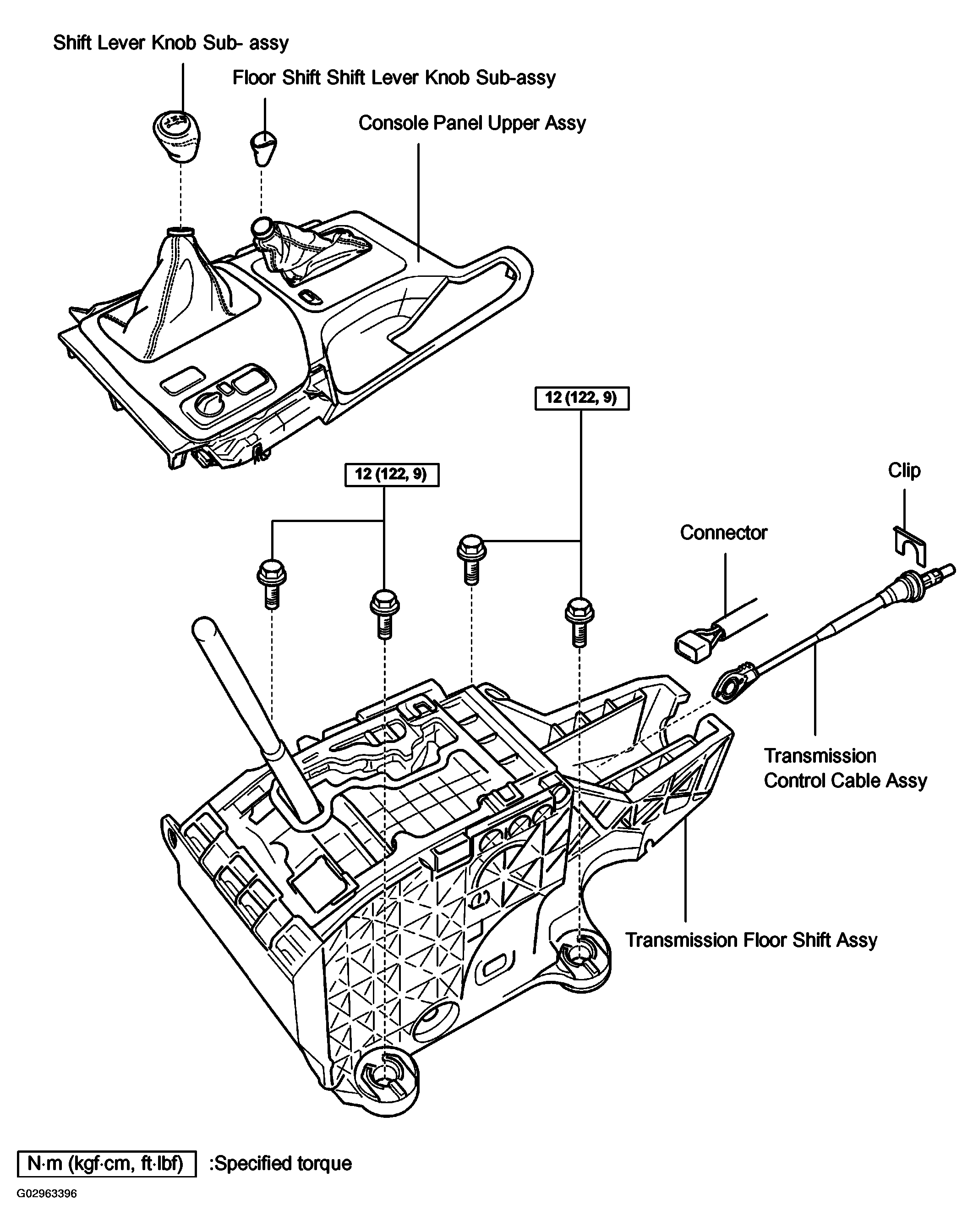

Fig 1: Identifying Floor Shift Assy Components & Replacements (1 Of 2)
G02963396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

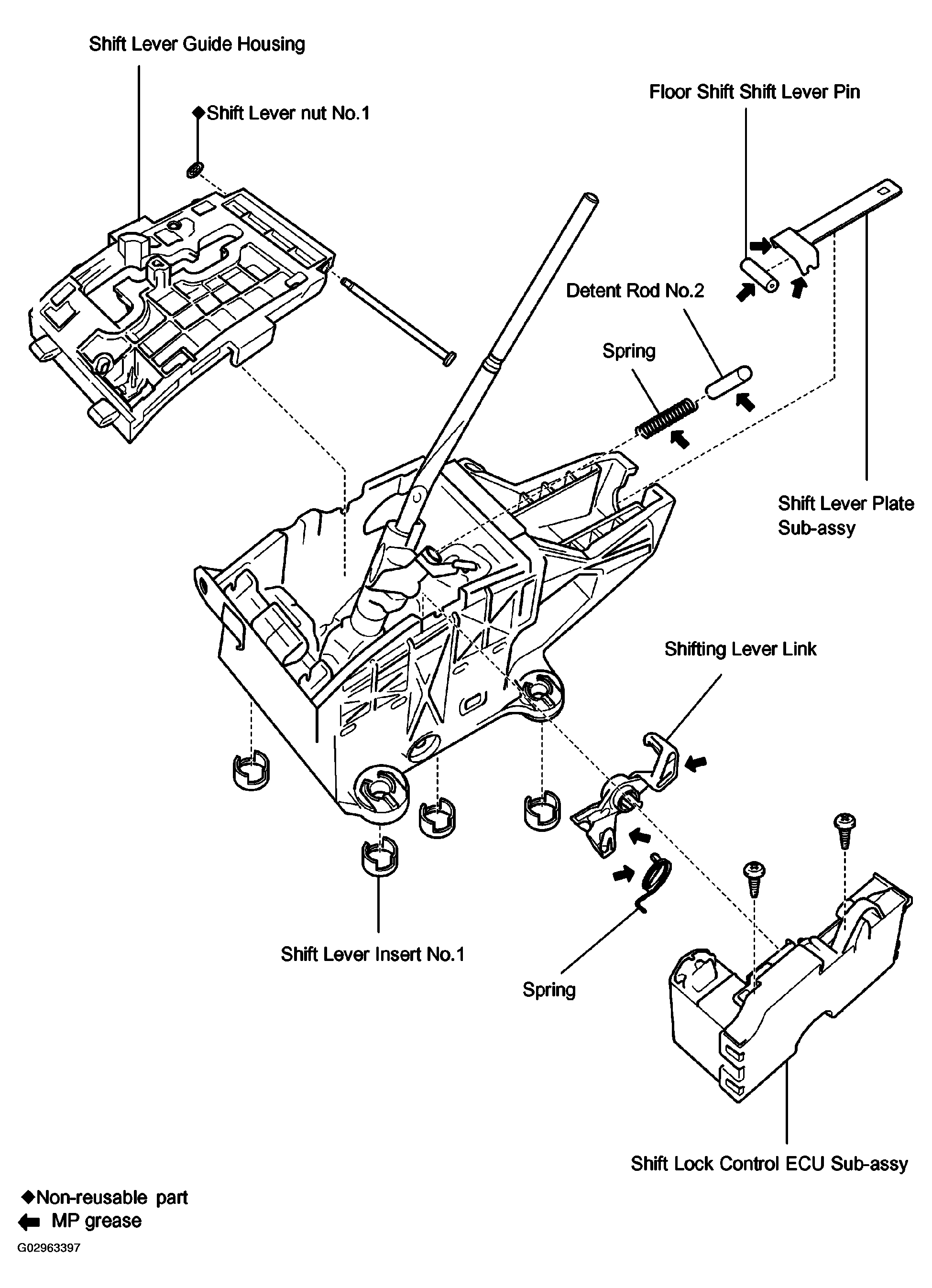

Fig 2: Identifying Floor Shift Assy Components & Replacements (2 Of 2)
G02963397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
