Brake Actuator: Components

Fig 1: Replacement Components Brake Actuator With Torque Specifications (1 Of 2)
G04047686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

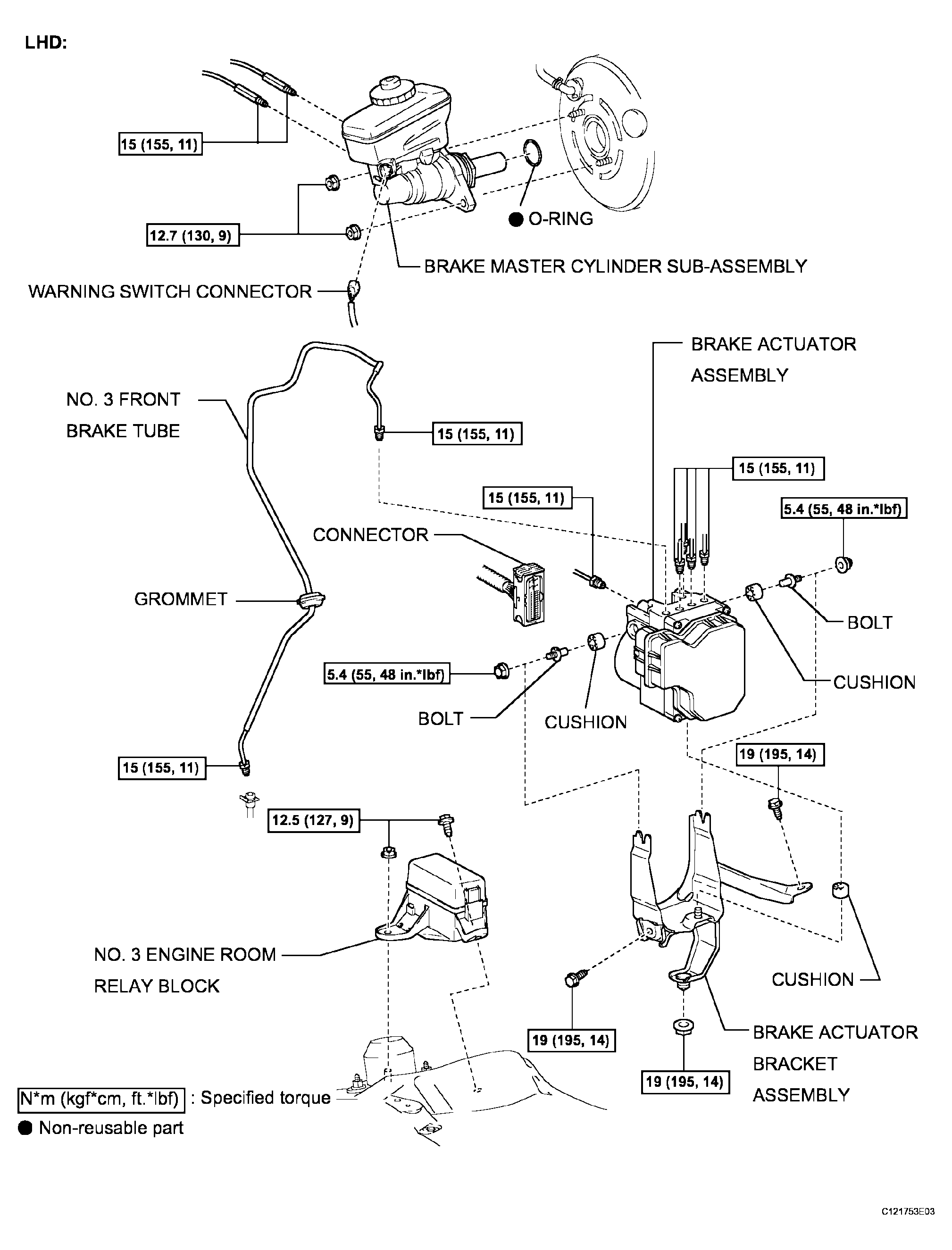

Fig 2: Replacement Components Brake Actuator With Torque Specifications (2 Of 2)
G04047687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
