Home >> Lexus >> 2006 >> IS 250 AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> 4WD Control Ecu >> Components

4WD Control Ecu: Components

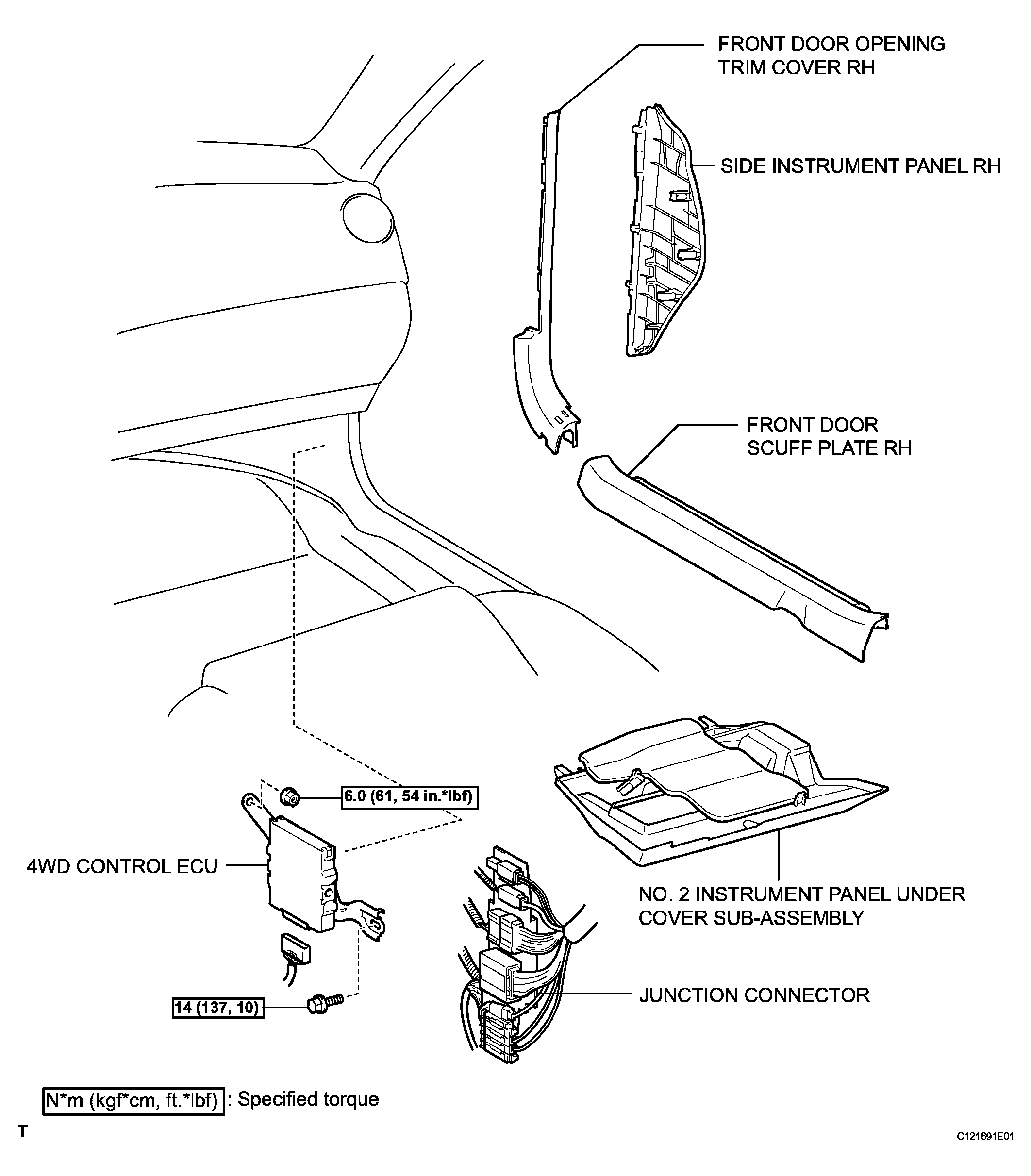

Fig 1: 4WD Control ECU Replacement Components With Torque Specifications

G04046873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
