Transfer Assembly: Components

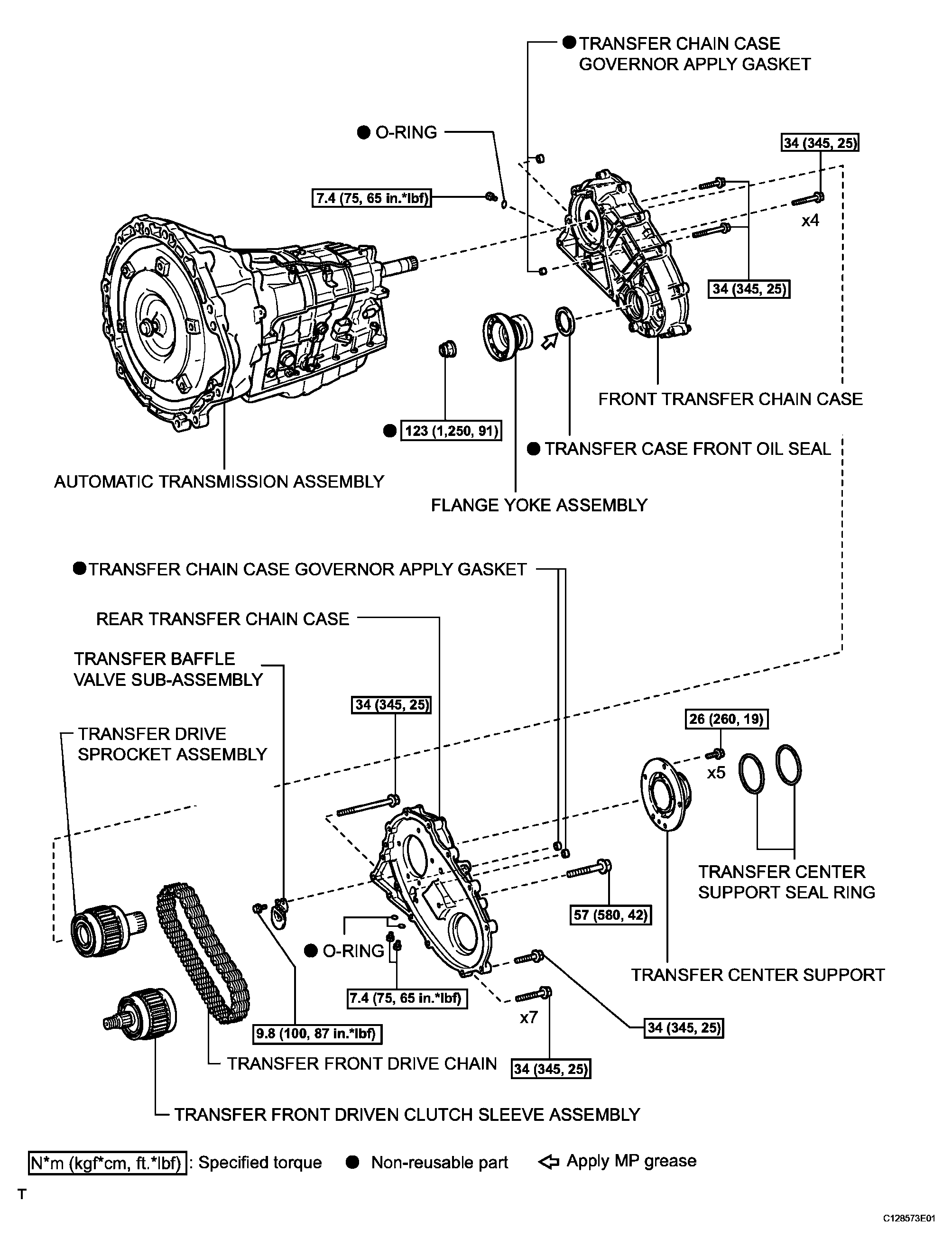

Fig 1: Exploded View Of Transfer Assembly Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Transfer Assembly Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

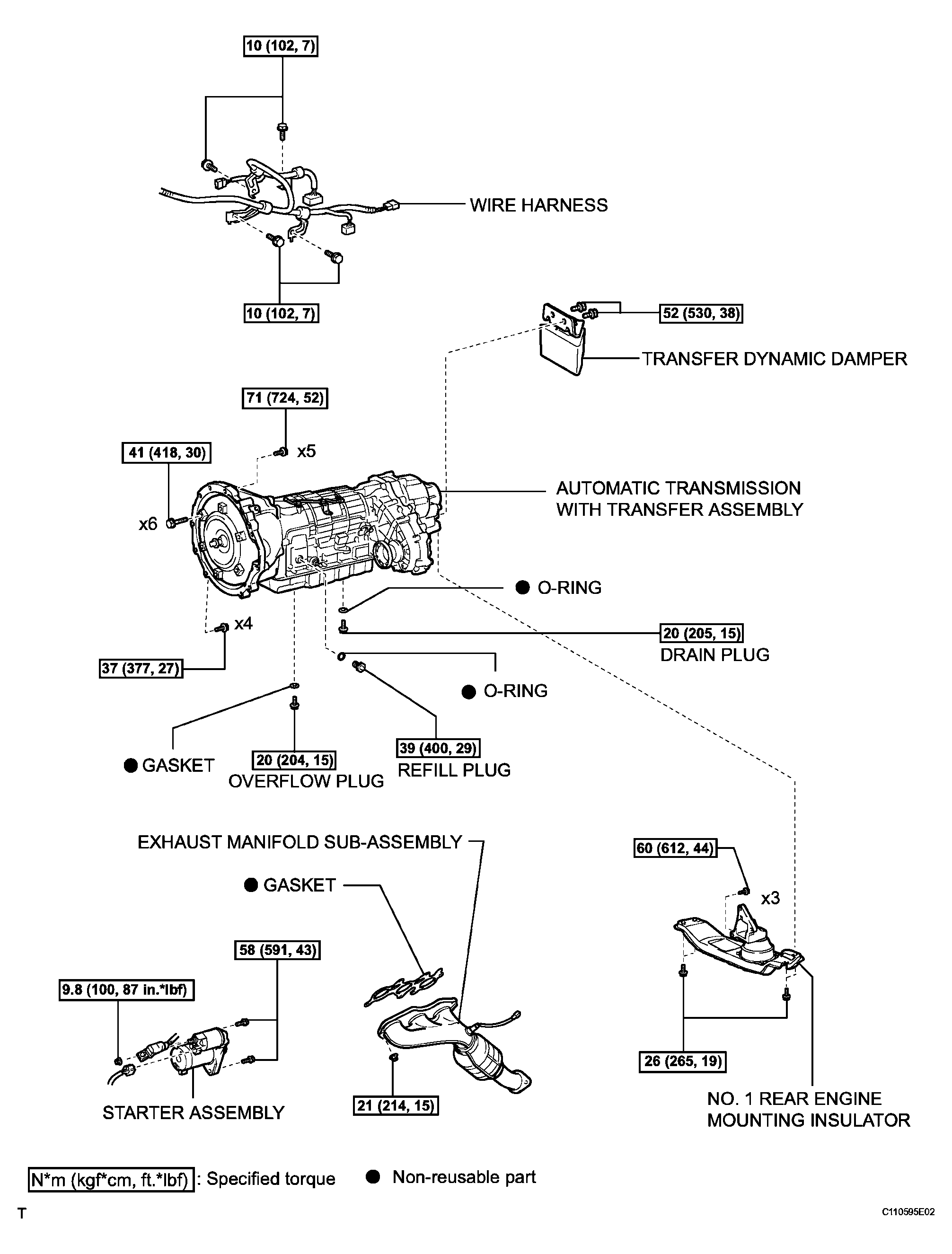

Fig 3: Exploded View Of Transfer Assembly Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

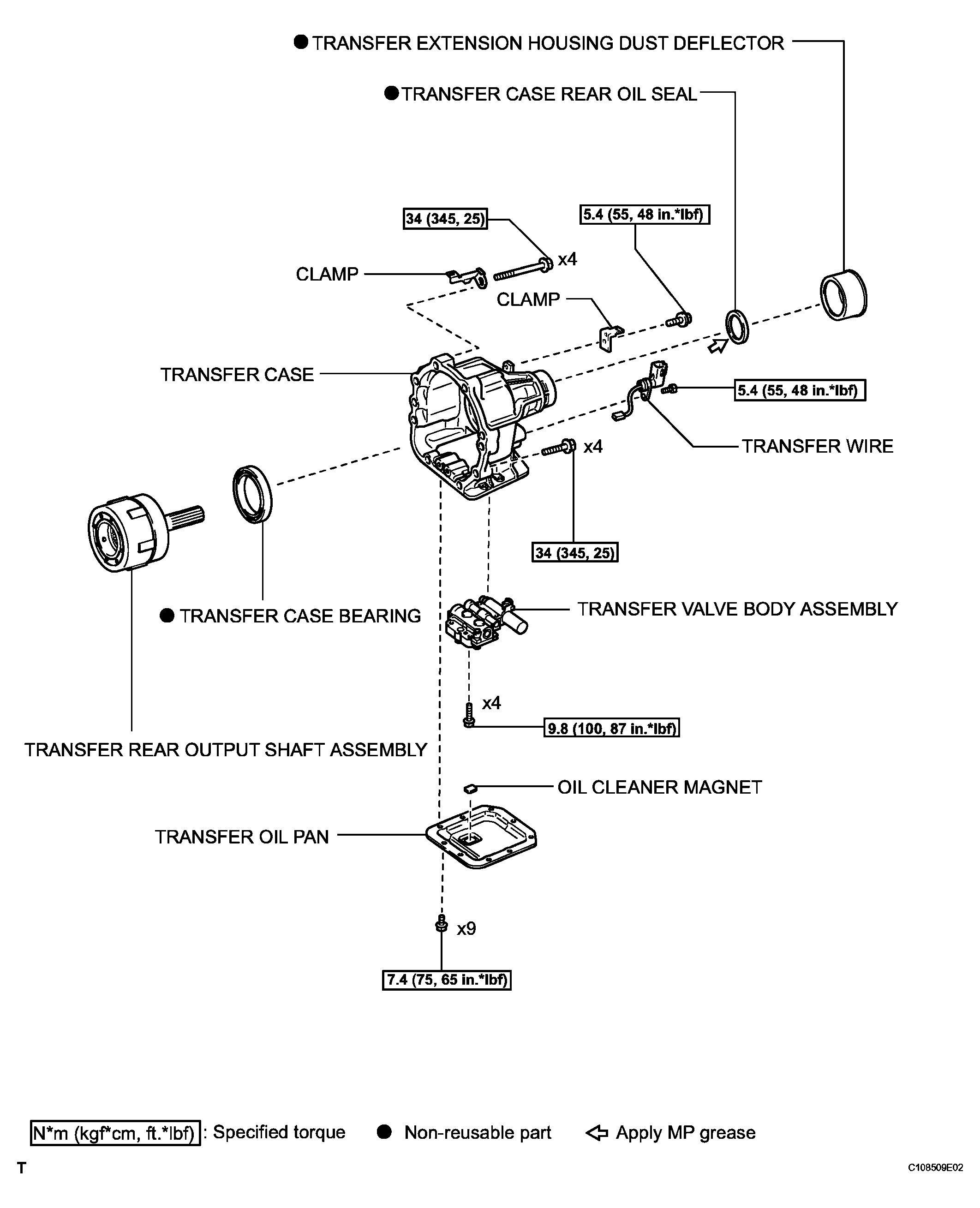

Fig 4: Exploded View Of Transfer Assembly Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

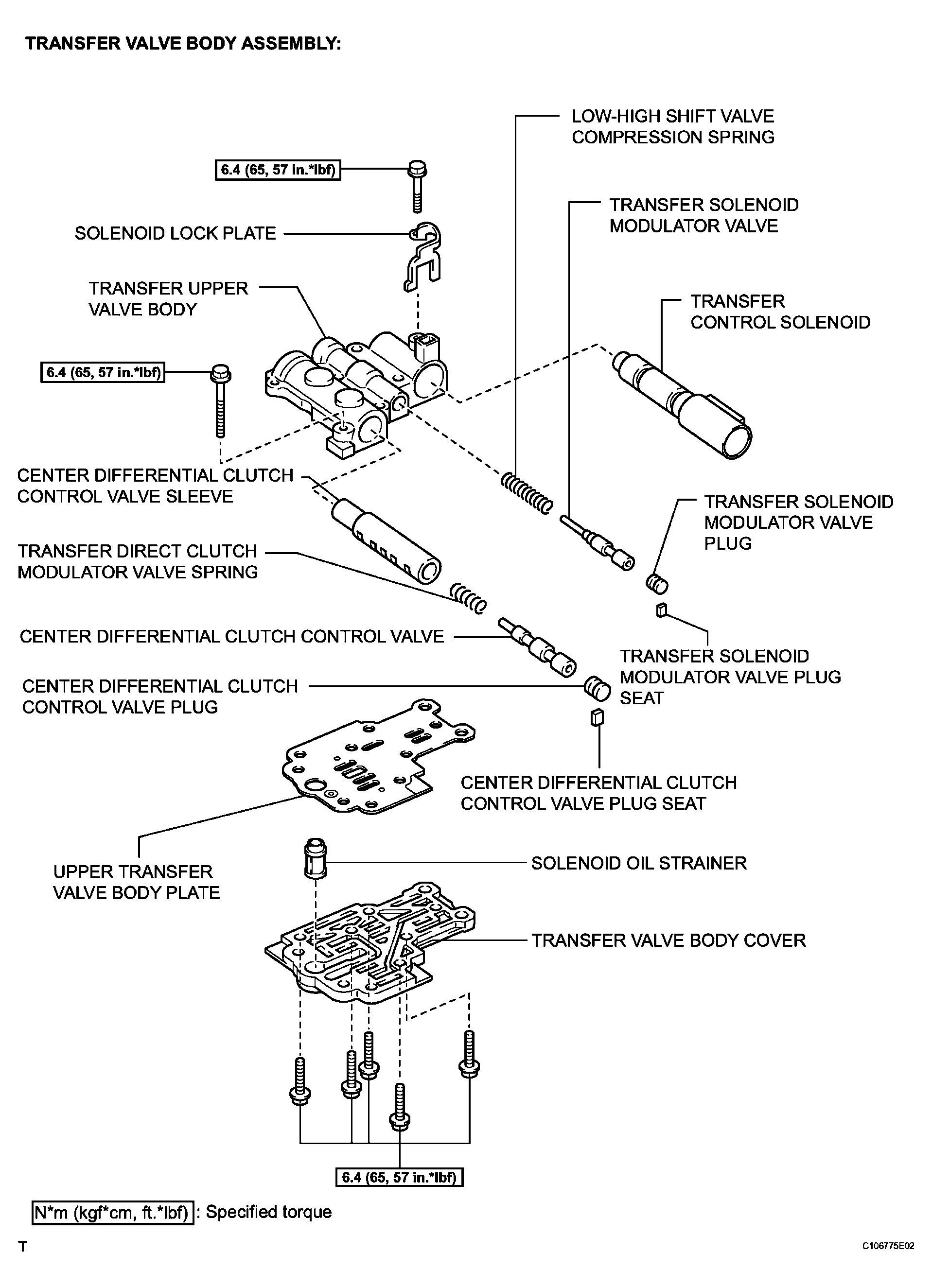

Fig 5: Exploded View Of Transfer Valve Body Assembly Components With Torque Specifications

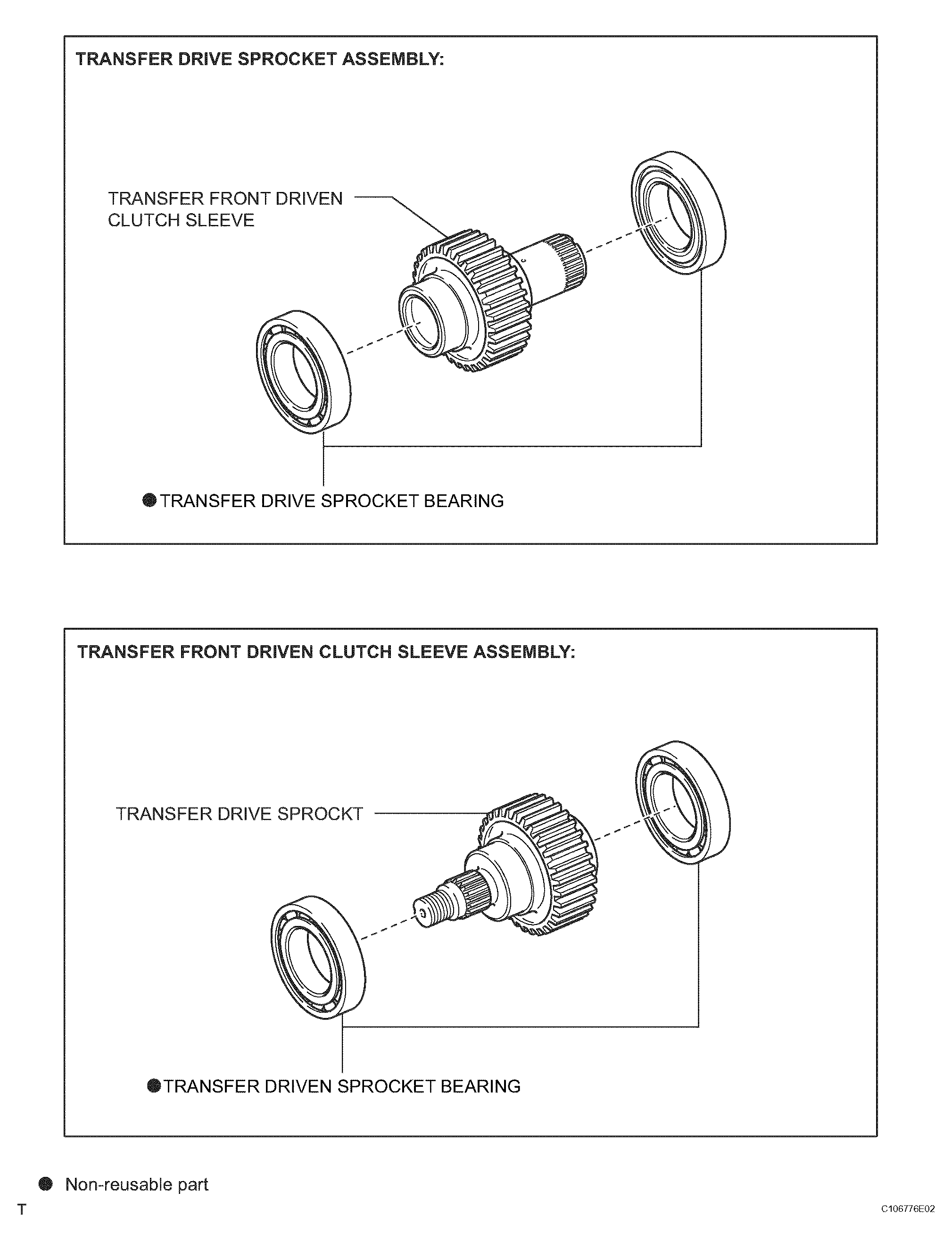

Fig 6: Exploded View Of Transfer Drive Sprocket & Transfer Front Driven Clutch Sleeve Assembly Components

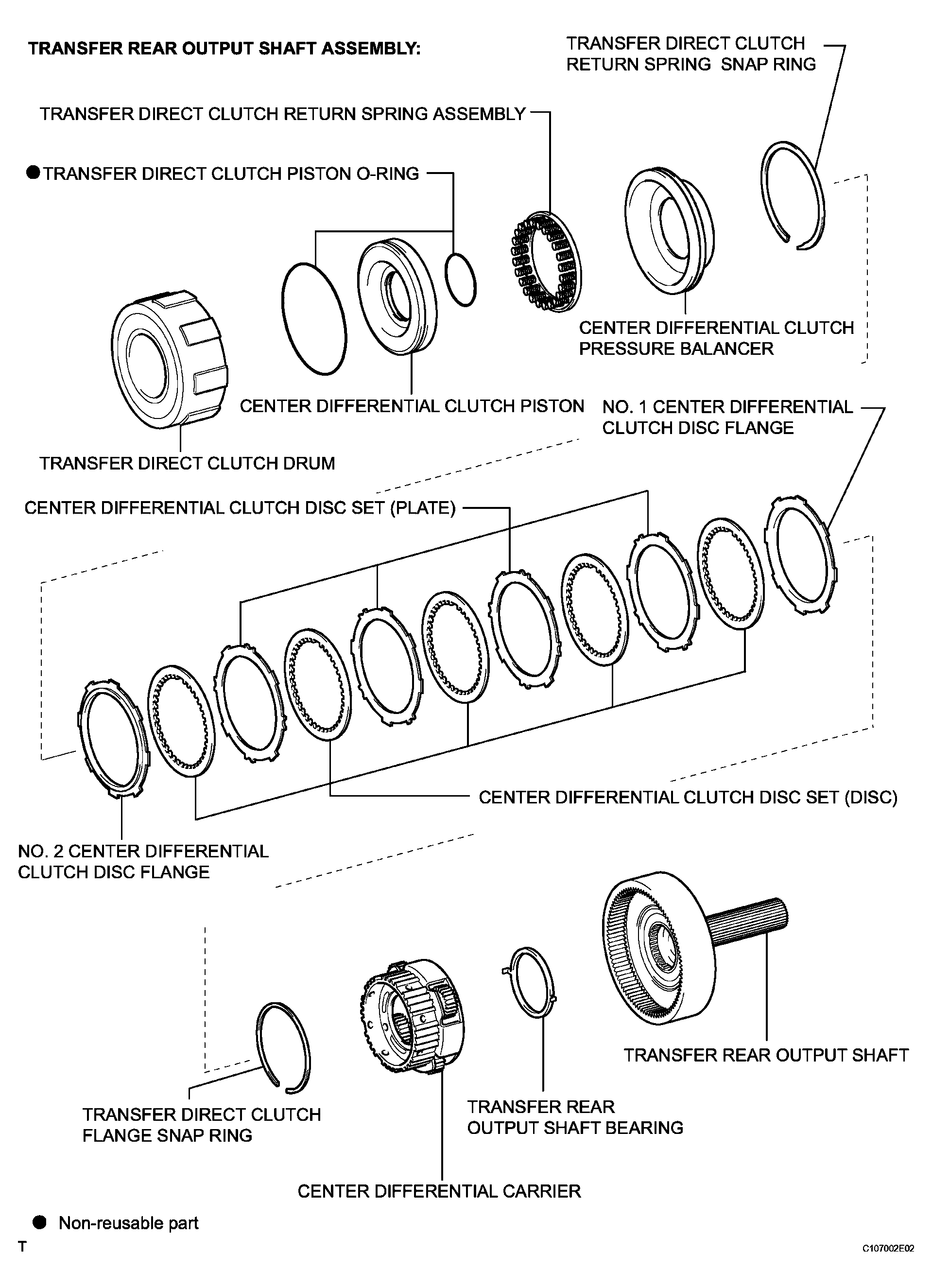

Fig 7: Exploded View Of Transfer Rear Output Shaft Assembly Components
