Transfer Valve Body Assembly: Components

Fig 1: Exploded View Of Transfer Valve Body Assembly Components With Torque Specifications (1 Of 2)
G04046848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

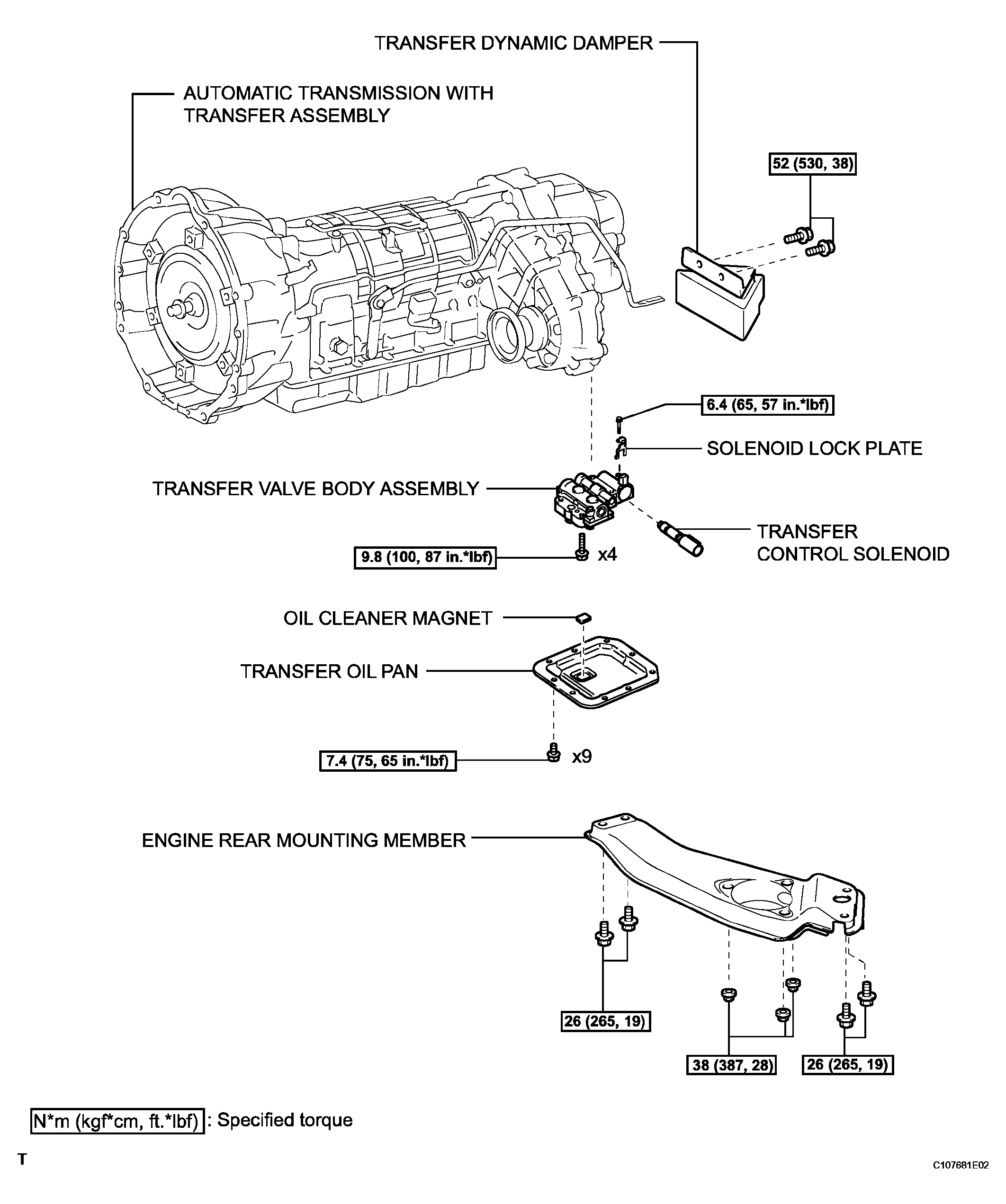

Fig 2: Exploded View Of Transfer Valve Body Assembly Components With Torque Specifications (2 Of 2)
G04046849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
