Multiplex Communication System - AVC-LAN: Notes

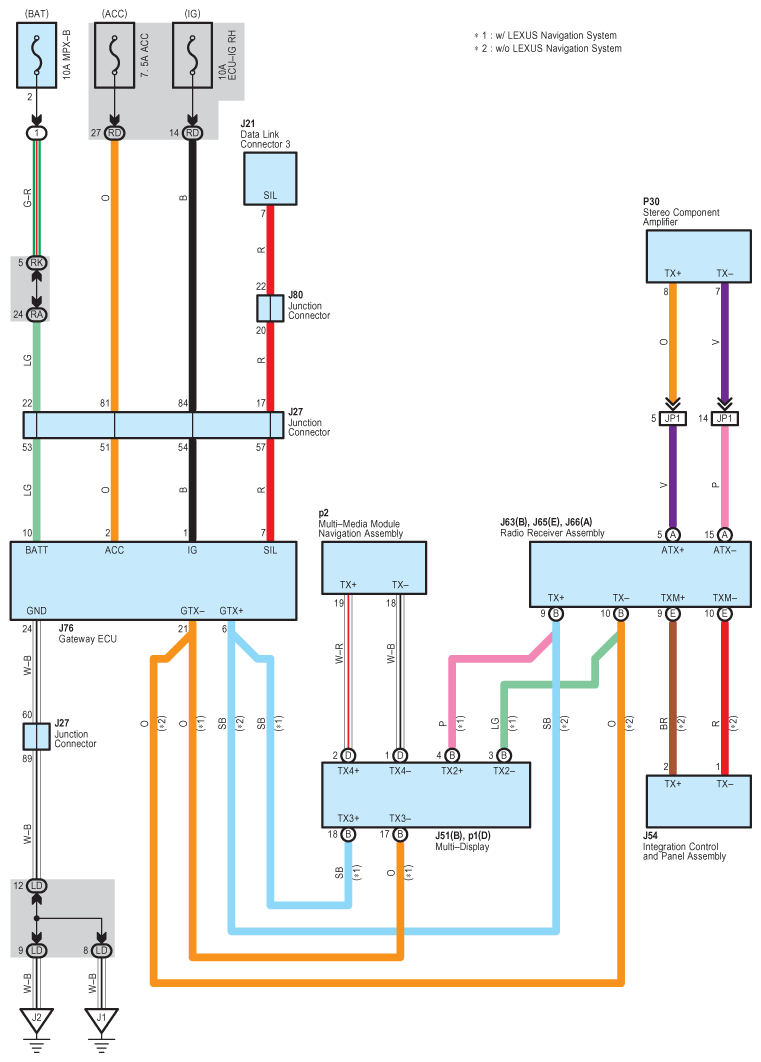

Fig 1: Multiplex Communication System - AVC-LAN - Circuit Diagram
G08927134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
