Crankshaft Position Sensor: Components

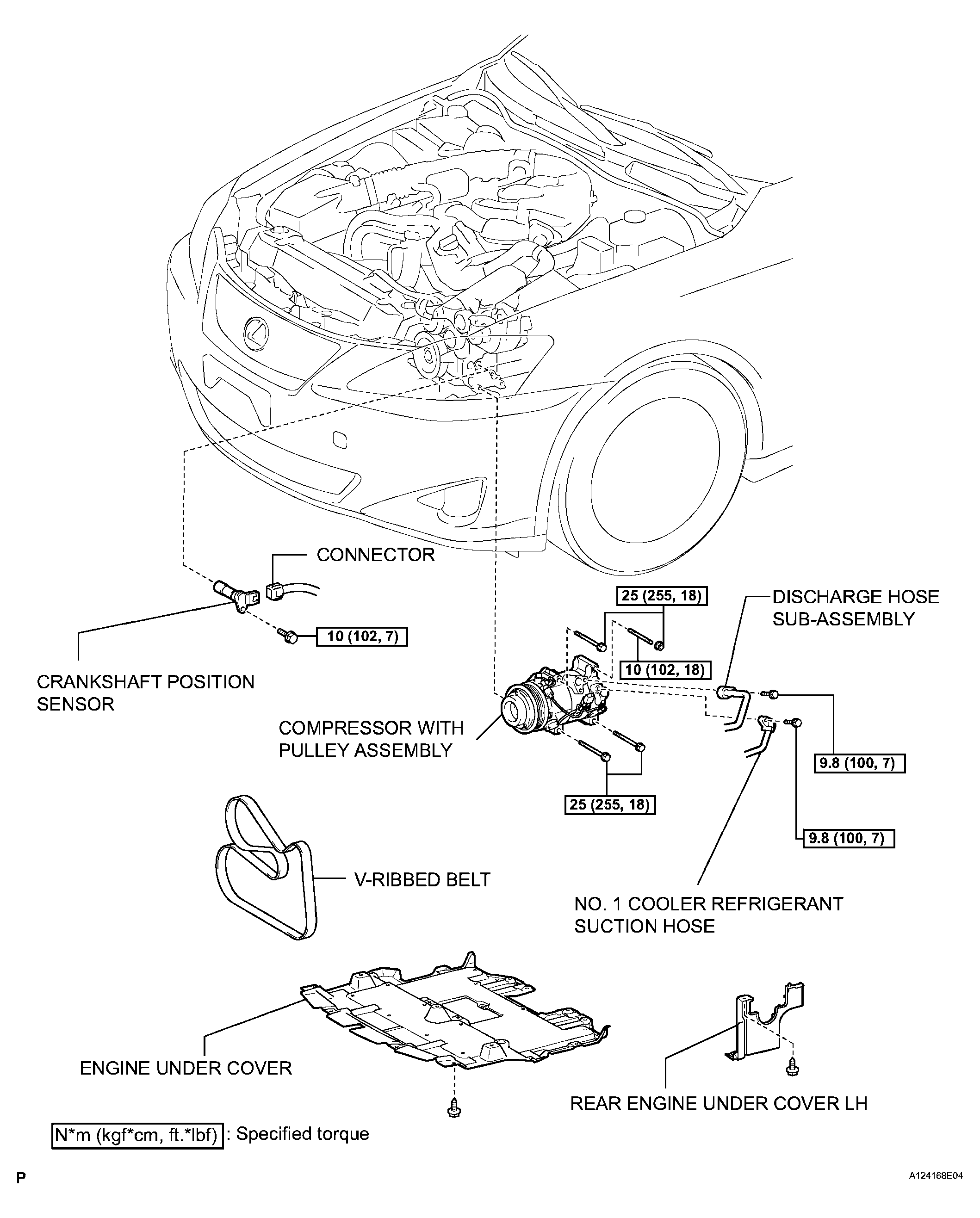

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

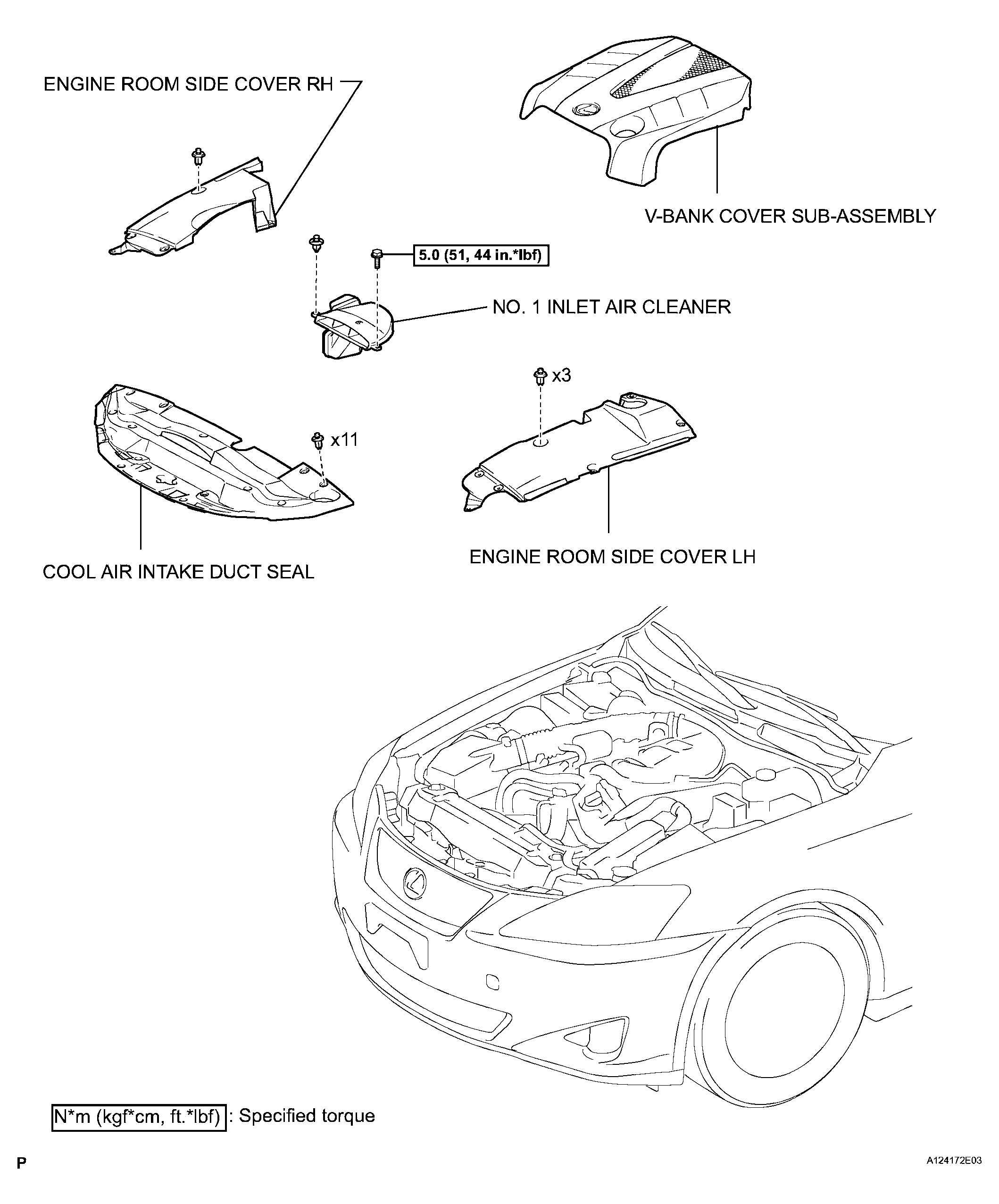

Fig 2: Crankshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
