Parts Location

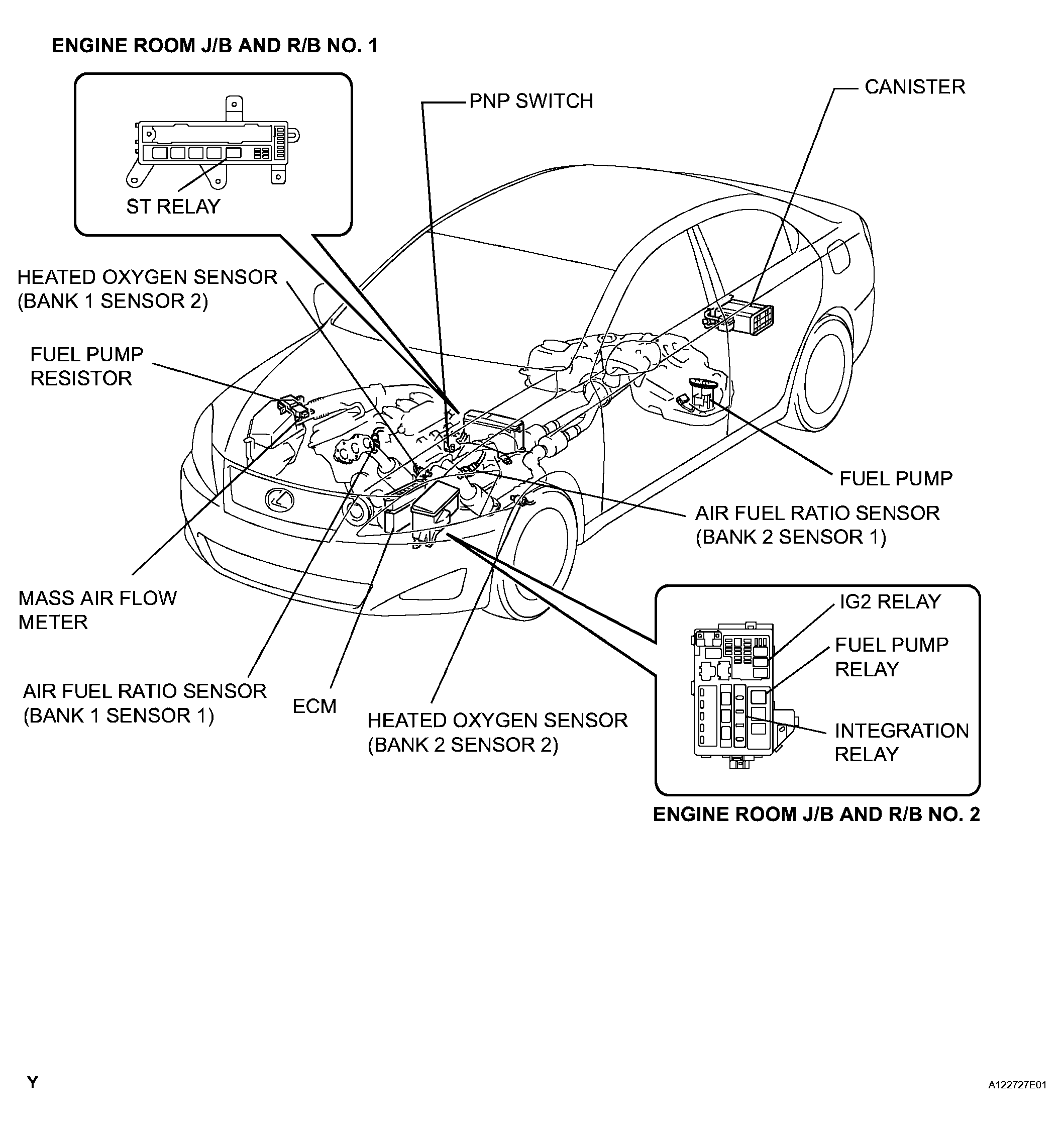

Fig 1: Identifying 2GR-FSE Engine Control System - SFI System Parts Location (1 Of 3)
G04054490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

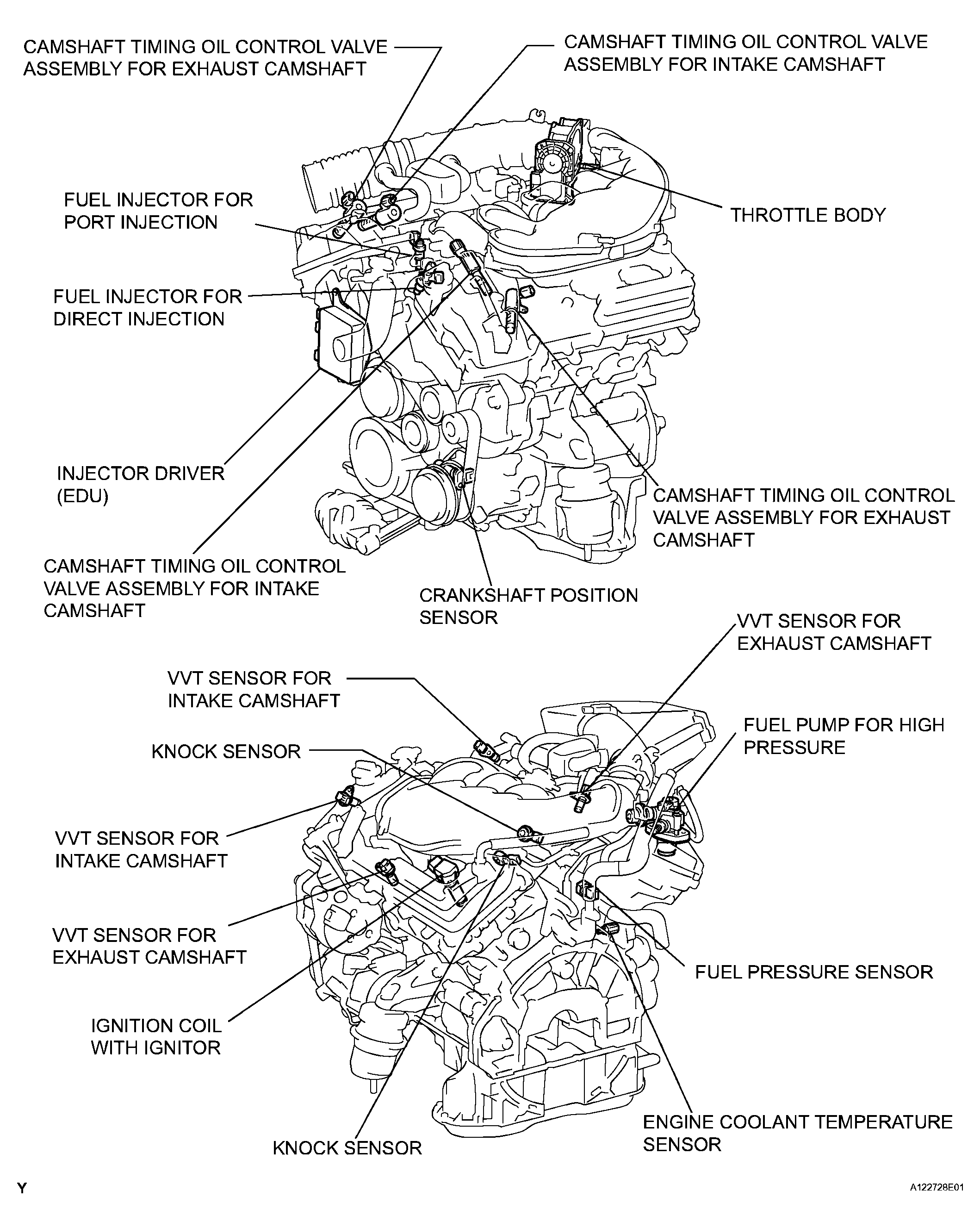

Fig 2: Identifying 2GR-FSE Engine Control System - SFI System Parts Location (2 Of 3)
G04054491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

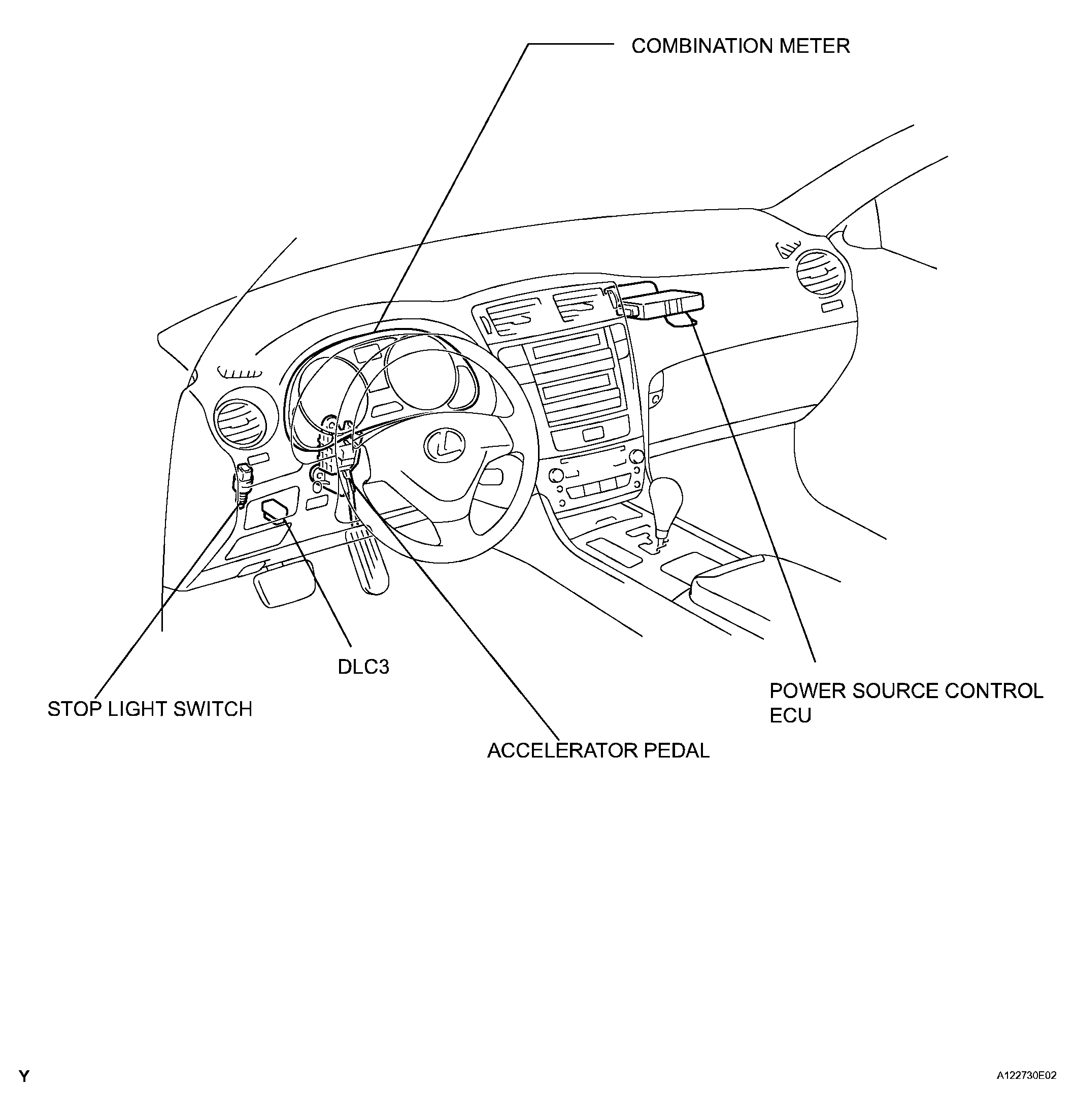

Fig 3: Identifying 2GR-FSE Engine Control System - SFI System Parts Location (3 Of 3)
G04054492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
