Home >> Lexus >> 2006 >> IS 350 >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2GR-FSE) >> Throttle Body >> Components

Throttle Body: Components

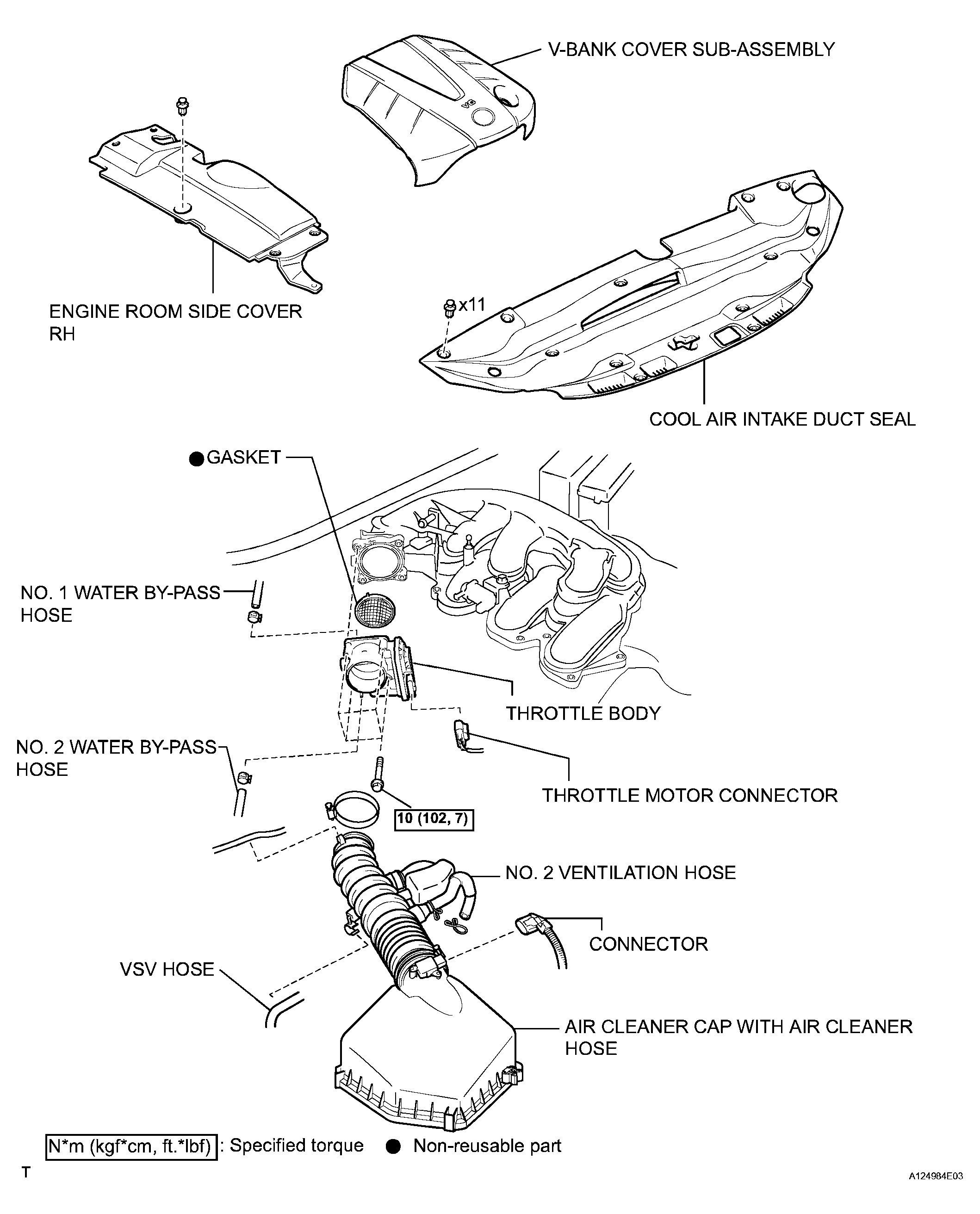

Fig 1: Throttle Body Replacement Components With Torque Specifications

G04054952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
