Home >> Lexus >> 2006 >> IS 350 >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2GR-FSE) >> VVT Sensor >> Components

VVT Sensor: Components

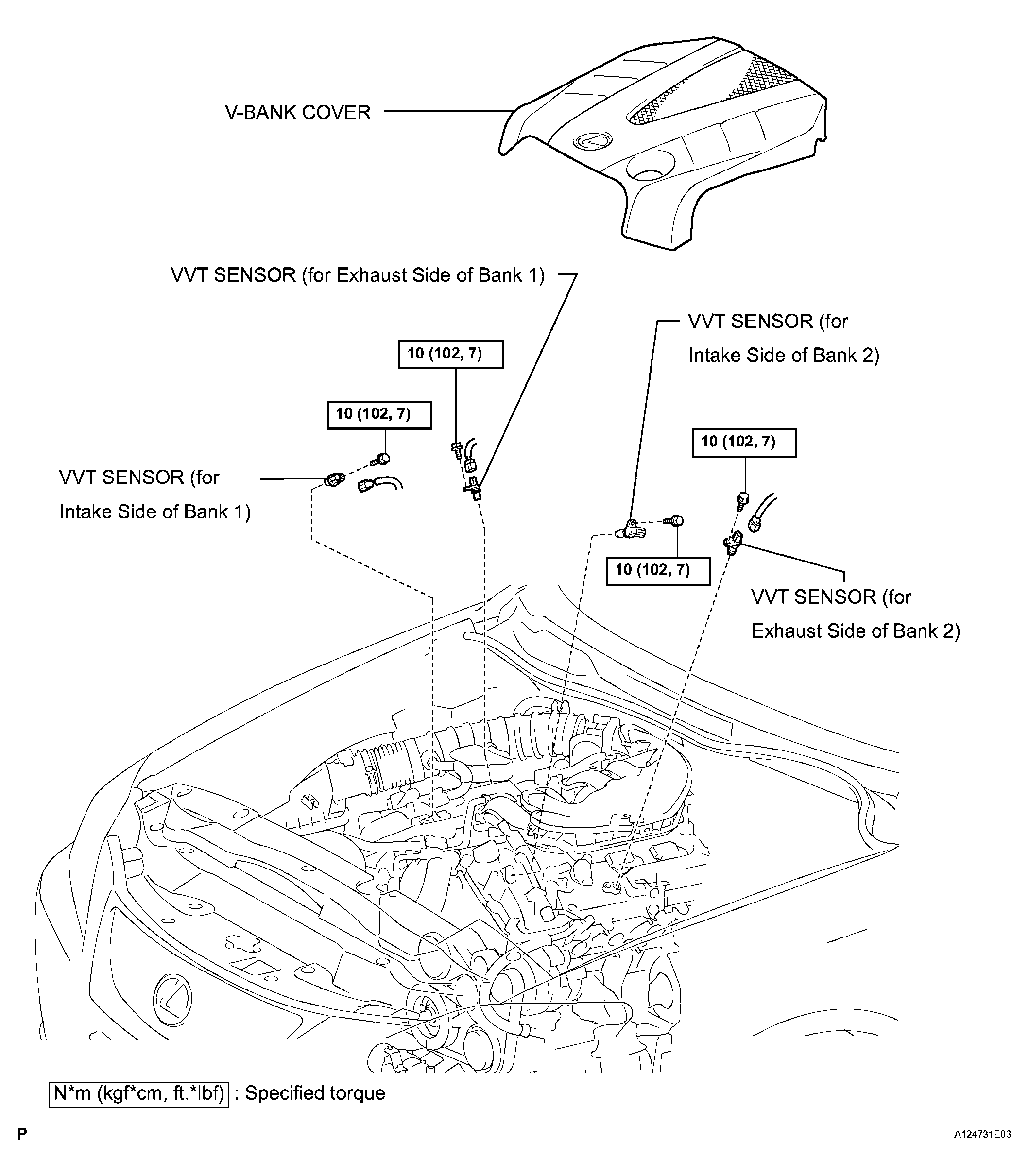

Fig 1: VVT Sensor Replacement Components With Torque Specifications

G04054931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
