Front Axle Hub Bolt: Components

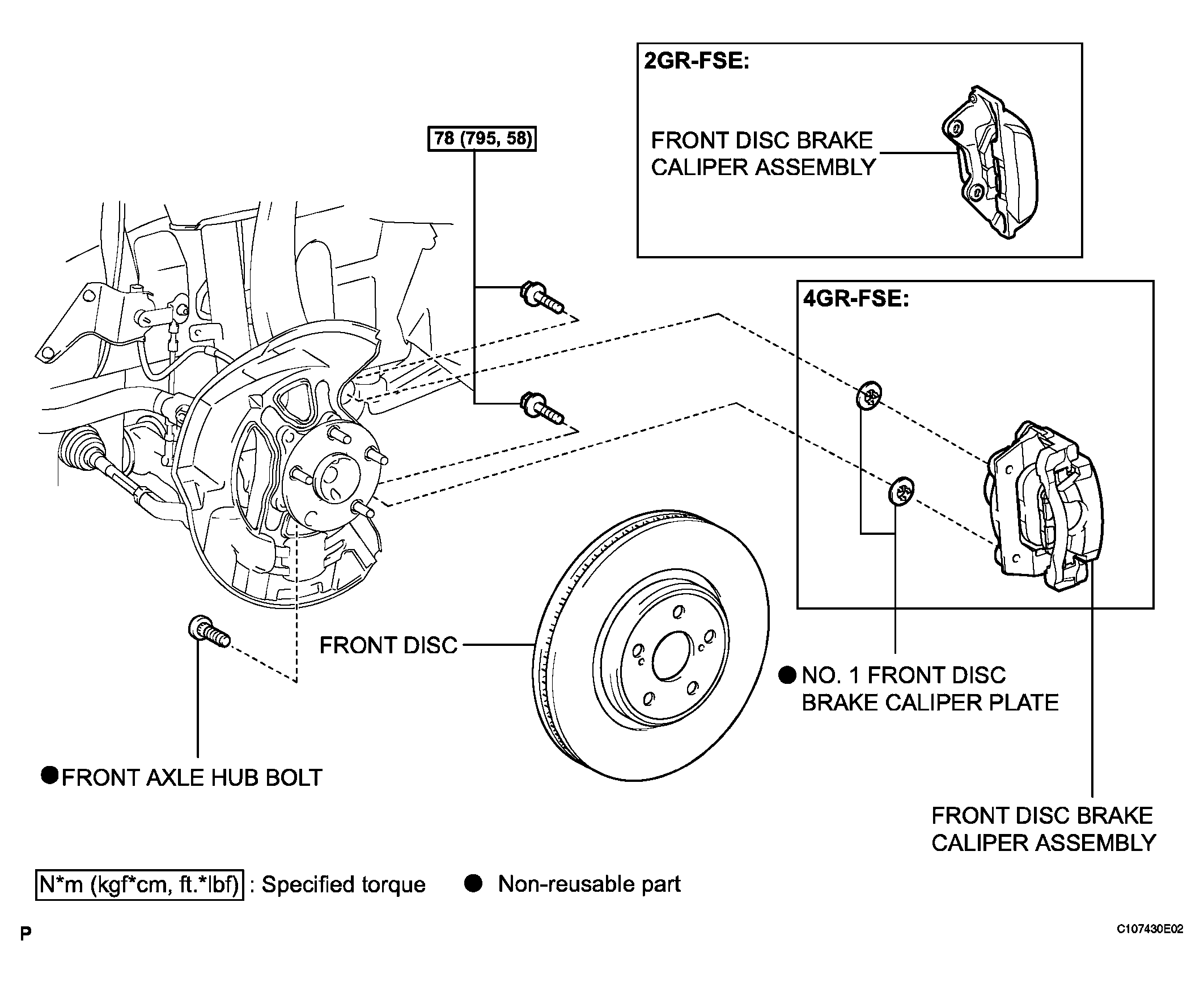

Fig 1: Front Axle Hub Bolt With Torque Specifications
G04053700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
