Home >> Lexus >> 2006 >> IS 350 >> Repair and Diagnosis >> Suspension >> Front Suspension >> Axle >> Front Axle Hub >> Components

Front Axle Hub: Components

Fig 1: Front Axle Hub Replacement Components With Torque Specifications (2WD)
G04053703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

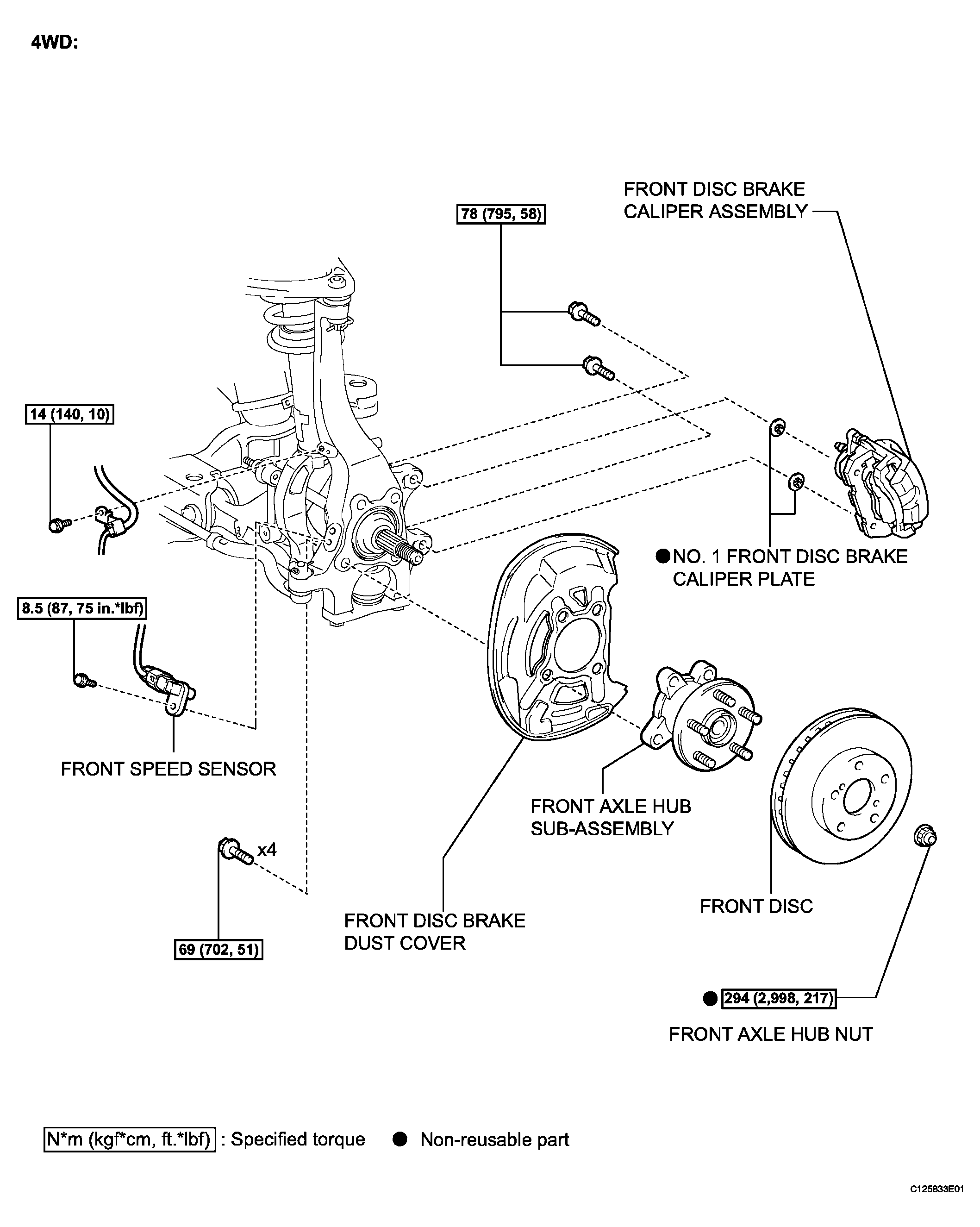

Fig 2: Front Axle Hub Replacement Components With Torque Specifications (4WD)
G04053704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
