Rear Axle Hub: Components

Fig 1: Exploded View Of Rear Axle Hub Components With Torque Specifications (2GR-FSE)
G04053737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Rear Axle Hub Components With Torque Specifications [4GR-FSE] (1 Of 2)
G04053738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

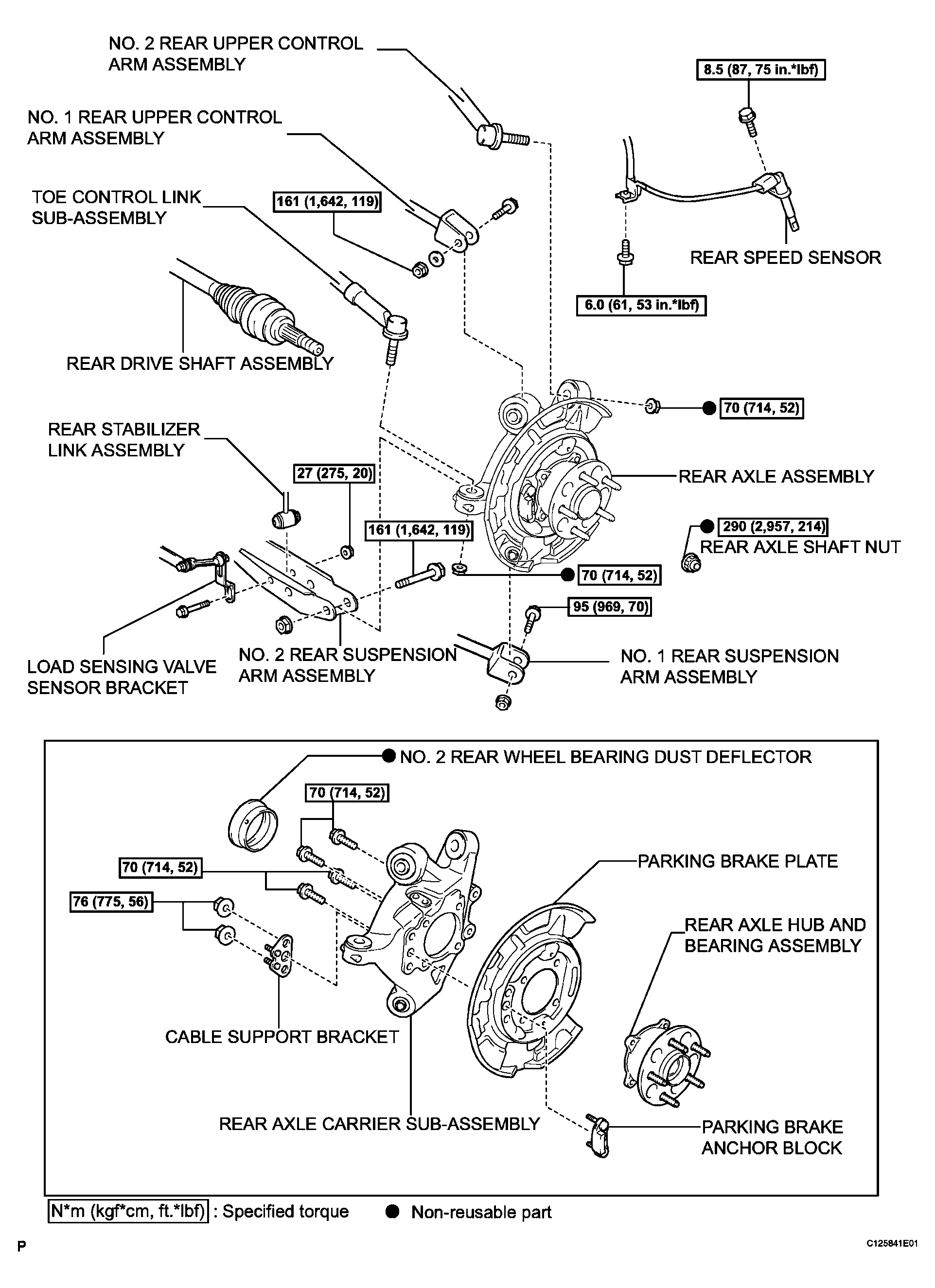

Fig 3: Exploded View Of Rear Axle Hub Components With Torque Specifications [4GR-FSE] (2 Of 2)
G04053739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
