Home >> Lexus >> 2006 >> IS 350 >> Repair and Diagnosis >> Suspension >> Front Suspension >> Axle >> Steering Knuckle >> Components

Steering Knuckle: Components

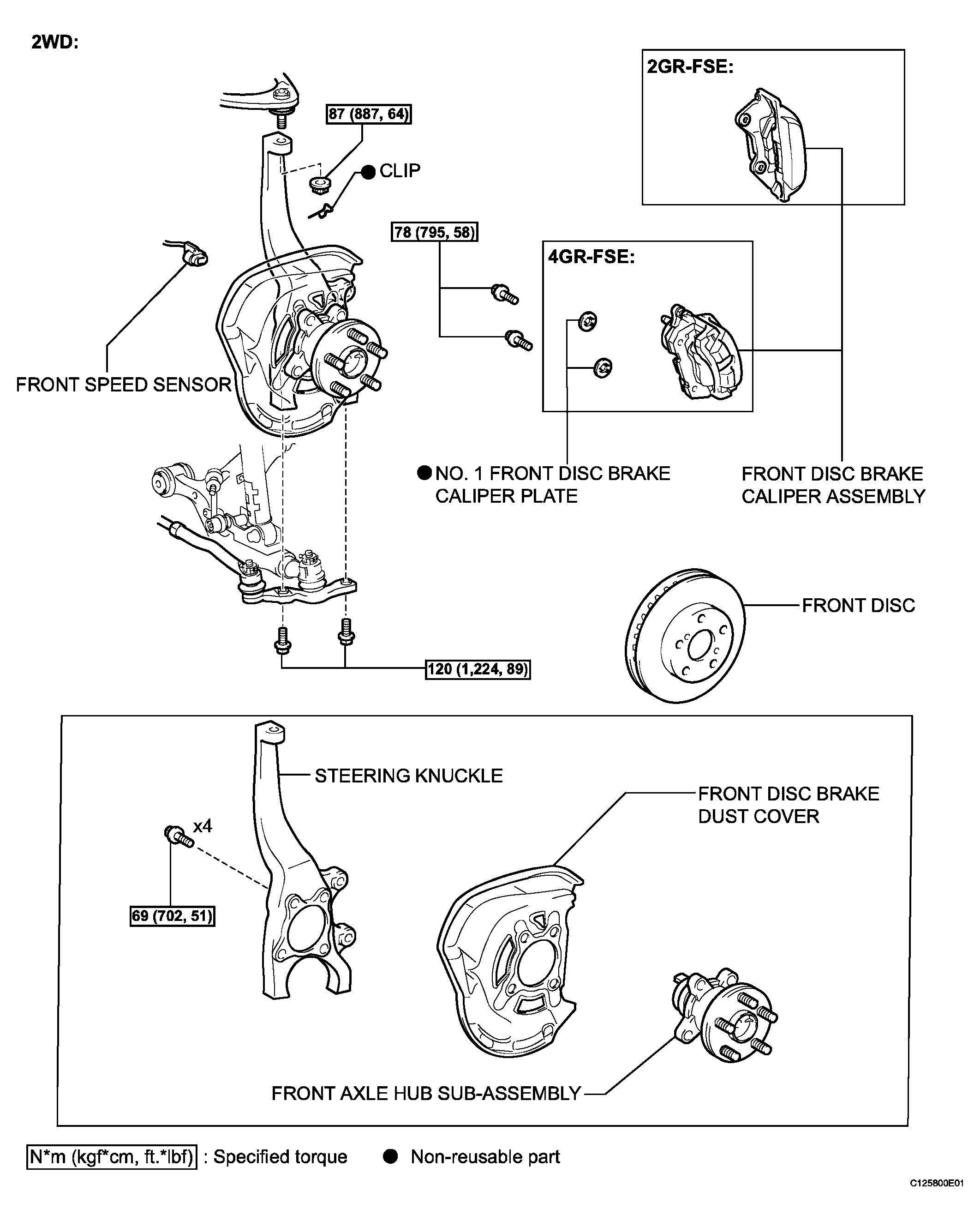

Fig 1: Steering Knuckle Replacement Components With Torque Specifications (2WD)
G04053721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

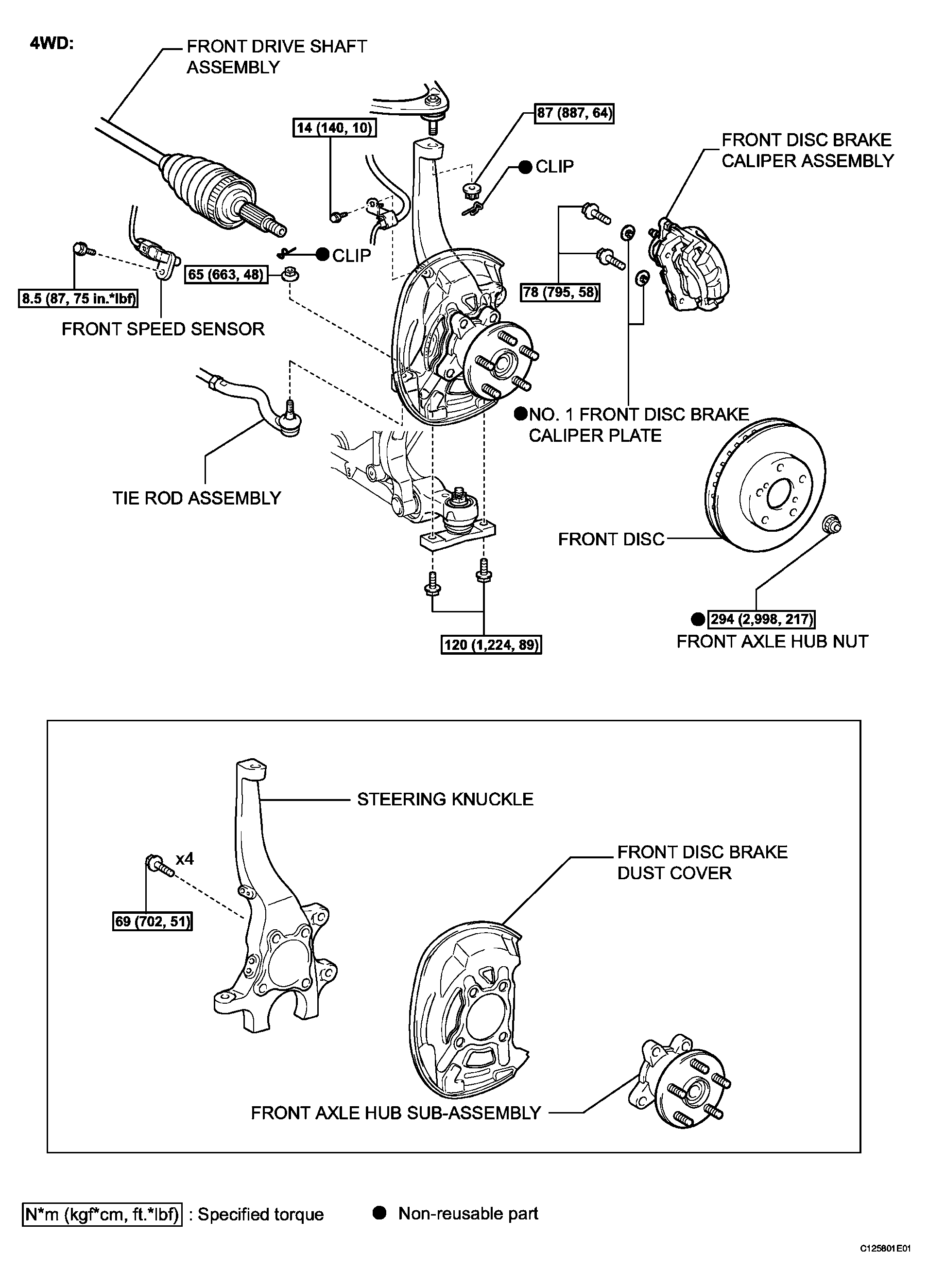

Fig 2: Steering Knuckle Replacement Components With Torque Specifications (4WD)
G04053722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
