Pattern Select Switch: Inspection

  1. INSPECT PATTERN SELECT SWITCH
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Switch Condition Tester Connection Specified Condition
      Pattern select switch (PWR) 3 - 7 Below 1 Ω
      Pattern select switch (NORM) 3 - 7 10 kΩ or higher
      Press continuously Pattern select switch (SNOW) 1 - 3 Below 1 Ω
      Release Pattern select switch (SNOW) 1 - 3 10 kΩ or higher

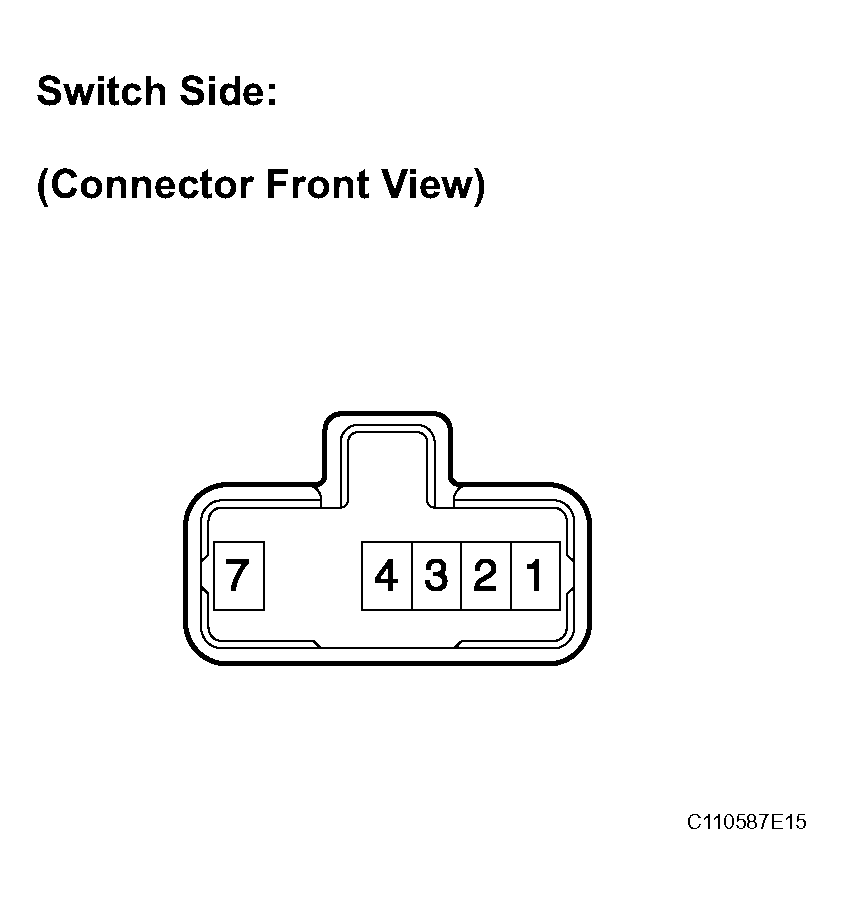

      Fig 1: Inspecting Pattern Select Switch
      G04053066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the resistance value is not as specified, replace the pattern select switch.
