Speed Sensor: Inspection

  1. INSPECT TRANSMISSION REVOLUTION SENSOR (NT)
    1. Measure the resistance according to the value(s) in the table below.
      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition (20°C (68°F))
      1 - 2 560 to 680 Ω

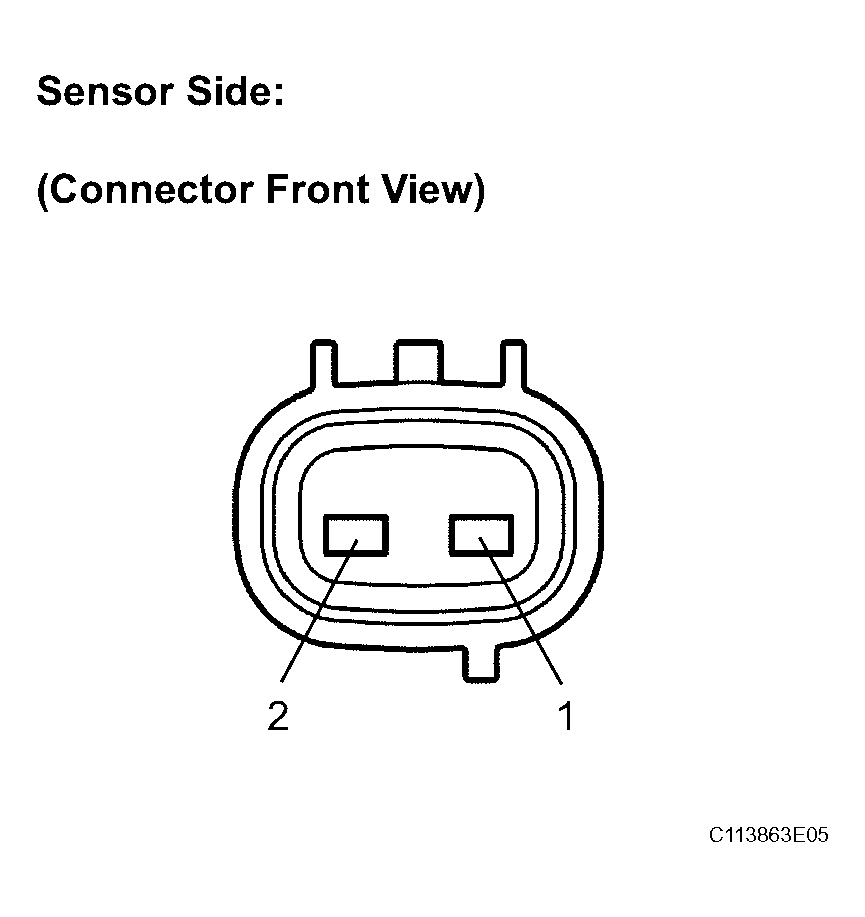

      Fig 1: Inspecting Transmission Revolution Sensor (NT)
      G04052985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the resistance value is not as specified, replace the speed sensor.

  2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)
    1. Measure the resistance according to the value(s) in the table below.
      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition (20°C (68°F))
      1 - 2 560 to 680 Ω

      If the resistance value is not as specified, replace the speed sensor.

      Fig 2: Inspecting Transmission Revolution Sensor (SP2)
      G04052986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
