Automatic Air Conditioning (Front): Notes

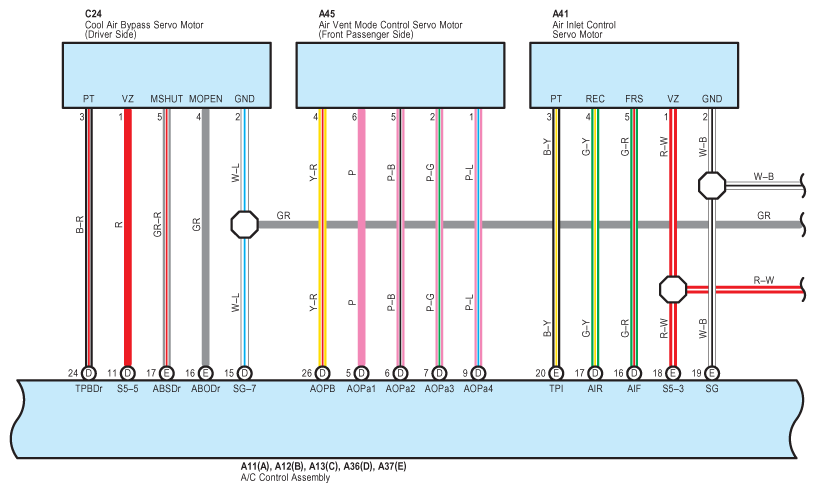

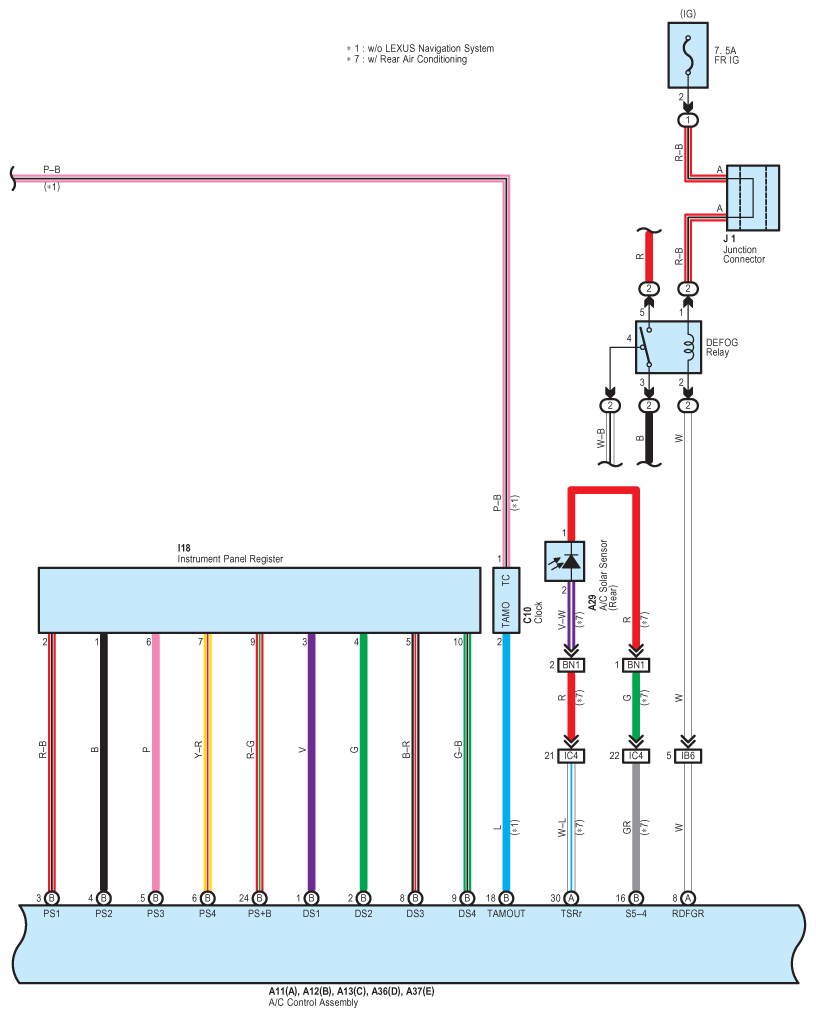

Fig 1: Automatic Air Conditioning (Front) System Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

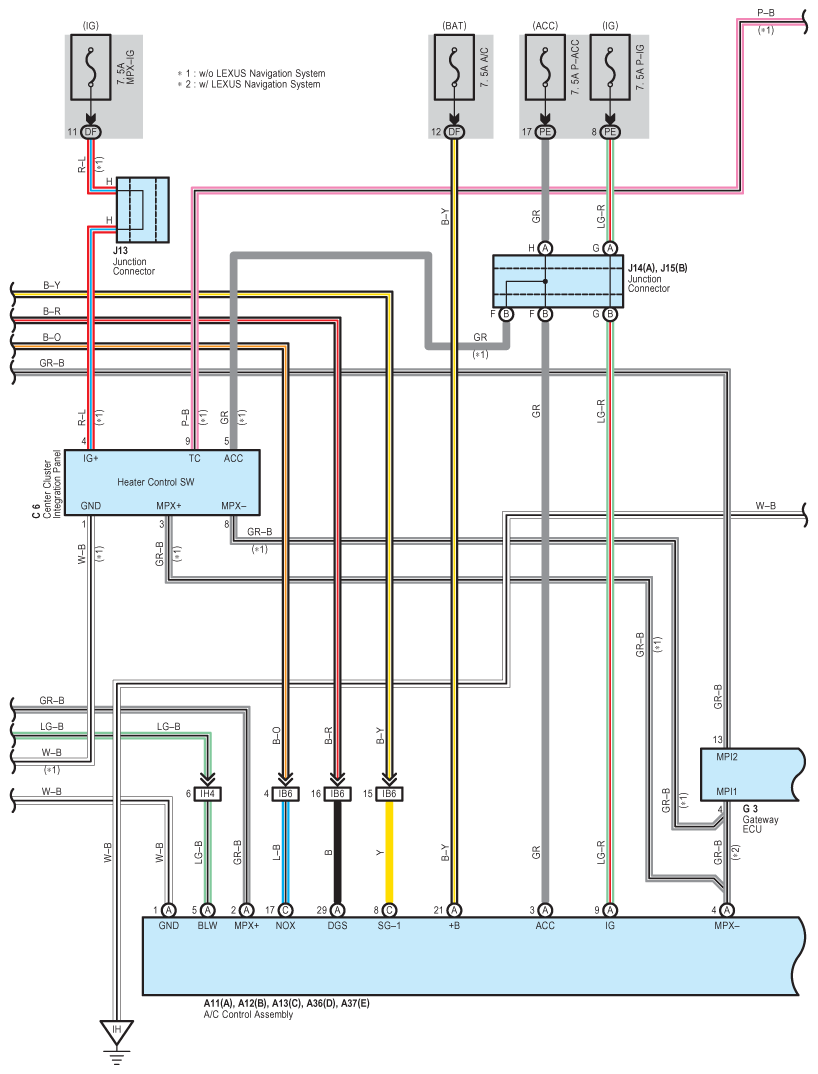

Fig 2: Automatic Air Conditioning (Front) System Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

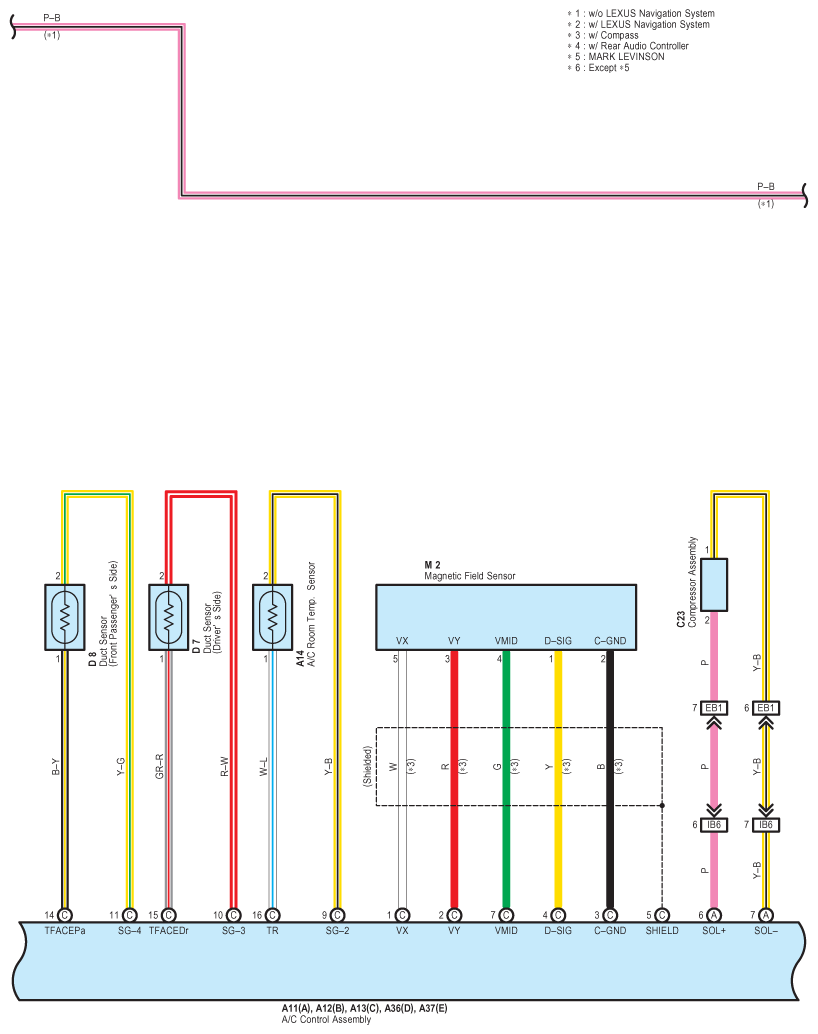

Fig 3: Automatic Air Conditioning (Front) System Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

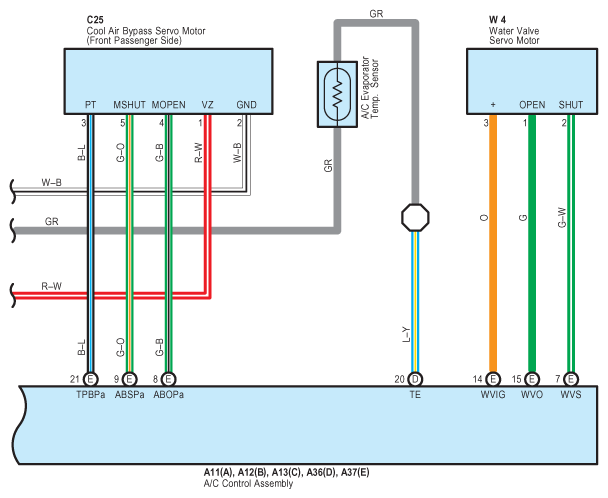

Fig 4: Automatic Air Conditioning (Front) System Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

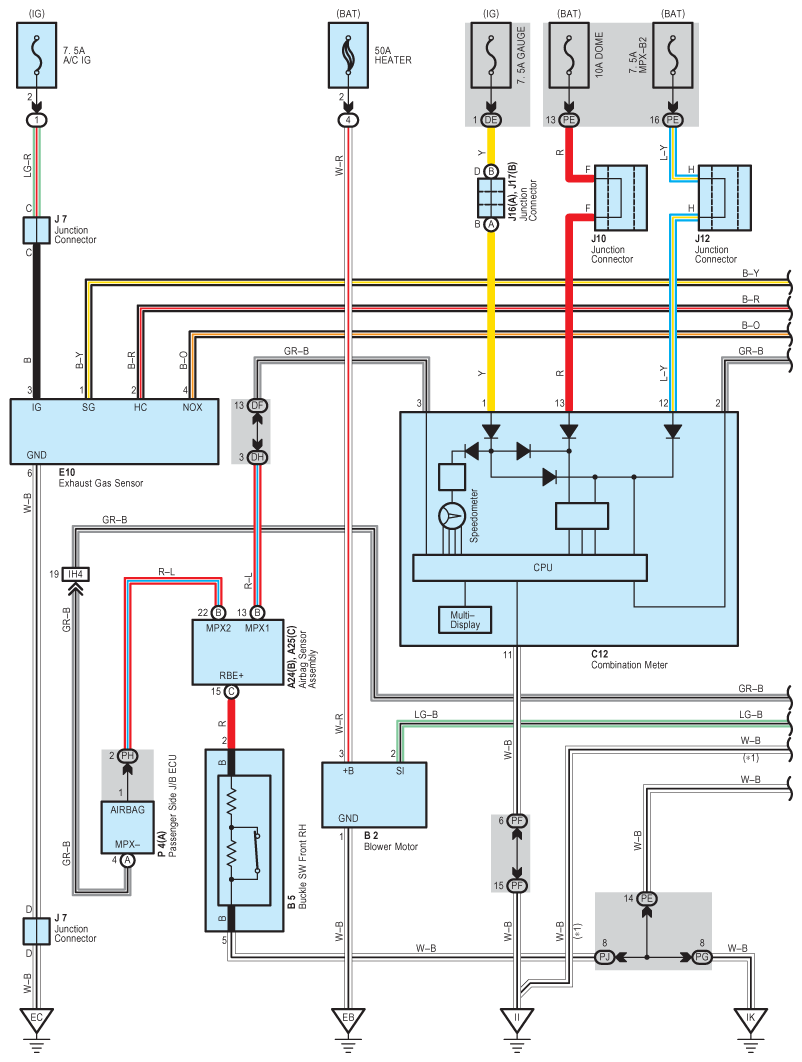

Fig 5: Automatic Air Conditioning (Front) System Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

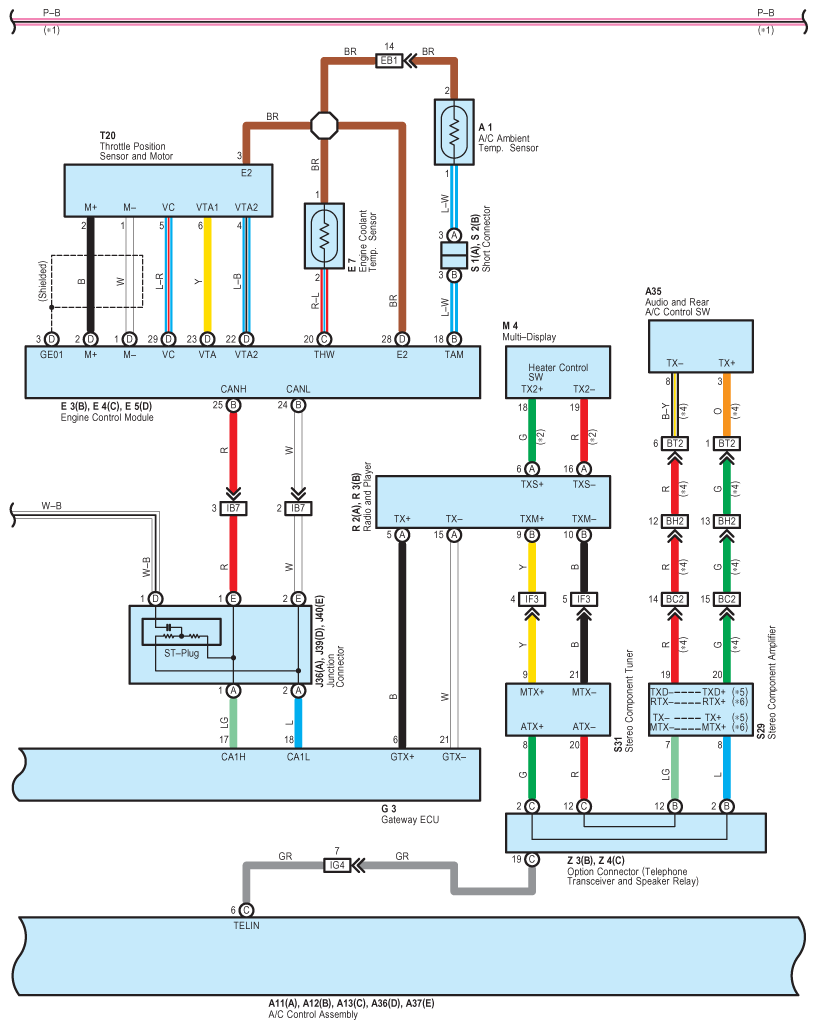

Fig 6: Automatic Air Conditioning (Front) System Wiring Diagram (6 Of 9)

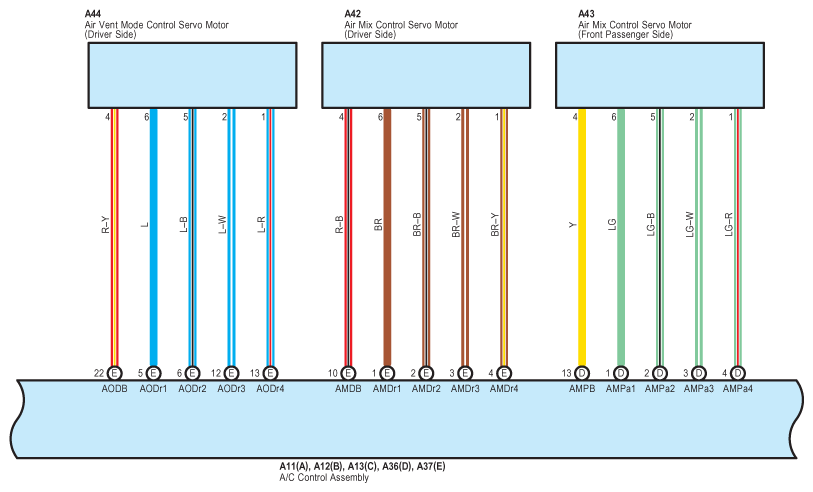

Fig 7: Automatic Air Conditioning (Front) System Wiring Diagram (7 Of 9)

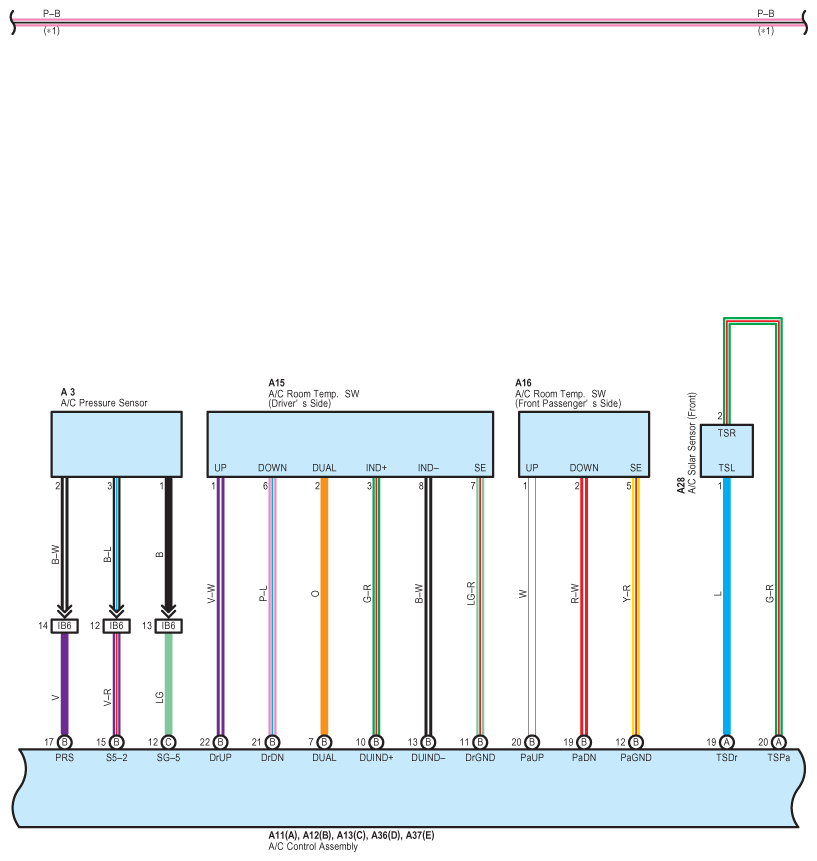

Fig 8: Automatic Air Conditioning (Front) System Wiring Diagram (8 Of 9)

Fig 9: Automatic Air Conditioning (Front) System Wiring Diagram (9 Of 9)
