Home >> Lexus >> 2006 >> LS 430 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Back-Up Light >> Notes

Back-Up Light: Notes

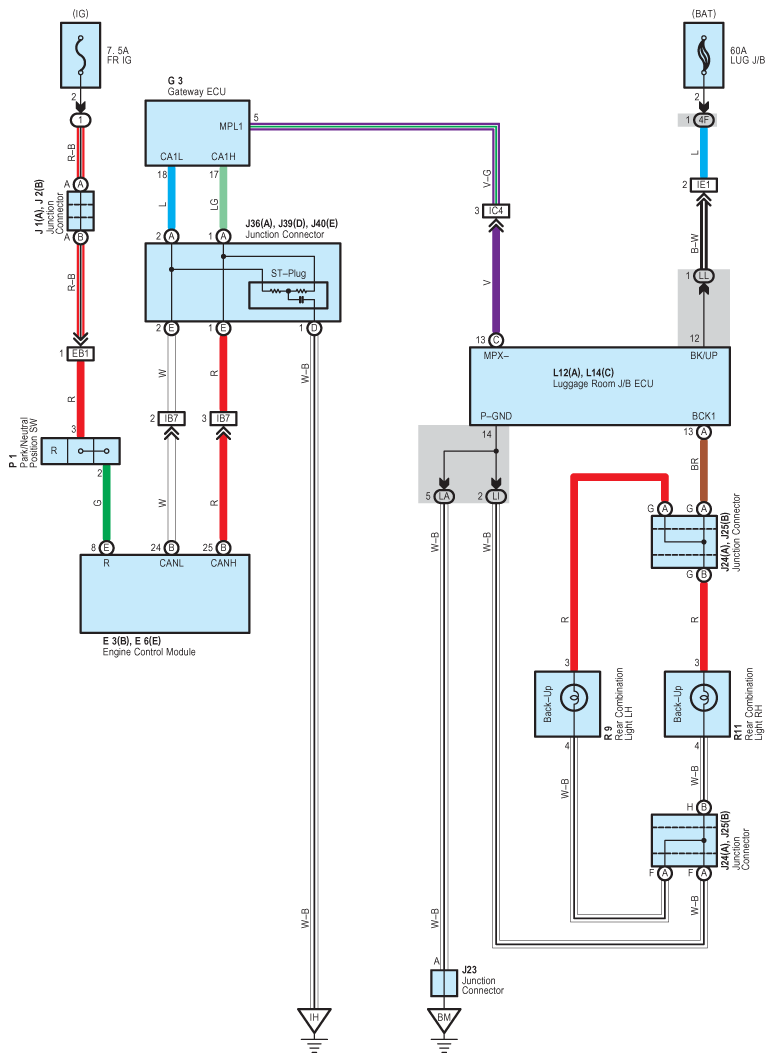

Fig 1: Back-Up Light System Wiring Diagram
G08913753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
