Clock without Navigation System: Notes

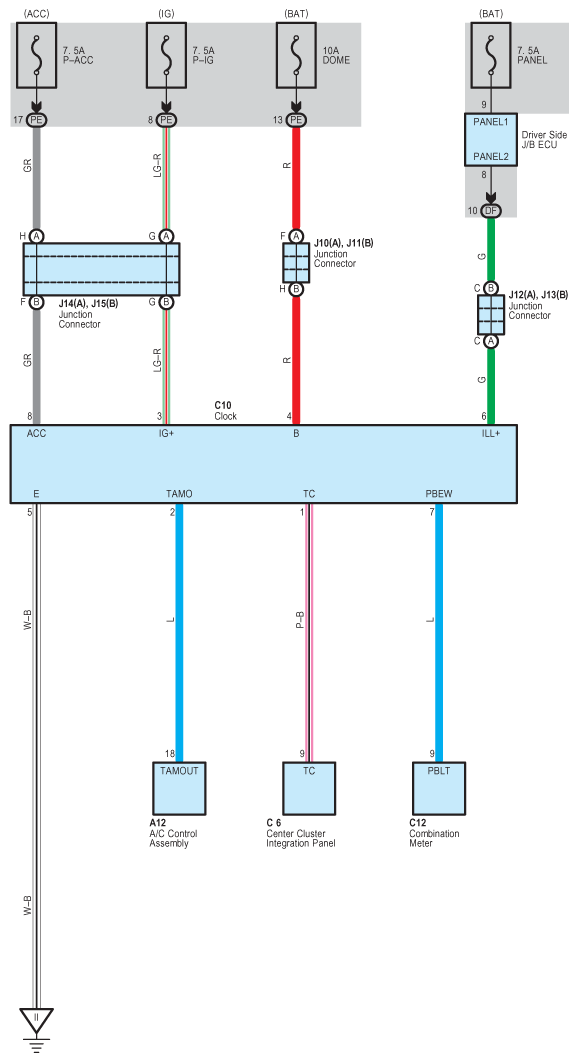

Fig 1: Clock Without Navigation System Wiring Diagram

G08913913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
