Mirror Heater: Notes

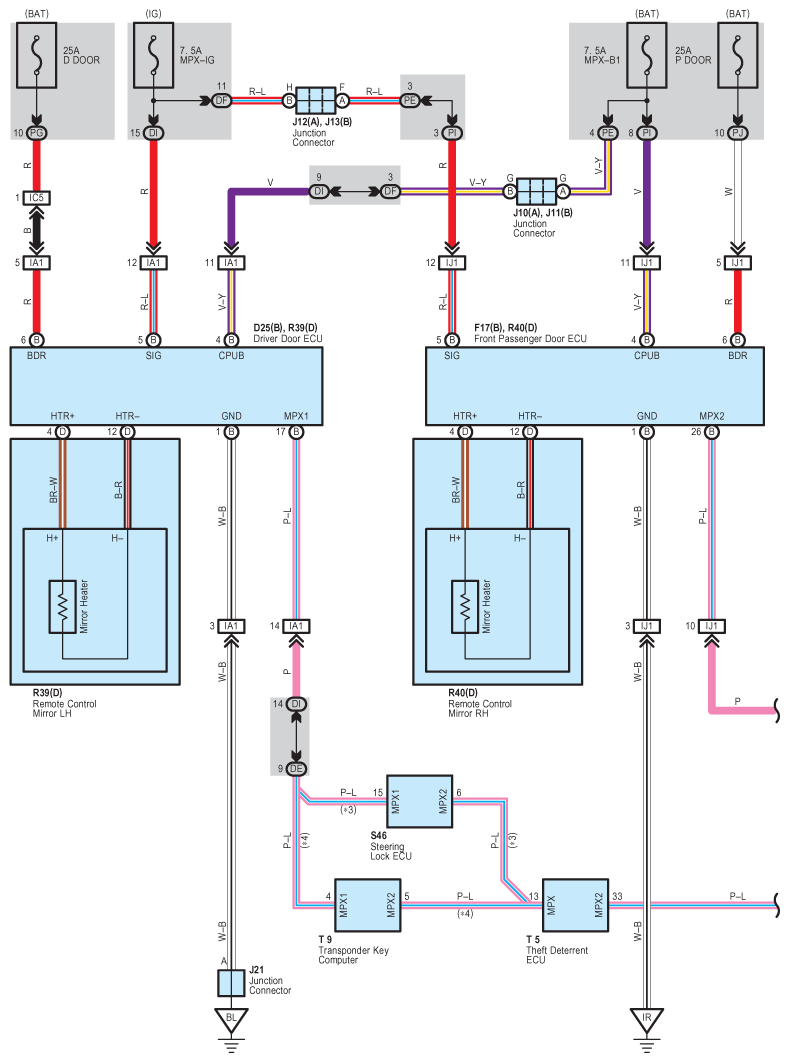

Fig 1: Mirror Heater System Wiring Diagram (1 Of 2)
G08913827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Mirror Heater System Wiring Diagram (2 Of 2)
G08913828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
