Multiplex Communication System - CAN Bus: Notes

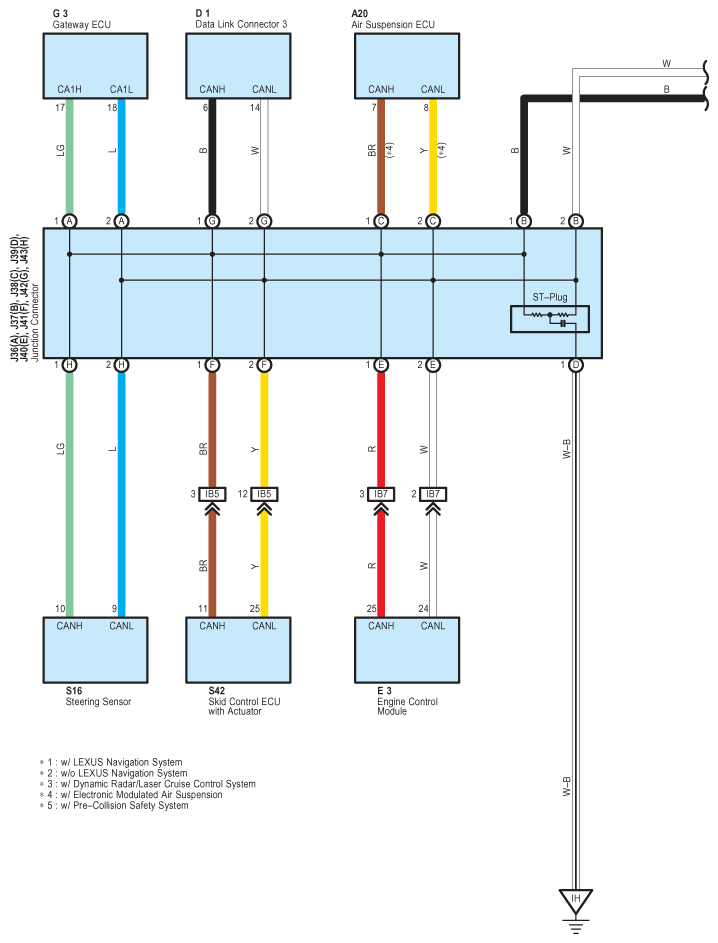

Fig 1: Multiplex Communication System - CAN Bus System Wiring Diagram (1 Of 2)
G08913695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

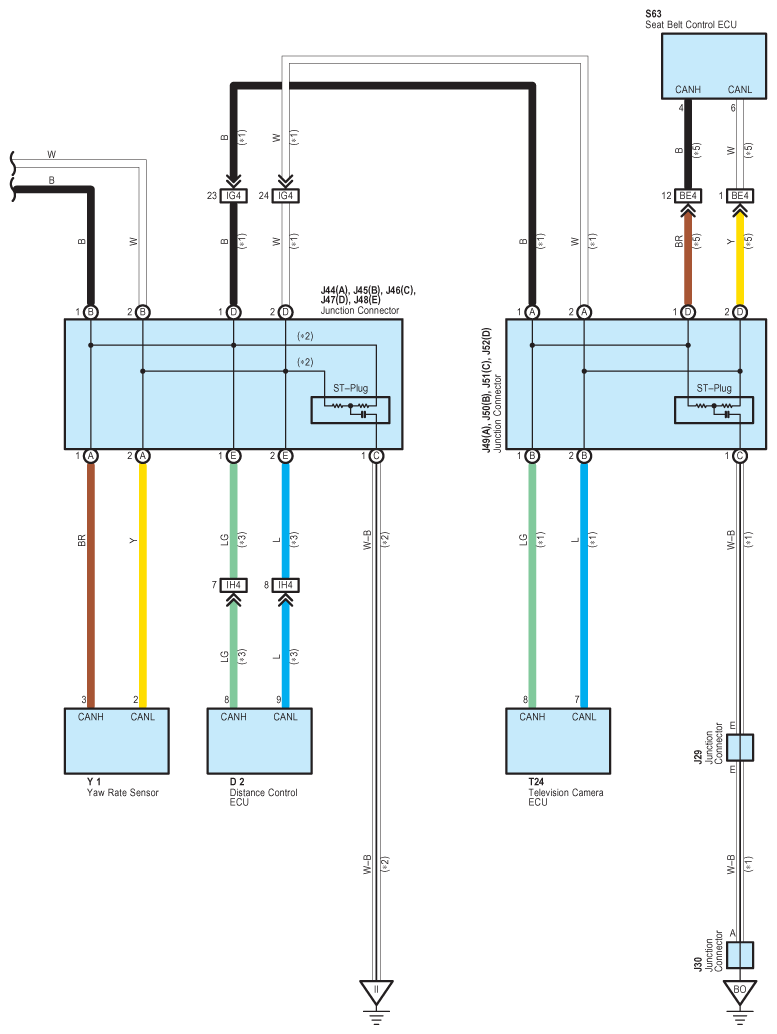

Fig 2: Multiplex Communication System - CAN Bus System Wiring Diagram (2 Of 2)
G08913696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
