Fan ASSY: Components

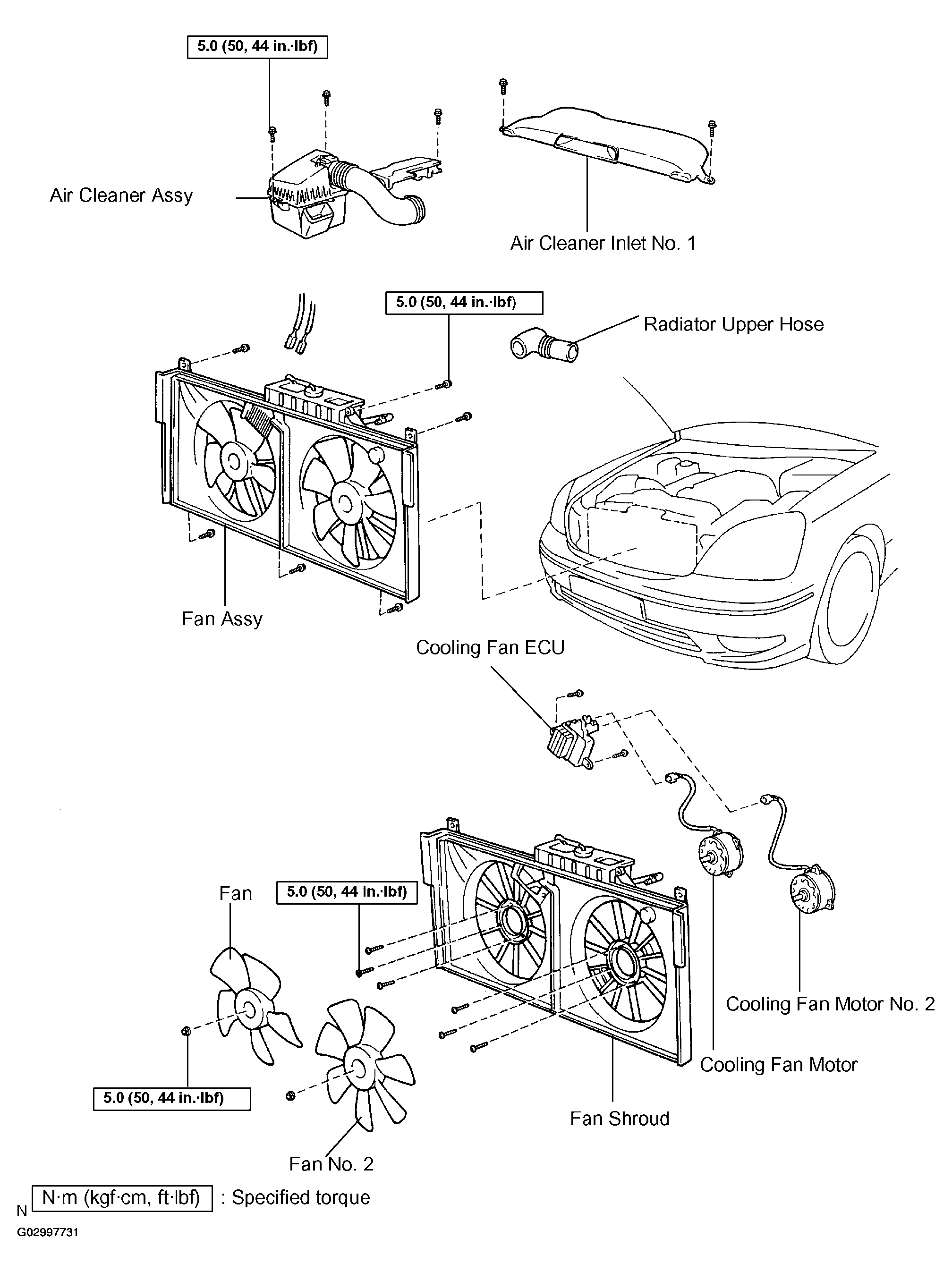

Fig 1: Identifying Fan Assy And Component
G02997731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
