SFI System
>>
System Diagram
System Diagram

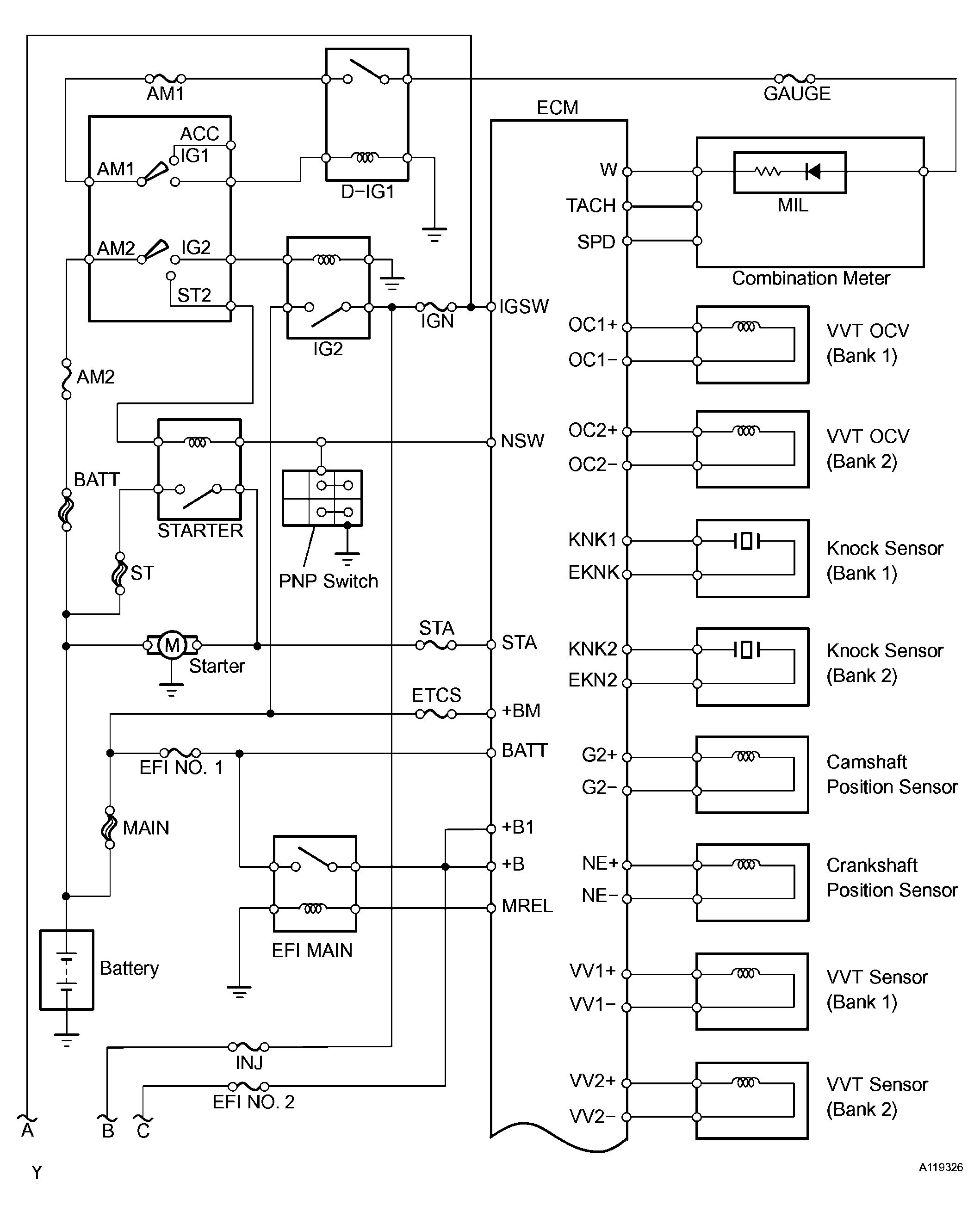

Fig 1: System Diagram - SFI System (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

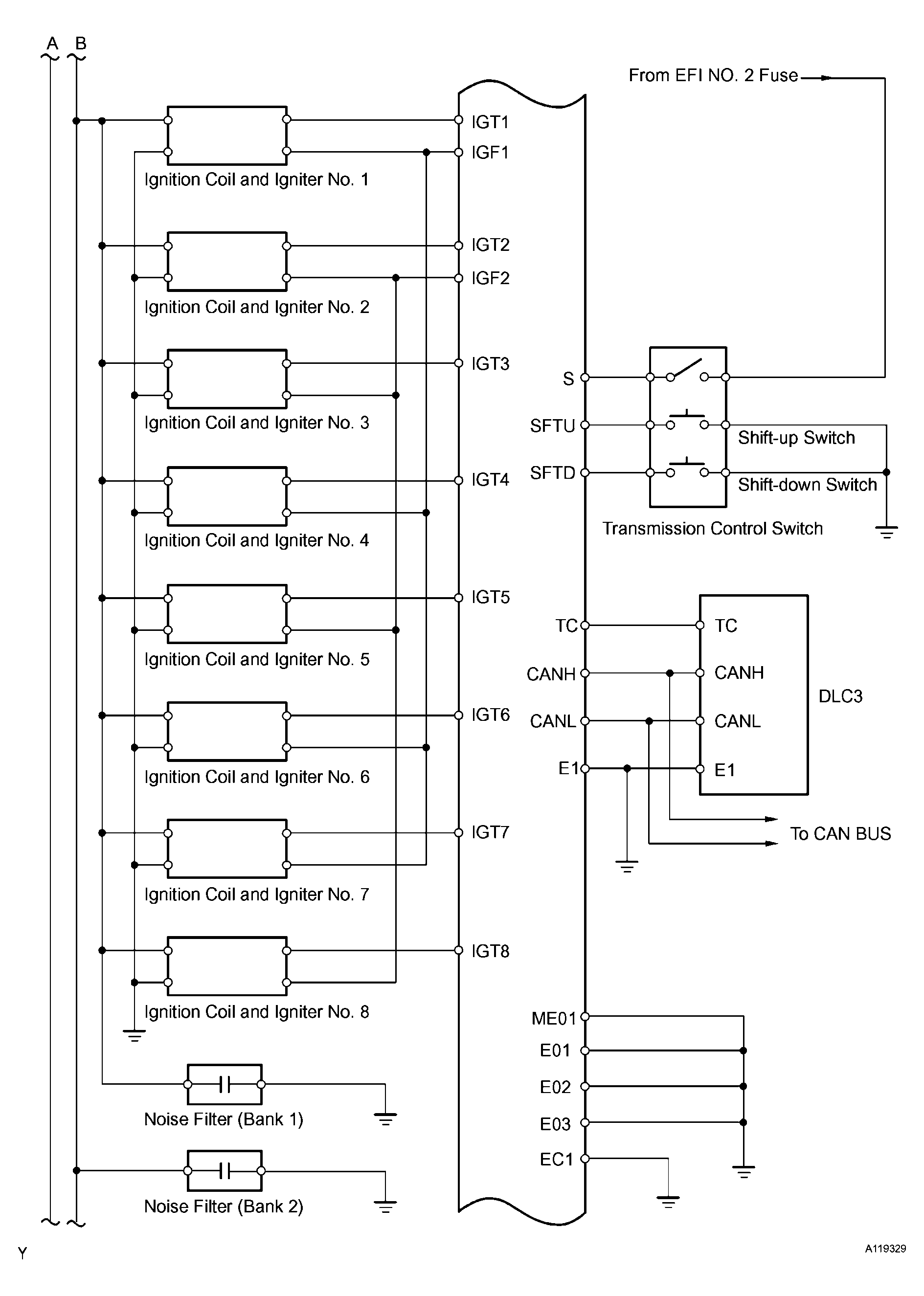

Fig 2: System Diagram - SFI System (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

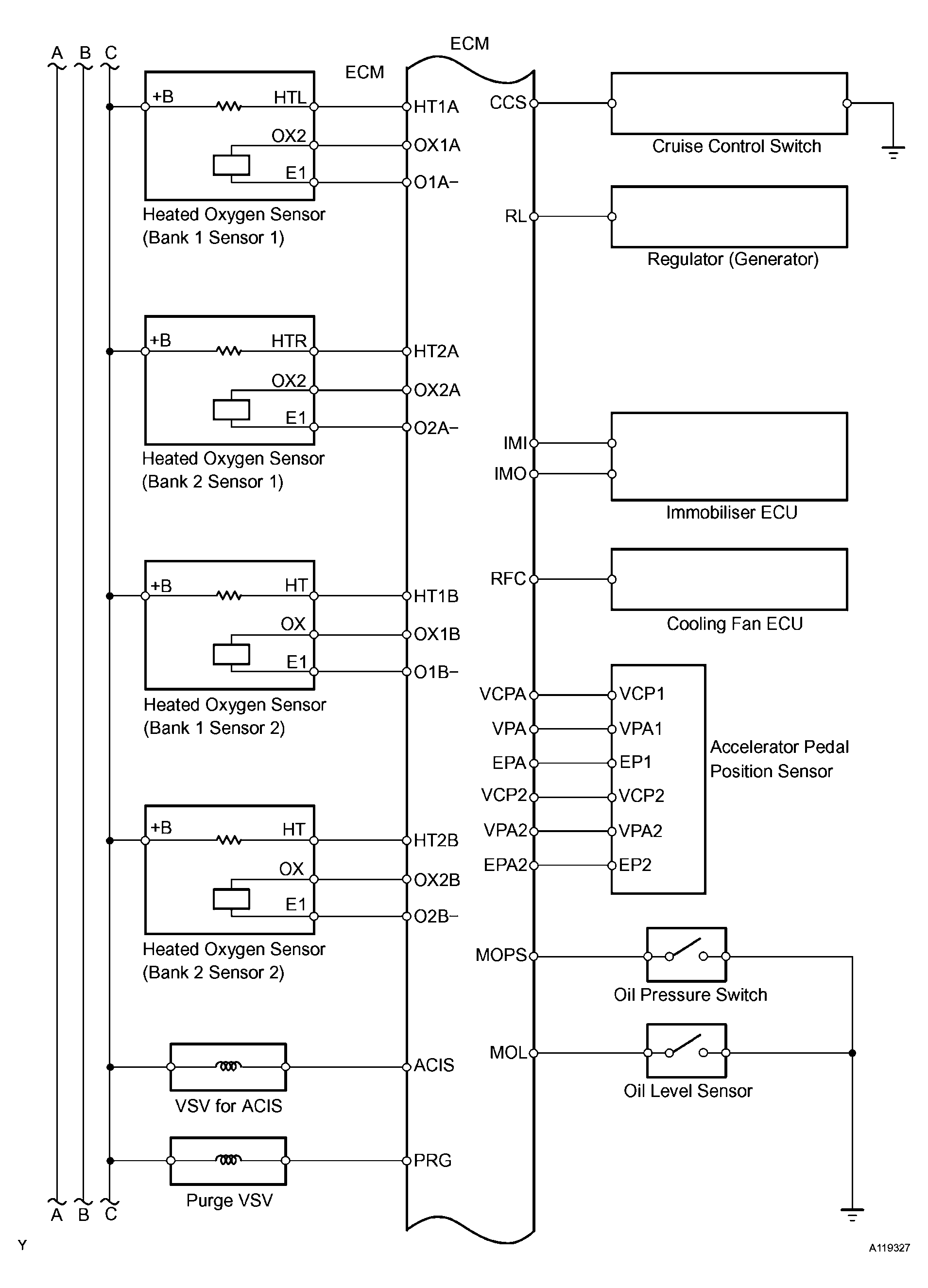

Fig 3: System Diagram - SFI System (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

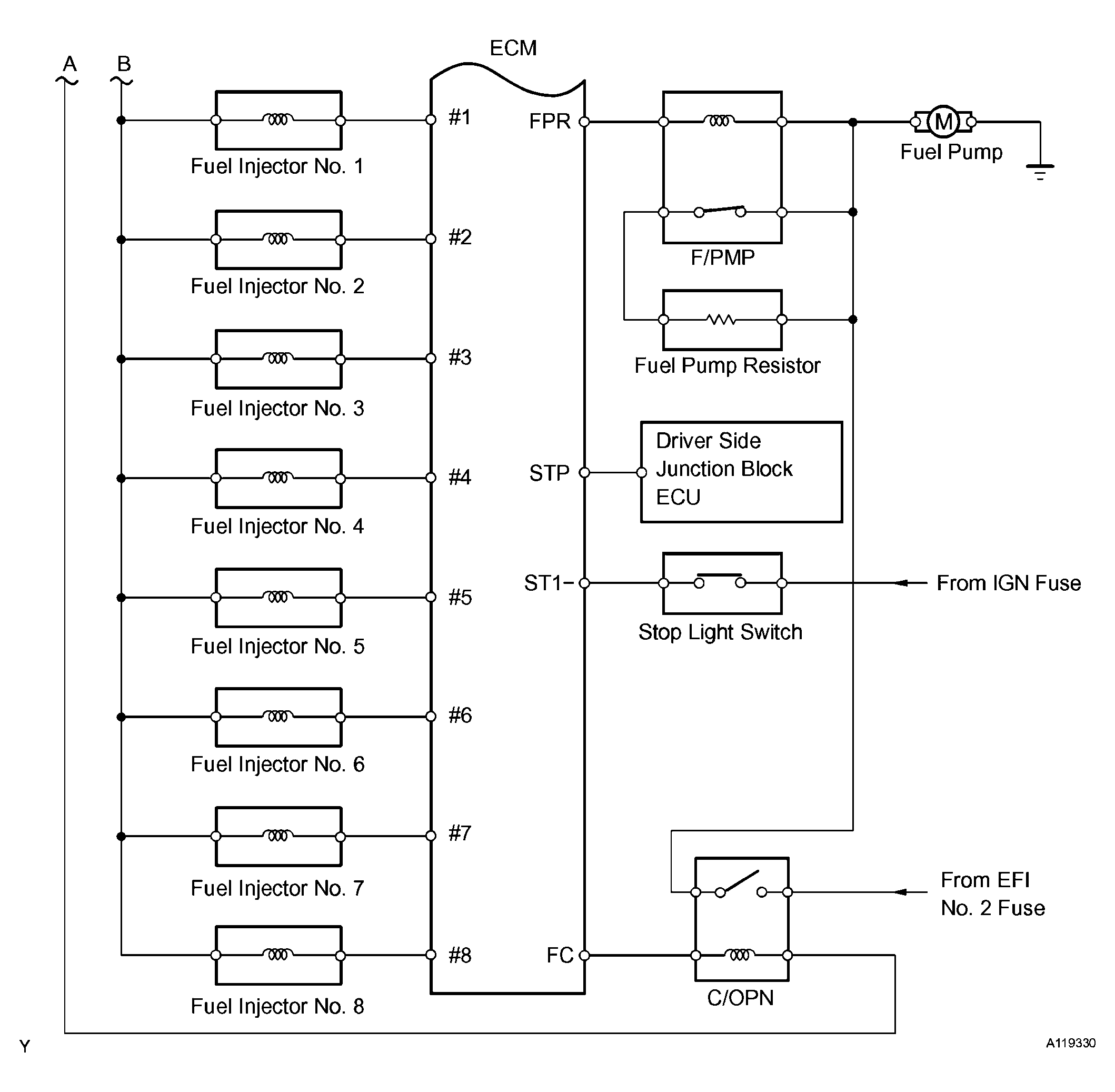

Fig 4: System Diagram - SFI System (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

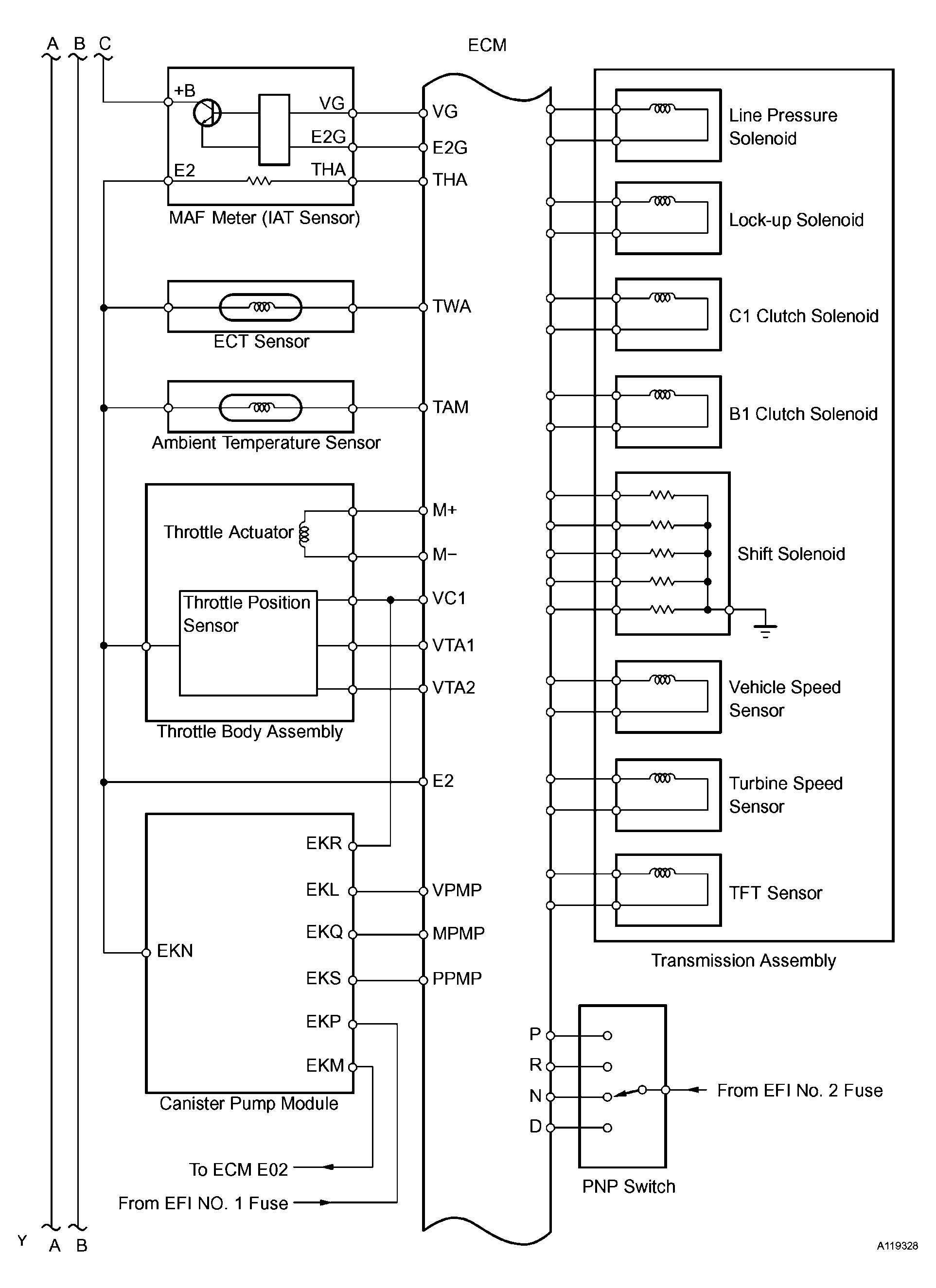

Fig 5: System Diagram - SFI System (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
