Front Speed Sensor: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
     CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT WHEEL
  3. REMOVE FRONT SPEED SENSOR LH
     1. Disconnect the speed sensor connector.
     2. Remove the resin clip and 4 clamp bolts holding the sensor harness from the steering knuckle and upper arm.

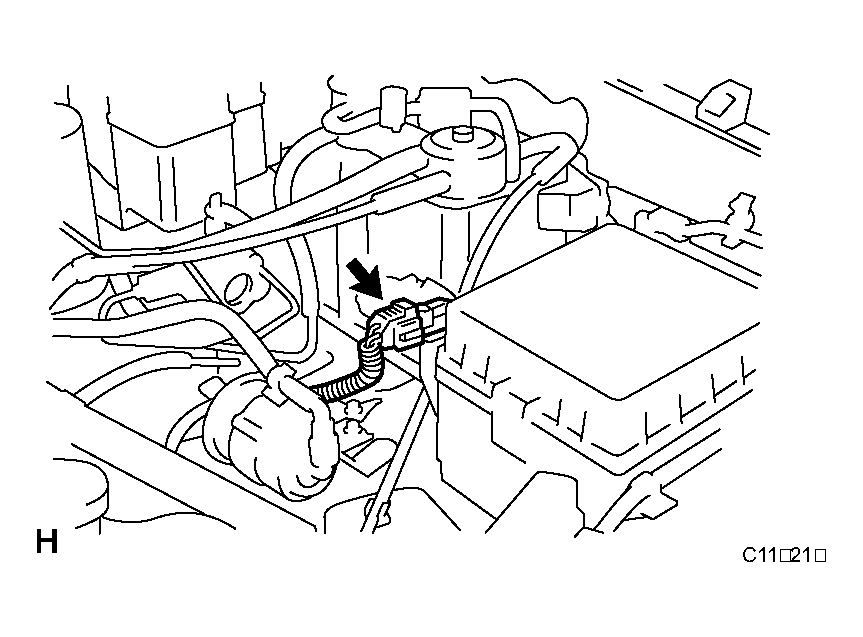

        Fig 1: Identifying Speed Sensor Connector

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
     3. Remove the bolt and speed sensor to the steering knuckle.
  NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

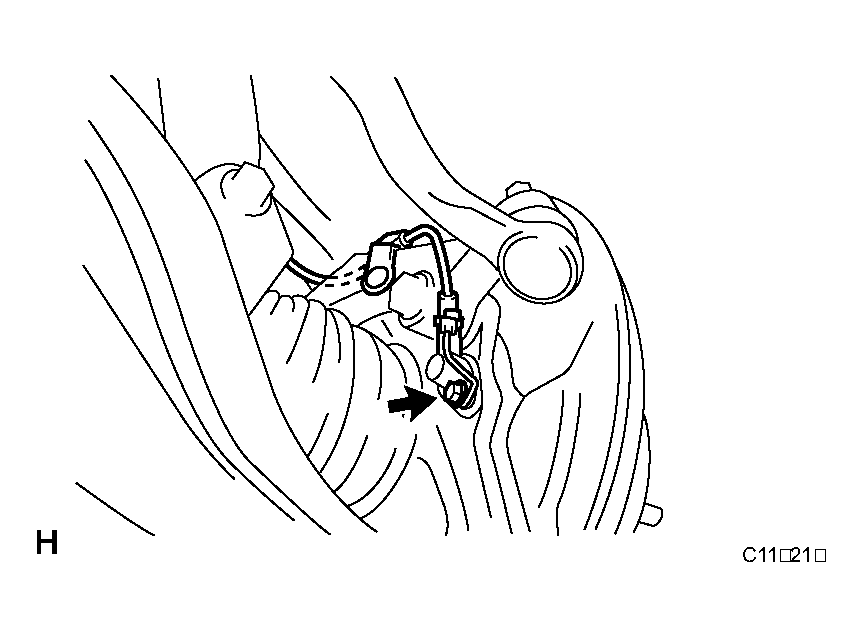

  Fig 2: Identifying Bolt Of Speed Sensor

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
