Cruise Control: Notes

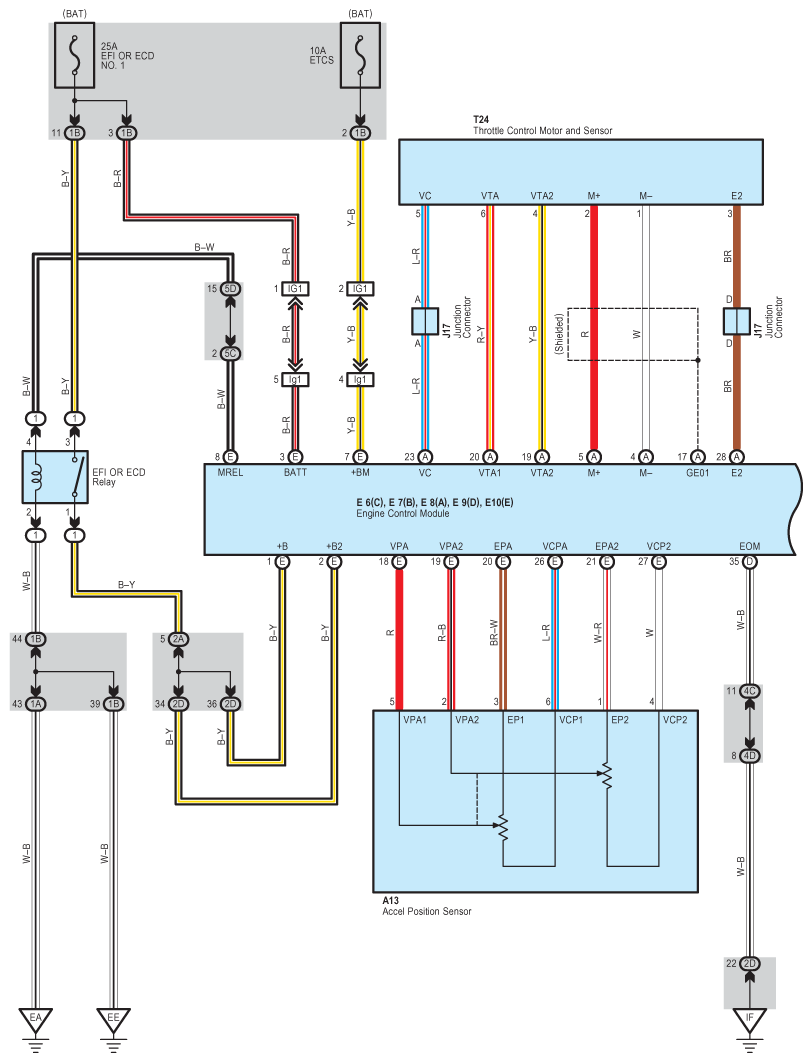

Fig 1: Cruise Control - Wiring Diagram (1 Of 3)
G08928164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

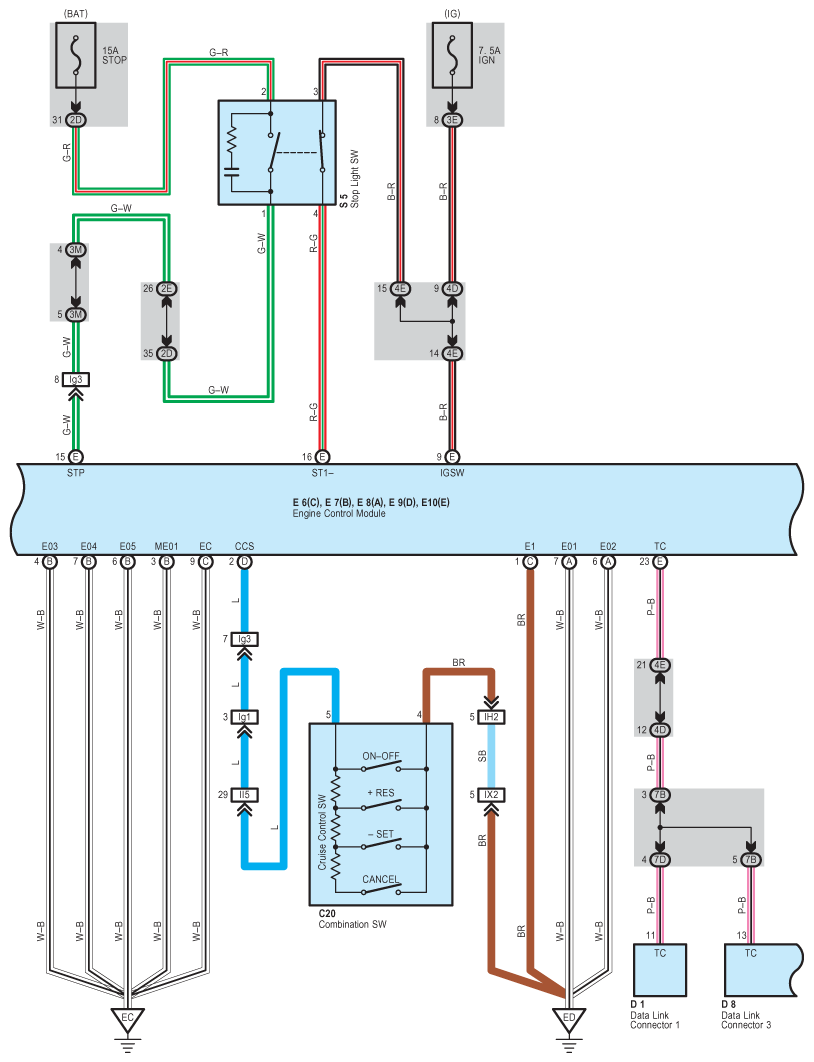

Fig 2: Cruise Control - Wiring Diagram (2 Of 3)
G08928165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

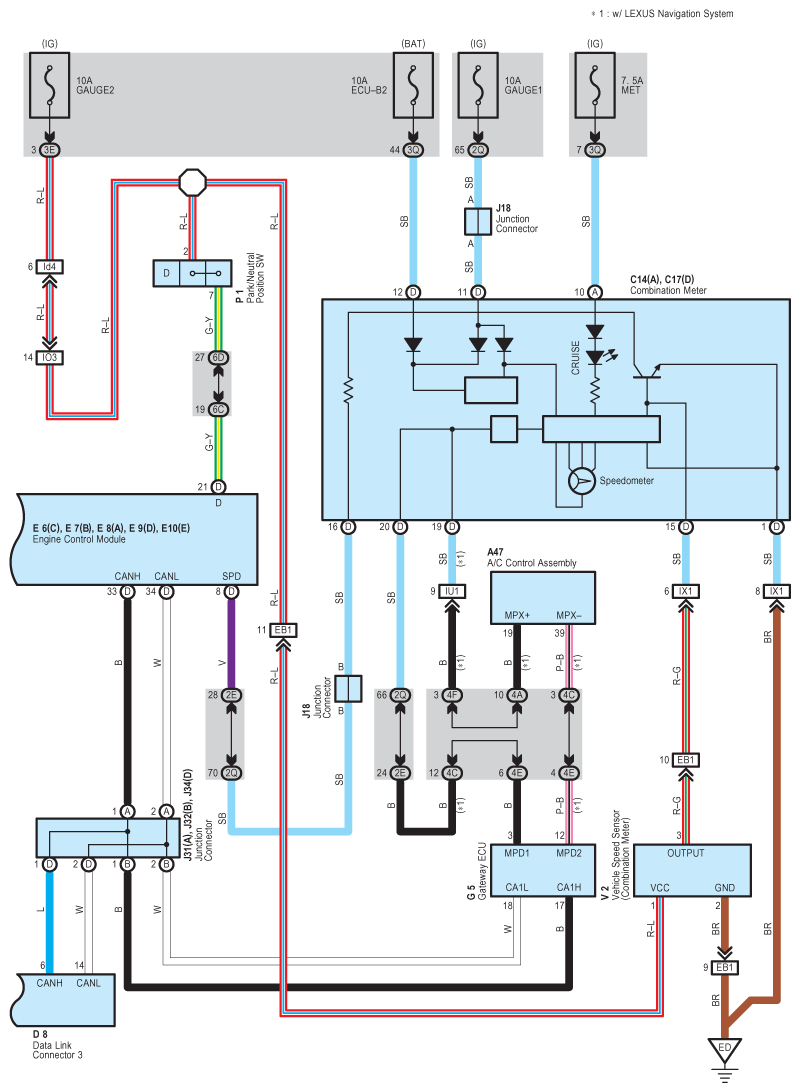

Fig 3: Cruise Control - Wiring Diagram (3 Of 3)
G08928166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
